Details
Sunmoon ER14335 Li-SOCl2 3.6V lithium primary battery Lithium battery 1650mAh smart water meter electric meter industrial control equipment, etc.
Description
• High Energy Density: Over 620wh/kg[highest among all the chemical batteries]
• Open Circuit Voltage: ≥3.65V, operating voltage ranging from 3.3~3.6V
• Wide Operating Temperature Range: -55°C+85°C
• Long Storage Life: 8-10 years[Under normal room Temperature]
• Operation Characteristic: This series batteries are suitable to operate under long-term tiny current.The batteries are possessing stable operating voltage and safe.

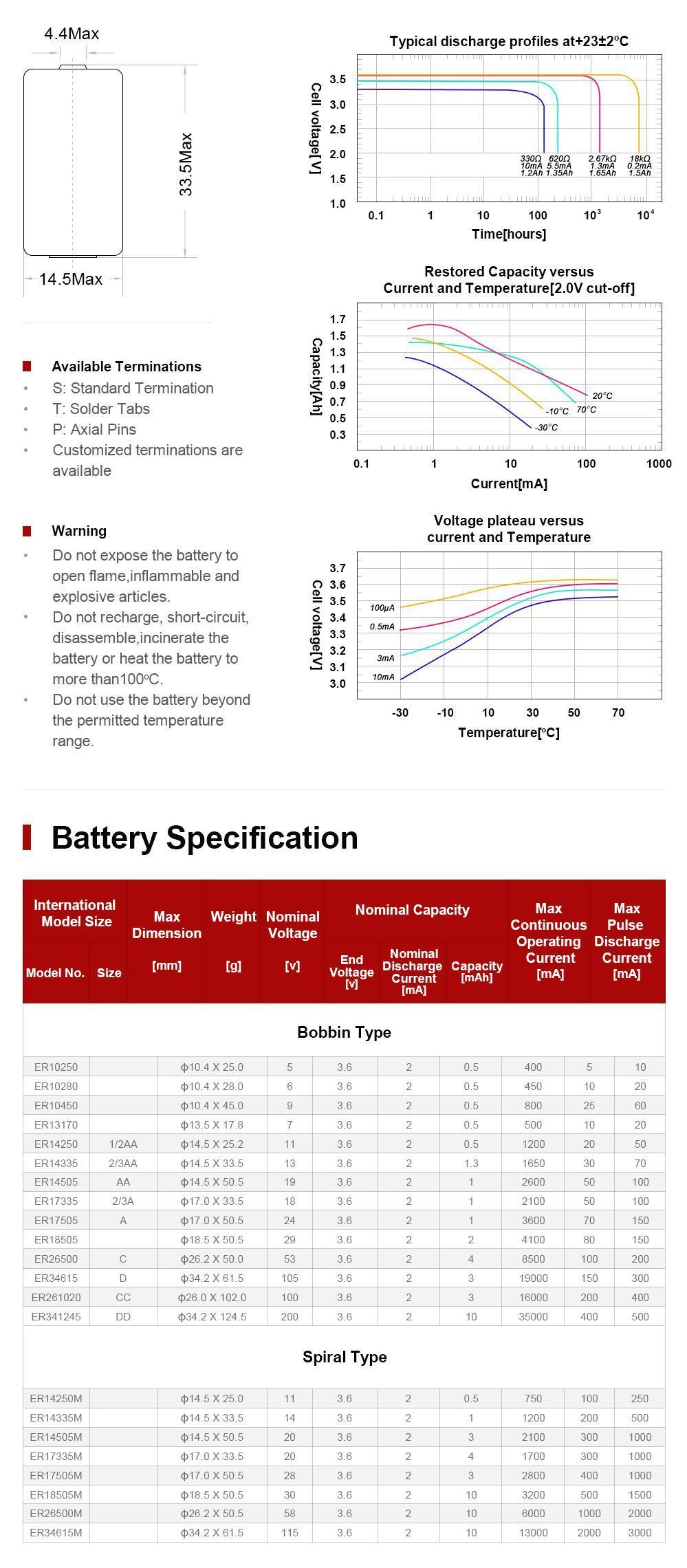

| Parameter | Specification |
| Model | ER14335 |
| Product type | LI/SOCl₂ |
| Rechargeable | No |
| Maximum Profile Size (mm) | φ14.5 × 33.5 |
| Weight | 13g |
| Nominal capacity (mAh) | 1650 |
| Operating temperature range | -55℃~+85℃ |
| Nominal voltage (V) | 3.6 |
| Discharge cut-off voltage (V) | 2 |
| Rated discharge current (mA) | 1.3 |
| Maximum continuous discharge current (mA) | 30 |
| Maximum Pulse Discharge current (mA) | 70 |
• IoT
• Alarms and Security Systems
• Utility Meters/AMR&AMI
• Automotive Telematics
• Storage and Tracking Devices
• Military Equipment
• R&D Instrument
• Sensor
• Oil Drilling
