Details

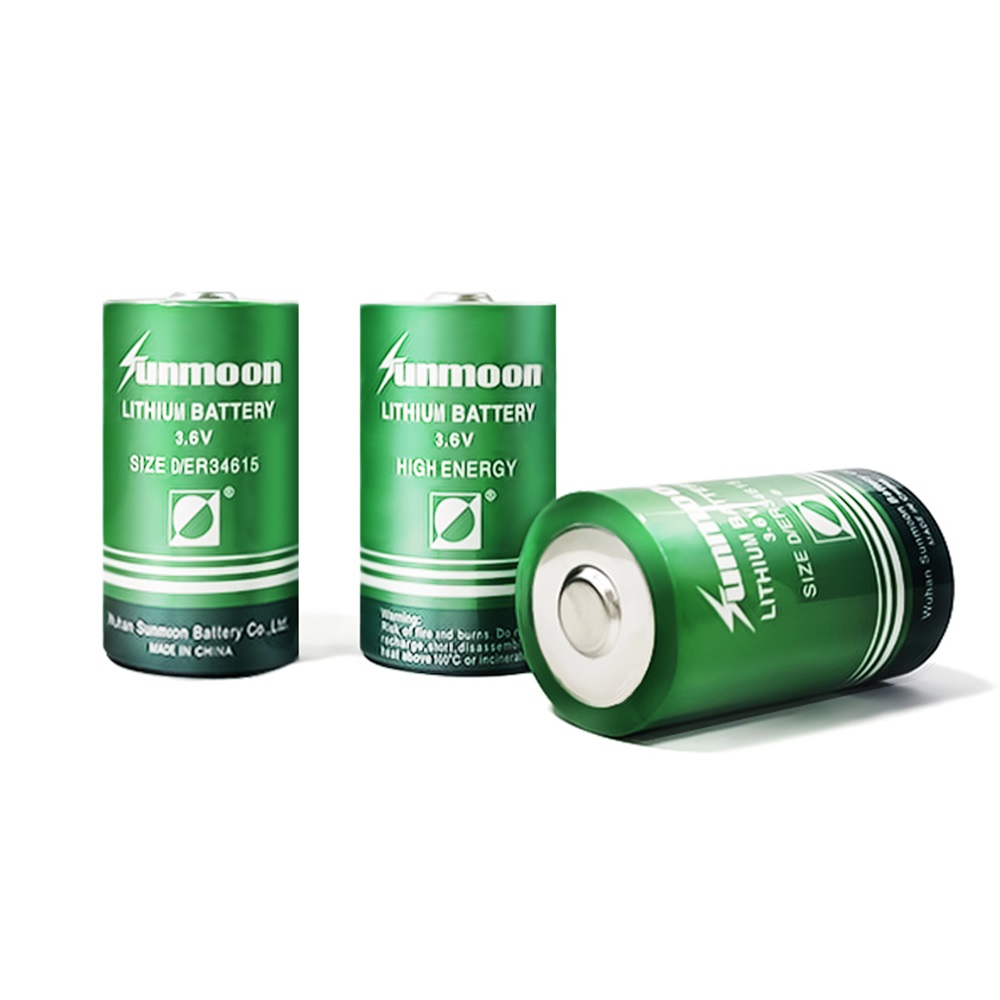

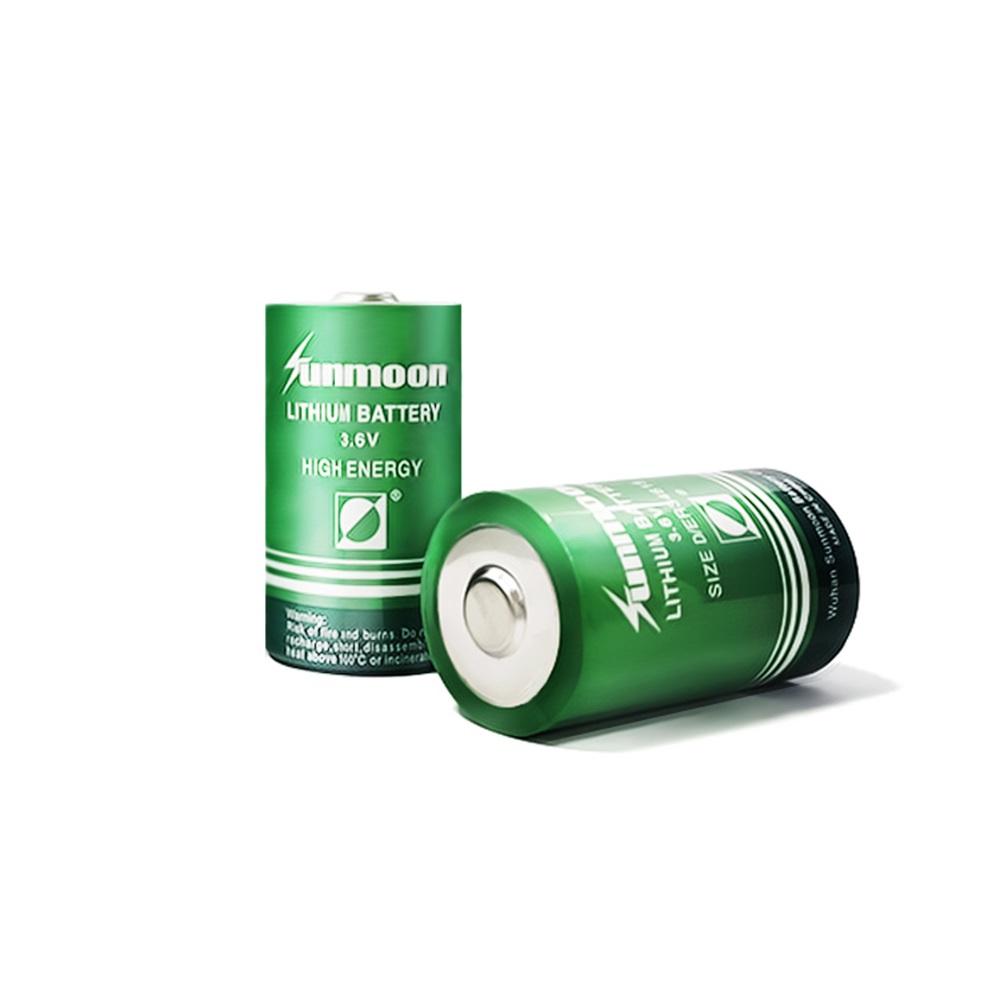

ER34615 3.6V 19000mAh lithium thionyl chloride battery bobbin type has this energy density, low self-discharge rate, and long service life to meet your continuous and stable power needs
Description
High Energy Density: Over 620wh/kg[highest among all the chemical batteries]
Open Circuit Voltage: ≥3.65V, operating voltage ranging from 3.3~3.6V
Wide Operating Temperature Range: -55℃+85℃
Long Storage Life: 8-10 years[Under normal room Temperature]

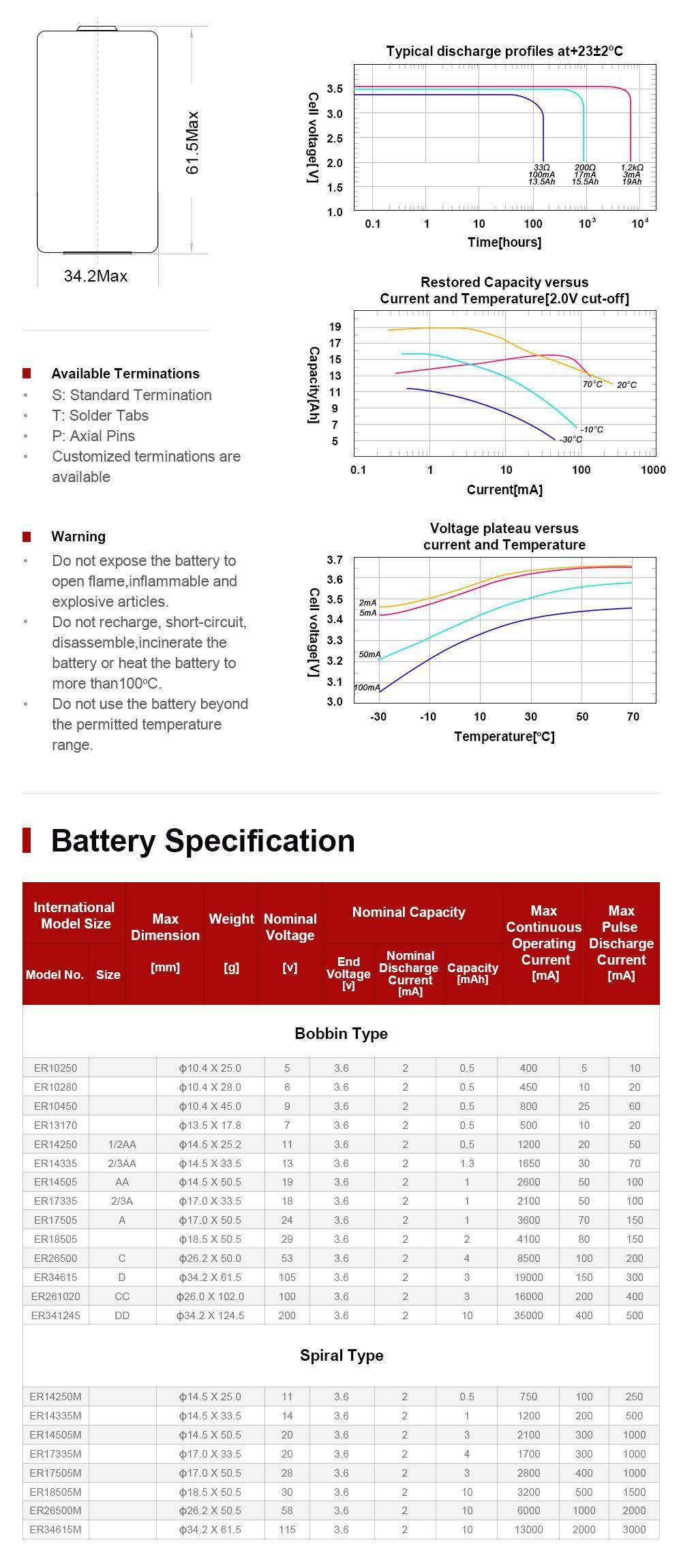

| Model | ER34615 |
| Product model | LI/SOCl₂ ER34615 |
| Battery charging | No |

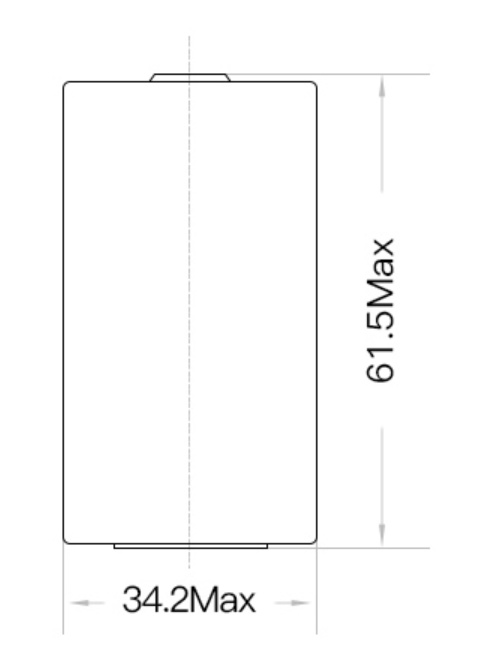

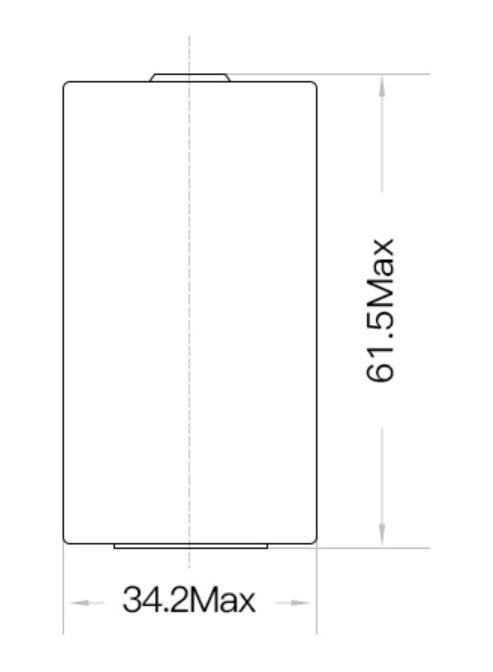

| Maximum Profile Size(mm) | φ34.2X61.5 |
| Weight | 105g |
| Nominal capacity(mAh) | 19000 |
| Operating temperature range | -55℃~+85℃ |
| Nominal voltage(V) | 3.6 |
| Discharge cut-off voltage(V) | 2 |
| Maximum continuous current(mA) | 150 |
| Maximum Pulse Discharge current(mA) | 300 |
This series of batteries is suitable for operating under long-term tiny； currents. The batteries possess stable operating voltage and are safe.
LoT, Alarms and Security Systems, Utility Meters/AMR&AMI, Automotive Telematics, Storage and Tracking Devices, Military Equipment, R&D Instrument, Sensor, Oil Drilling
