Details
Lithium battery PMX150CC Large capacity high rate high temperature resistant cylindrical lithium battery.Suitable for military communications, oceanographic buoys and gliders, tracking systems, sensor systems, pipeline inspection gauges,and more.
Description
• Primary chemistry (non-rechargeable)
• High rate capability
• Advanced spiral-wound technology
• Stainless steel container
• Hermetic glass-to-metal sealing
• Wide operating temperature range as low as -20oC and up to +150oC
• Low self discharge rate (3% per year at 25oC)
• Restricted for transportation (Class 9)
• Custom terminations available
| Parameter | Specification |
| Open Circuit Voltage (25℃) | 3.9V |
| Rated Discharge Current | 50mA |
| Rated Capacity | 13Ah |
| Maximum Continuous Current | 500mA |
| Cell Diameter (nominal) | 24.8mm (0.975 in.) |
| Cell Length (nominal) | 104.1mm (4.10 in.) |
| Cell Weight | 101g |
| Lithium Weight | 4.2g |
| Safety Fuse | 3A |
| Self Discharge | 3% per year at 25℃ |
| Operating Temperature | -20℃to+150℃ -4℉to+302℉ |

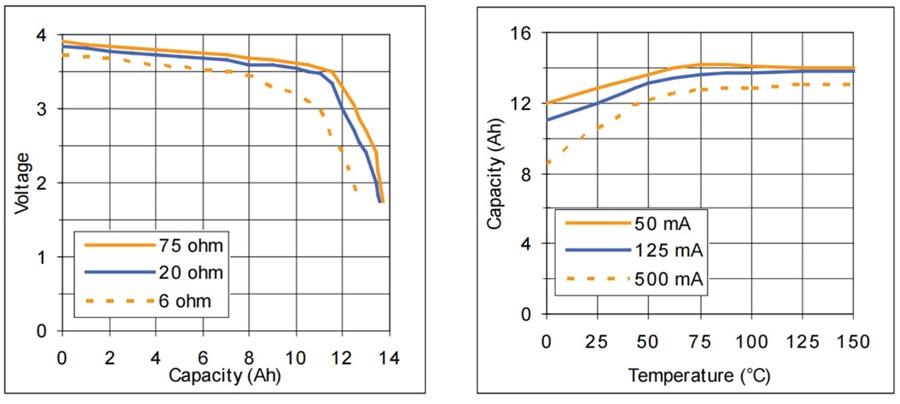

150℃ discharge
※ Capacity as a function of current and temperature
• Military communications
• Oceanographic buoys and gliders
• Tracking systems
• Sensor systems
• Pipeline inspection gauges
• Beacons, transponders and receivers
• Seismic surveying birds
