3.65V 2.6Ah Cylindrical Ternary Lithium Ion Battery Cell

  • 3.65V 2.6Ah Cylindrical Ternary Lithium Ion Battery Cell
  • 3.65V 2.6Ah Cylindrical Ternary Lithium Ion Battery Cell
  • 3.65V 2.6Ah Cylindrical Ternary Lithium Ion Battery Cell
  • 3.65V 2.6Ah Cylindrical Ternary Lithium Ion Battery Cell

Details

The 3.65V 2.6Ah cylindrical ternary lithium battery features high quick charge, high energy density, and etc.It is applied in electric four-wheeler, sweeping robot, and etc.

Description

The 3.65V 2.6Ah cylindrical ternary lithium battery features high quick charge, high energy density, high rate, high low-temperature performance advantage, extensive application and high safety. It is applied in electric four-wheeler, sweeping robot, portable energy storage and etc.

Product Feature

1.High quick charge

2.High energy density

3.High rate

4.High low-temperature performance advantage

5.High safety

6.Extensive application

Specification

Item

Specification

Charge Voltage

4.20V

Nominal Voltage

3.65V@0.2C

Maximum Continues Charge Current (Not   for cycle life)

1C(2600mA),25℃

Maximum Continues Charge Current

0℃≤T≤5℃ 0.1C(260mA)

5℃<T≤15℃ 0.2C(520mA)

15℃<T≤45℃ 0.5C(1300mA)

Maximum Continuous Discharge Current(Not for Cycle life)

3.0C(7800mA),25℃



Operating Environmental Temperature

Charge 0℃~45℃

Discharge -20℃~60℃

 Storage Temperature※

(Shipping state,Recovery capacity≥80%)

1 month -20℃~60℃

3 months -20℃~45℃

12 months -20℃~25℃

Weight of Bare Cell

47g(Max)

Nominal capacity

2600mAh(0.2C)

Dimension

Diameter 18.3mm±0.2mm

     Height   64.9mm±0.3mm

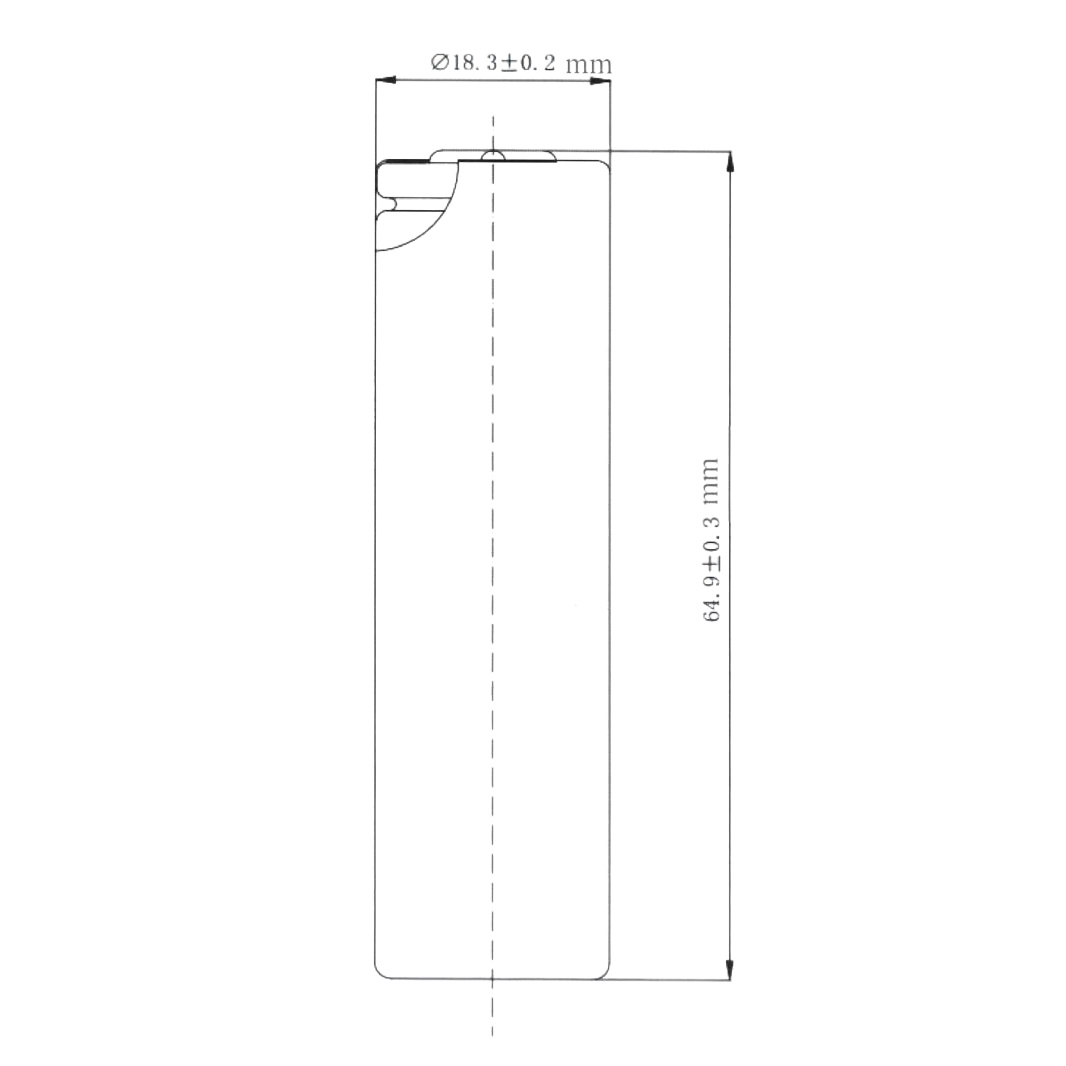

Dimension


3.65V 2.6Ah Dimension

Application

It is applied in electric four-wheeler, electric two-wheeler, power tool, vacuum cleaner, sweeping robot, portable energy storage, garden tool and quick charge power bank.



 3.65V 2.6Ah.jpg
