Details
CALB 3.7V 58Ah Lithium nickel manganese cobalt oxide battery (NMC 811) Ternary Prismatic Cell,CE,UL,MSDS,and UN38.3 have been approved.It was already passed all safety tests(overcharge,over-discharge,over-temperature,needle puncture tests,etc.).
Description
CALB 3.7V 58Ah Lithium nickel manganese cobalt oxide battery(NMC 811) Ternary Prismatic Cell, CE, UL, MSDS, and UN38.3 have been approved.(L148N58A) 3.7V 58Ah NMC battery cells were already passed all safety tests (overcharge, over-discharge, over-temperature, short circuit, drop, crush, needle puncture tests, etc.).
Item | Parameter |
Nominal Capacity | 58Ah @1C |
Minimal Capacity | 58Ah @1C |
Internal Resistance | 0.60~0.80mΩ |
Work Voltage | 2.75-4.35V(T≥0℃) |
Charging Time | ~4h |
Recommended SOC Window | SOC:5%~97% |
Operating Temperature | Charging Temperature:-20~55℃ |
Weight | 926±20g |
Shell Material | Aluminium alloy |
Cycle Life | ≥2000 cycles |

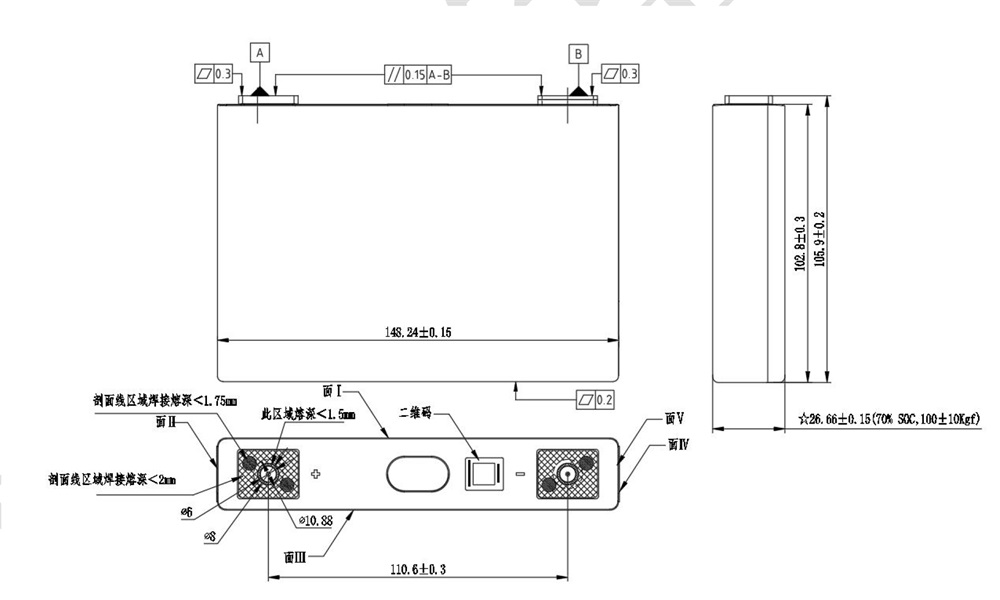

Dimension | 148.24±0.15(W)*26.66±0.15(T)*105.9±0.2mm |
