Details

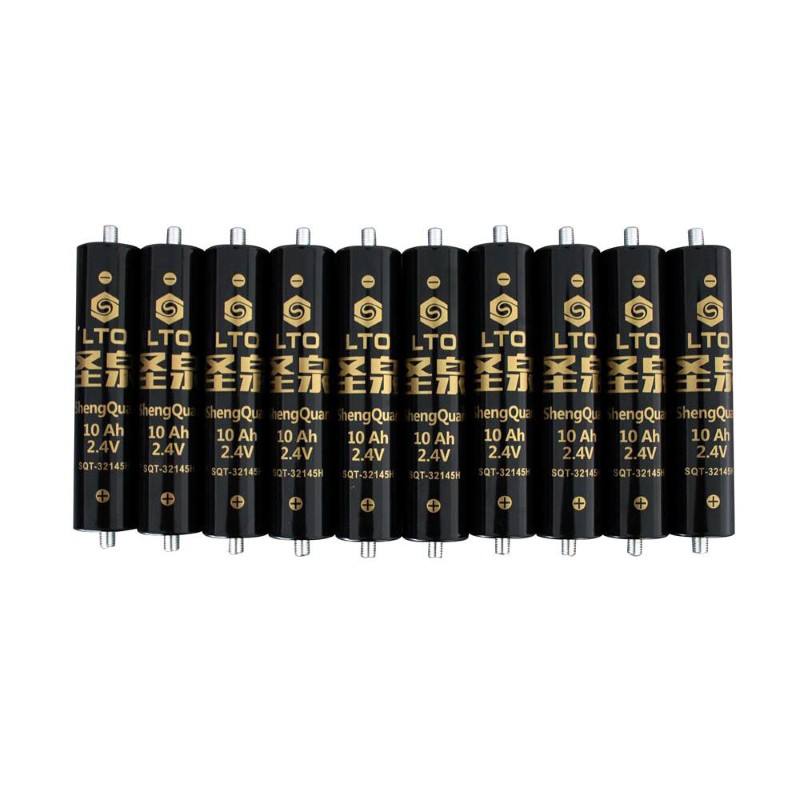

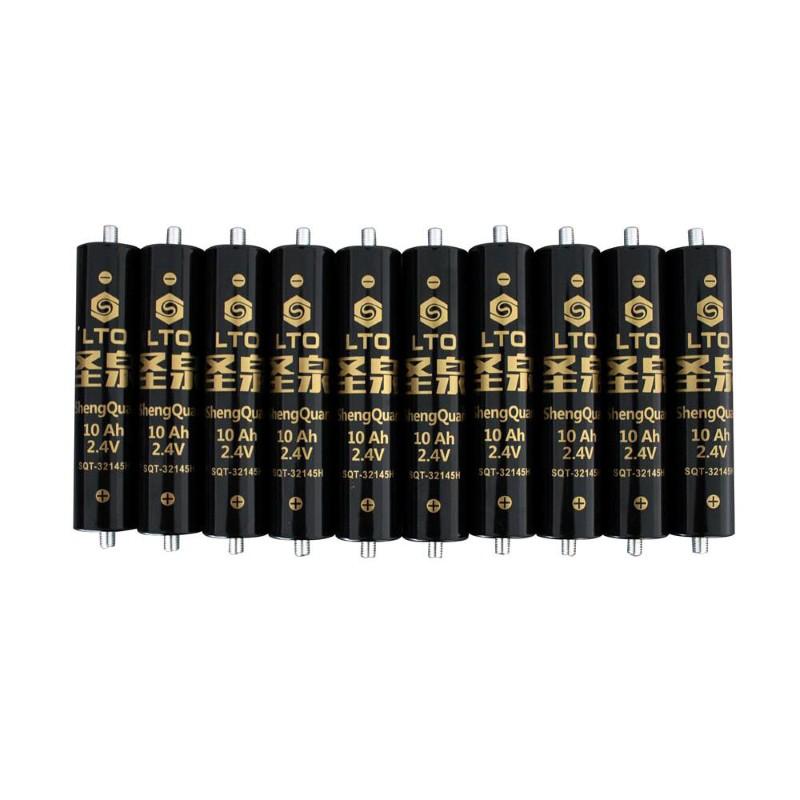

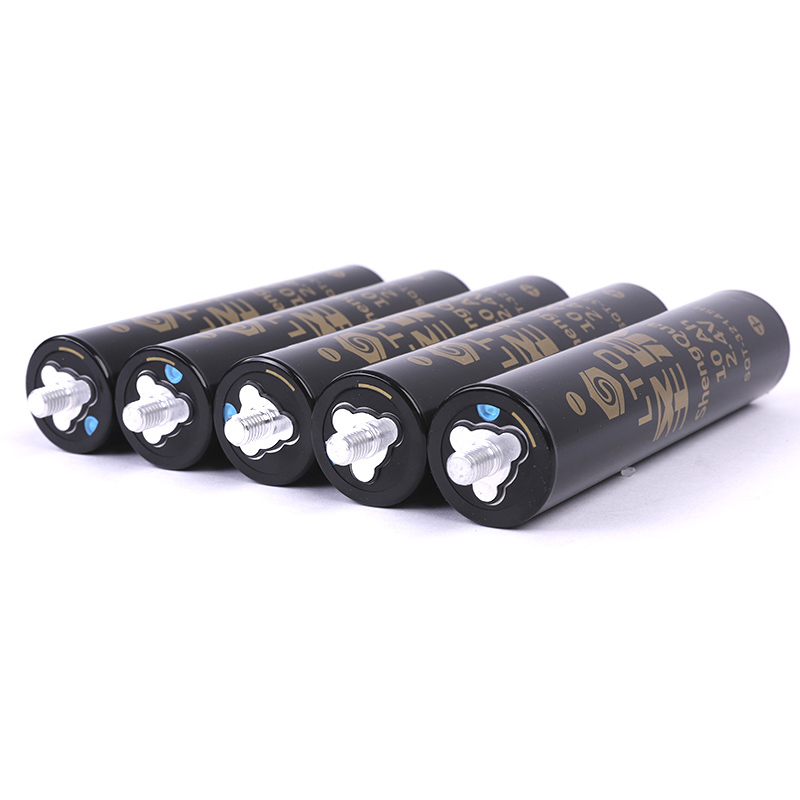

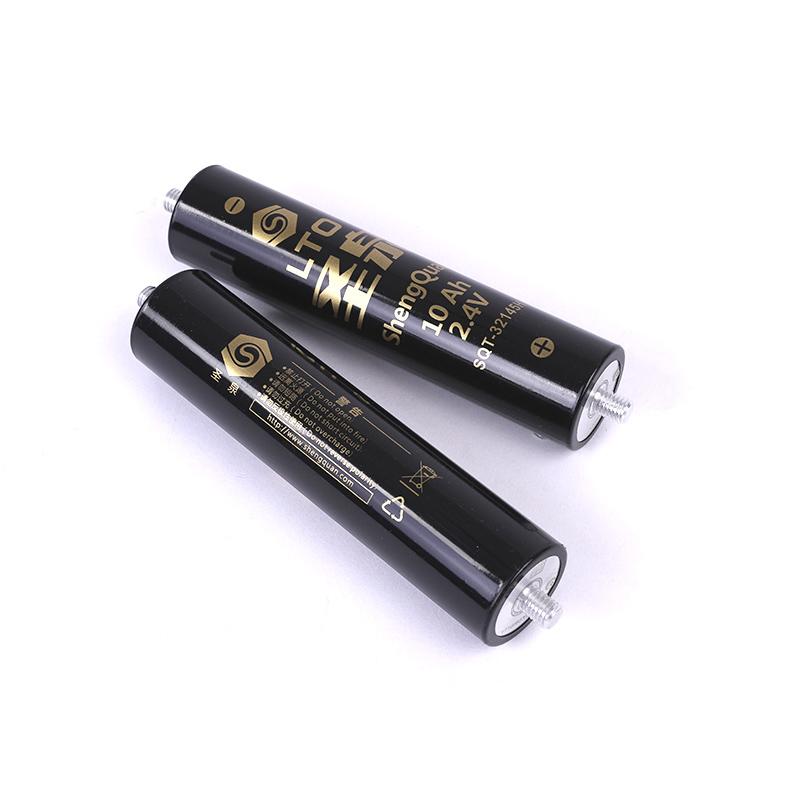

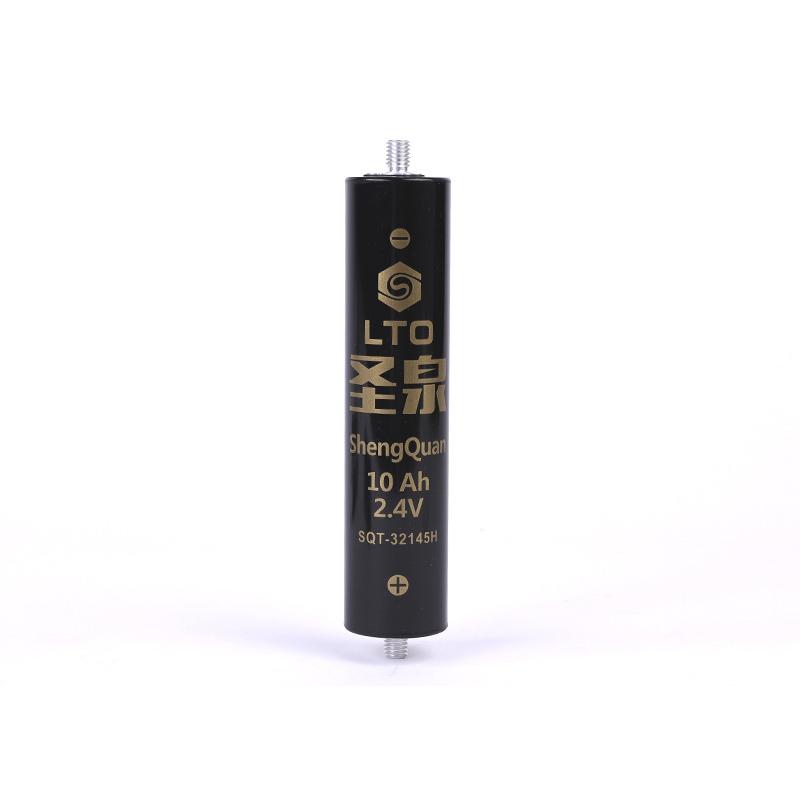

Shengquan 2.4V 10Ah lithium titanate cylindrical lto battery cell with 20C discharge rate and more than 20000 times cycle life.
Description
Lithium titanate battery is a kind of lithium-ion battery anode material - lithium titanate. It can be used to form 2.4V or 1.9V lithium-ion secondary battery with lithium manganate, ternary materials or lithium iron phosphate and other cathode materials. In addition, it can also be used as a positive electrode to form a 1.5V lithium secondary battery with metal lithium or lithium alloy anode. Because of its high safety, high stability, long life and environmental protection. It can be predicted that in 2-3 years, lithium titanate will become the anode material of the new generation lithium-ion battery, and will be widely used in new energy vehicles, electric motorcycles and applications requiring high safety, high stability and long-term. The operating voltage of lto cells is 2.4V, the maximum voltage is 2.8V, and the charging current is greater than 2C (i.e. the current twice the capacity of the battery).
High safety: no combustion, no explosion
High rate: fast charge and discharge 20C
Long working life: more than 30000 cycles
Wide working temperature range: -40~60 degree centigrade
Item | Parameters |
Nominal Capacity | 10Ah |
Nominal Voltage | 2.4V |
Internal Impedance | ≤0.8mΩ |
Standard Charge Cut-off Voltage | 2.8V |
Standard Discharge Cut-off Voltage | 1.5V |
Maximum Continuous Charge Current | 4C (40A) |
Maximum Continuous Discharge Current | 6C (60A) |
Maximum Pulse Charge/Discharge Current(10s) | 20C (200A) |
Operating Temperature Range | -40~60℃ |
Operating Humidity Range | Humidity: ≤85%RH |
Storage Temperature Range | -5℃~28℃ |
Weight | 285.0g±10g |

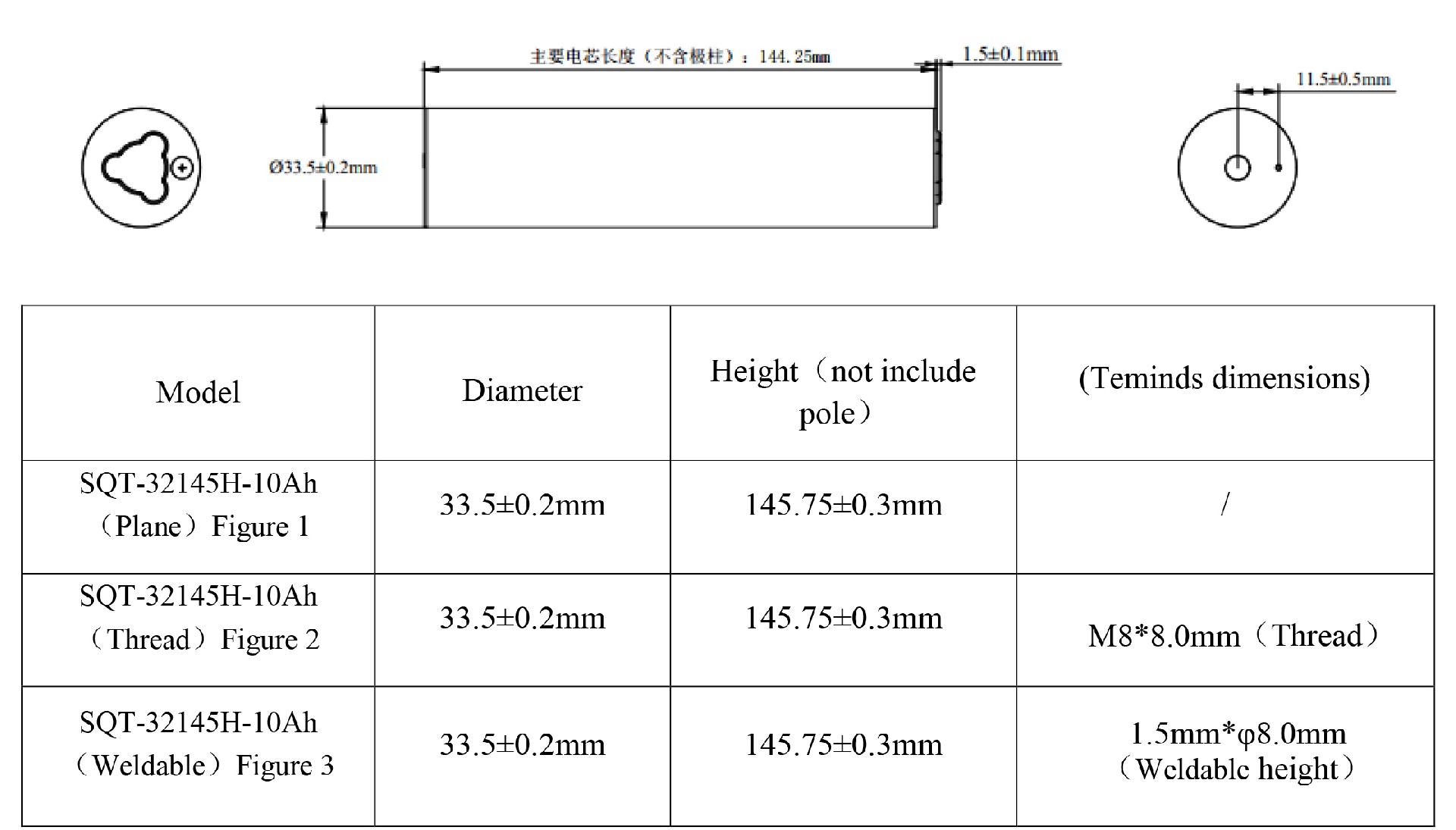

Dimension | 33.5*145.75mm |
Cycle Life | 20000times @80%DOD |
