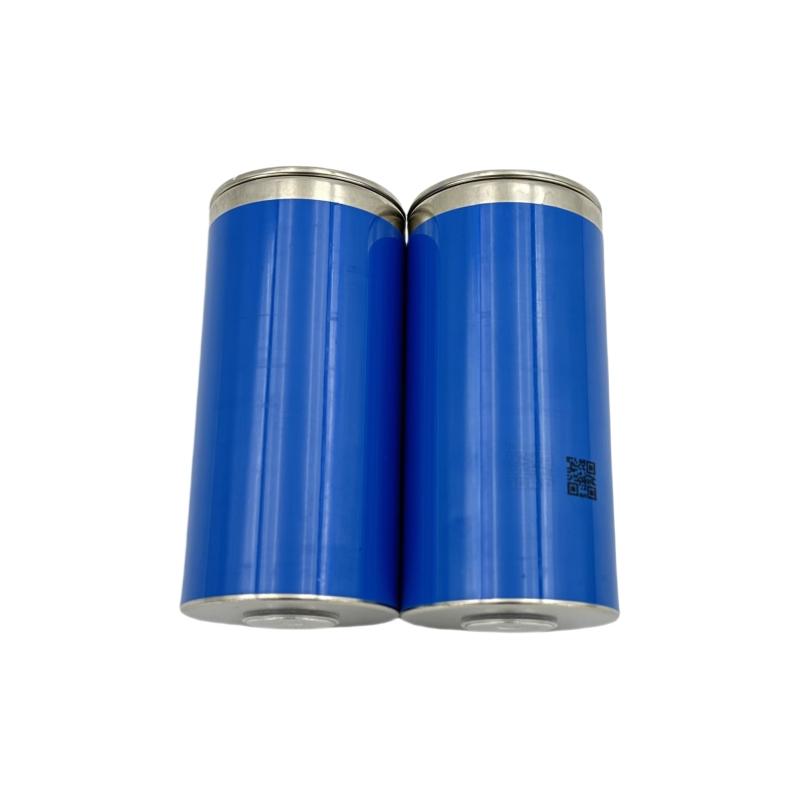

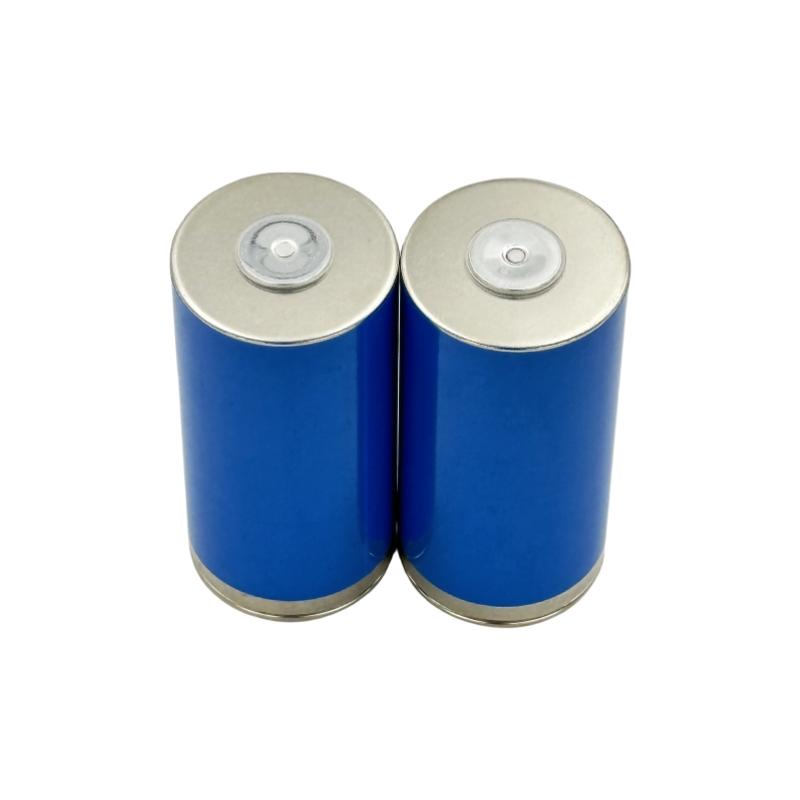

EVE 4695E 3.67V 30Ah Cylindrical Lithium-ion Battery Cell with 1000 Cycle Life

  • EVE 4695E 3.67V 30Ah Cylindrical Lithium-ion Battery
  • EVE 4695E 3.67V 30Ah Cylindrical Lithium-ion Battery
  • EVE 4695E 3.67V 30Ah Cylindrical Lithium-ion Battery
  • EVE 4695E 3.67V 30Ah Cylindrical Lithium-ion Battery

Details

EVE 4695E is a 3.67V voltage, 30Ah capacity, 1.46mΩ full-tab battery cell, with a maximum discharge current of 120A and a weight of 415g.

Description

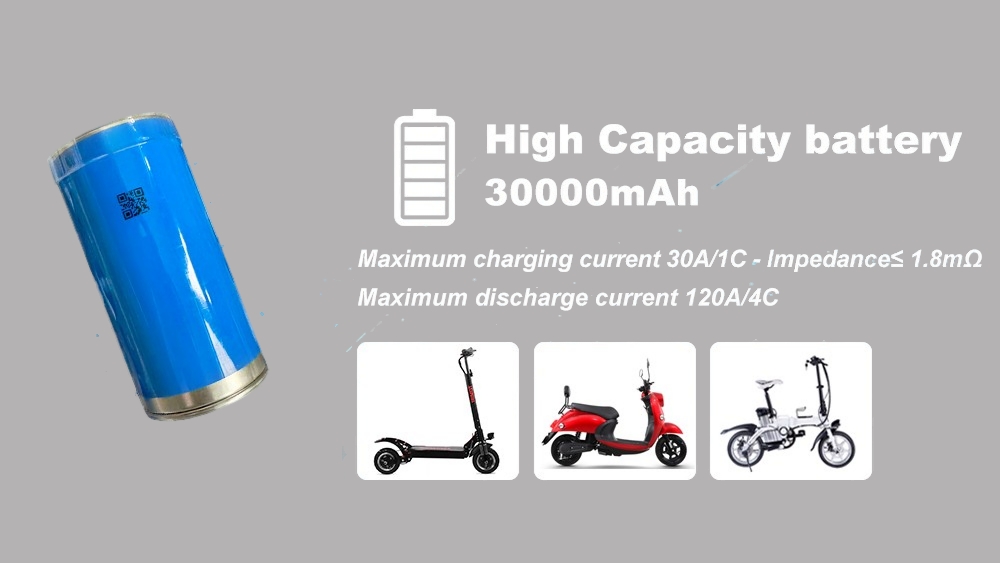

EVE 4695E is a 3.67V voltage, 30Ah capacity, 1.46mΩ full-tab battery cell, with a maximum discharge current of 120A and a weight of 415g. It is suitable for various applications such as electric sightseeing vehicles, electric scooters, two-wheelers, and energy storage batteries. It measures 46*96.5 millimetres and has a cycle life of 1,000 times, making it an ideal, durable power source for your custom battery pack assembly.

Feature

High Capacity: Rated capacity is 30Ah

Compact size: 46*95mm, weight is 415±10g.

Wide Application: Suitable for energy storage batteries, AGV, two-wheel electric vehicles, electric scooters and electric bicycle battery packs.

Flexible Warranty: 1-year warranty for your peace of mind.

Rechargeable: Lithium-ion technology ensures long-term availability.

Customizable: Supports custom assembly, providing PCB, wire and connector options.

International Compliance: CE, RoHS, UN38.3 and other certifications ensure safety and quality.

Long Cycle Life: Can withstand up to 1000 charge and discharge cycles, maintaining long-lasting performance.

Specification

Item

Specifications

Normal Capacity

30.0 Ah; 1/3C; 25±2℃, 2.8~4.2 V

Normal Energy

110.0Wh; 1/3C, 25±2℃, 2.8~4.2 V

Nominal Voltage

3.67V (1/3C)

Discharge Capacity

≥30.0Ah; 25℃, 1/3C, 2.8~4.2 V

Discharge Energy

≥110.0Wh; 25℃, 1/3C, 2.8~4.2V

AC Internal Resistance of BOL Status

≤1.8 mΩ

DC Internal Resistance of BOL Status

≤4.0 mΩ

Standard Charge Current

10Ah (1/3C)

Standard Discharge Current

10Ah (1/3C)

Maximum Continuous Charging Current

1C; (0%, 90%) SOC

Cycle Life

1000 cycle, 25℃, 3.0~4.15 V, 0.5C/0.5C

Environmental Temp

0~45℃; Charge Temp

-20~45℃; Discharge Temp

Storage Temp

0~25℃; 1 Year

0~45℃; 3 Month

-20~55℃; 1 Month

Self Discharge Rate@25℃

First month 0.05 V/month

Followed by 0.03V/month

Shipping Voltage Range

3.5~3.8V

Multiple Rate Discharge

25℃, 3C; ≥90% Of 1C Discharge Capacity

High and Low Temperature Discharge

-20℃, 1C; Capacity Retention Rate ≥80 %

55℃, 1C; Capacity Retention Rate ≥90 %

Cell Weight (With Insulating Film)

415±10 g

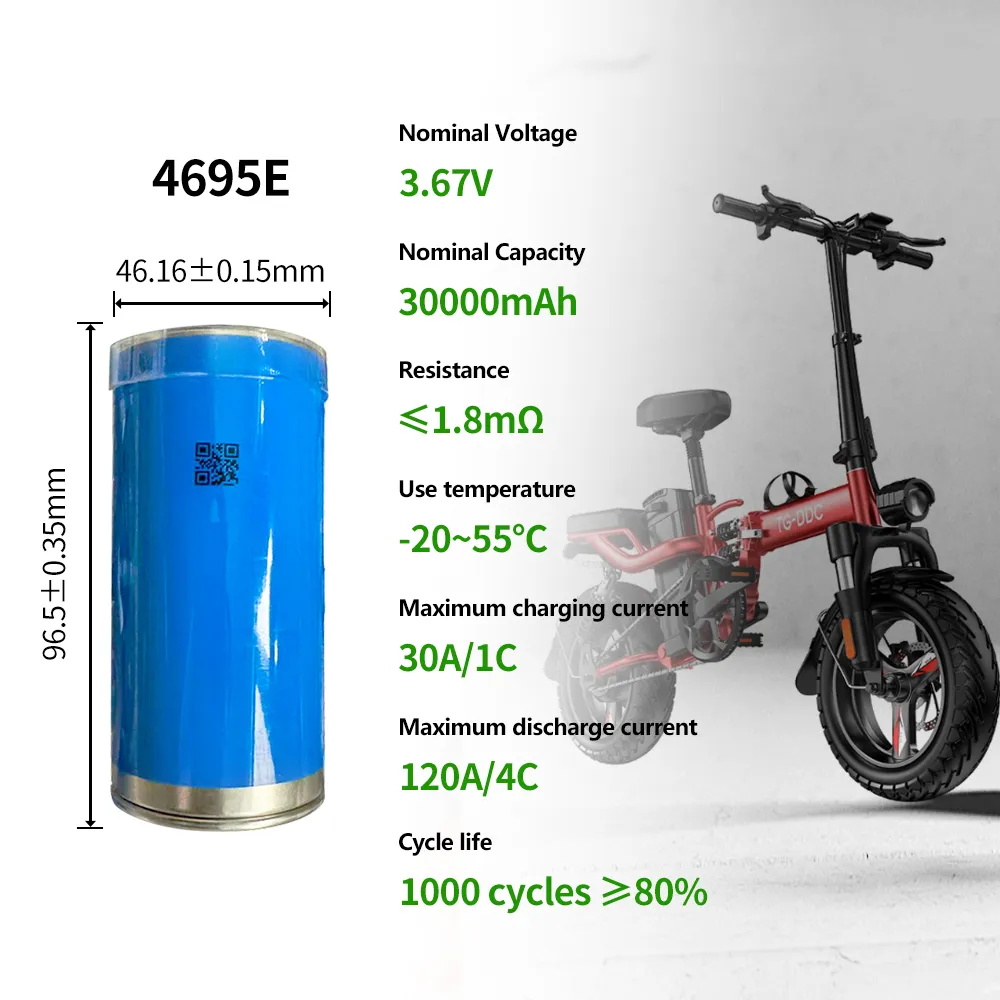

Cell Dimension

(46.16±0.15)×(96.50±0.35)mm

Performance and Dimension

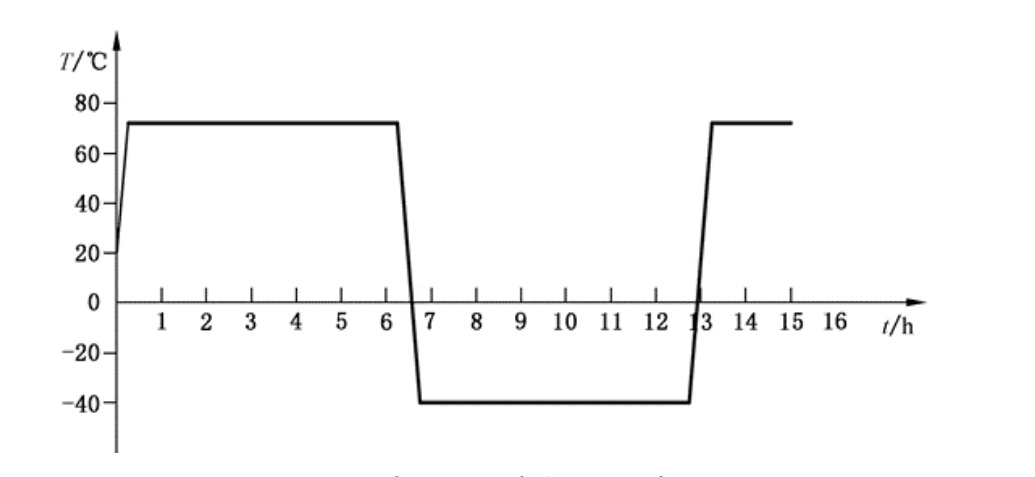

Temperature Cycle

Applications

EVE 4695E 3.67v 30ah cylindrical lithium ion battery cells are used in various fields due to their versatility and reliability.

Its main applications include:

Toys: Power electronic toys and gadgets to extend play time.

Power Tools: Provide energy for a variety of cordless power tools for efficient operation.

Consumer Electronics: Support a variety of portable electronic devices, ensuring long service life and stable performance.

E-bike Battery Pack: Provide energy for electric bicycles, ensuring long driving distance and stable performance.

These applications prove the adaptability and reliability of 4695E battery cells in different industries, making it a versatile choice for many electronic and transportation equipment.
