Details
CALB 3.7V 113Ah Ternary Lithium battery (NMC 811) Prismatic Lithium nickel manganese cobalt oxide Cell,CE,UL,MSDS,and UN38.3 have been approved.
Description
CALB 3.7V 113Ah Ternary Lithium battery (NMC 811) Prismatic Lithium nickel manganese cobalt oxide Cell, CE, UL, MSDS, and UN38.3 have been approved. (L221N113A)3.7V 113Ah NMC battery cells were already passed all safety tests(overcharge, over-discharge, over-temperature, short circuit, drop, crush, needle puncture tests, etc.).
Item | Parameter |
Nominal Capacity | 113.5Ah @1C |
Minimal Capacity | 113.5Ah @1C |
Work Voltage | 2.8-4.35V (T≥0℃) 2.2-4.35V (-30℃≤T＜0℃) |
Internal Resistance | 0.4~0.6mΩ |
Charging Time | ~4h |
Recommended SOC Window | SOC：5%~97% |
Operating Temperature | Charging Temperature: -20~55°C Discharging Temperature: -30~55°C |
Weight | 1800±25g |
Shell Material | Aluminium alloy |
Cycle Life | ≥2000 cycles |

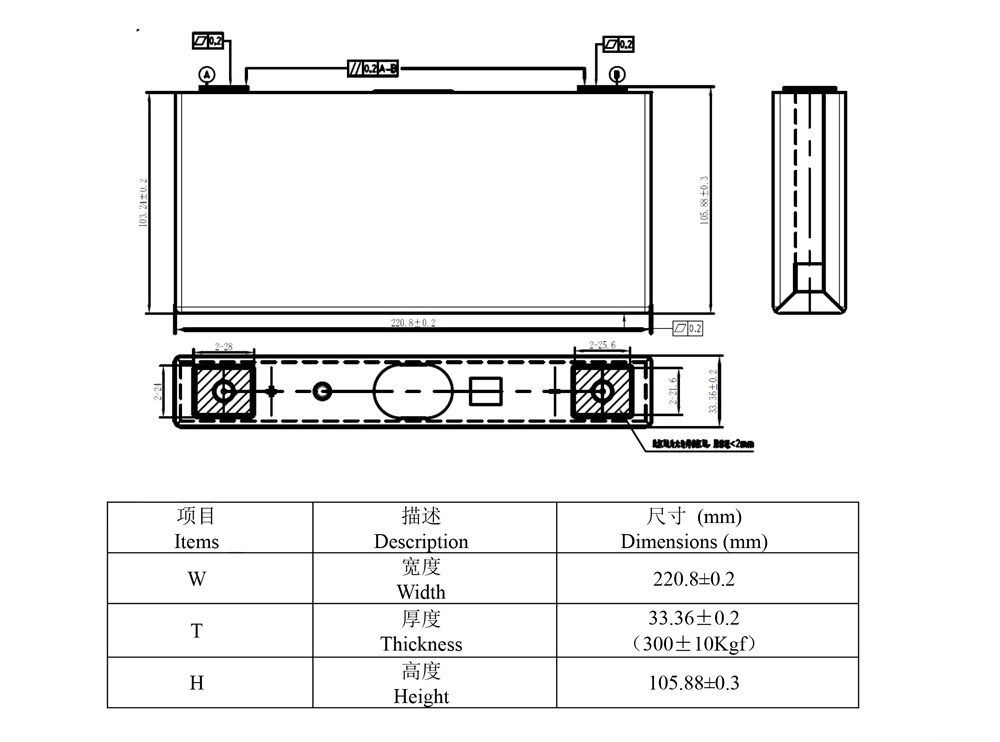

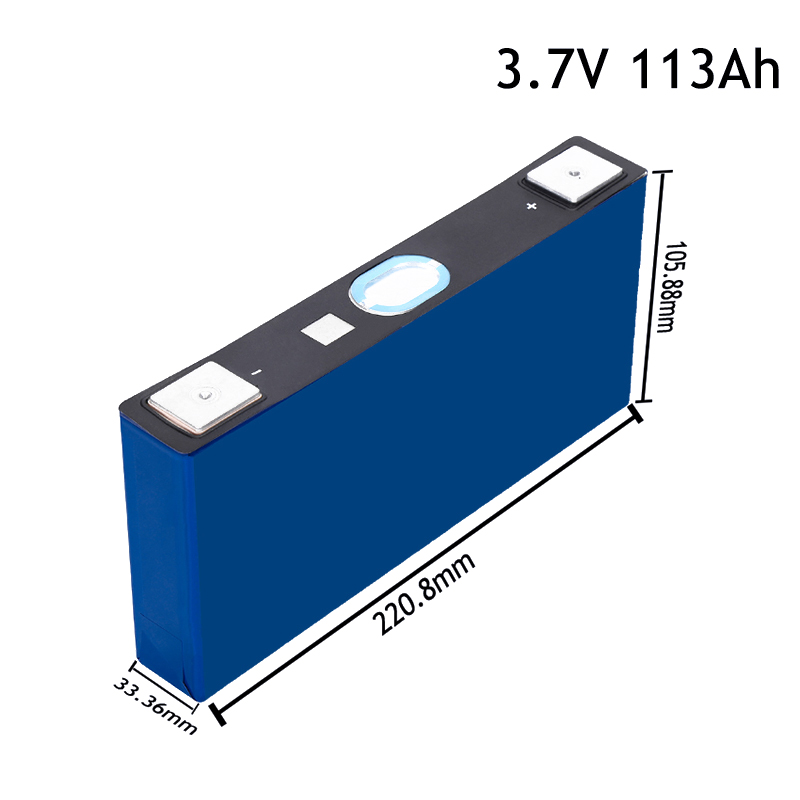

Dimension | 220.8±0.2(W)*33.36±0.2(T)*105.88±0.3(H)mm |
CALB 3.7V 113 Ah lithium nickel manganese Cobalt oxide (NMC) battery, with its excellent energy density and stable performance, has demonstrated excellent applicability in many fields. In the field of electric vehicles, it can provide a strong power for the vehicle to ensure that the vehicle has a long driving range to meet the needs of daily commuting and short and medium distance travel; In the energy storage system, it can efficiently store electric energy, and in the field of power tools, it can ensure the continuous and stable operation of tools and provide lasting power support for various types of operations.
