Details

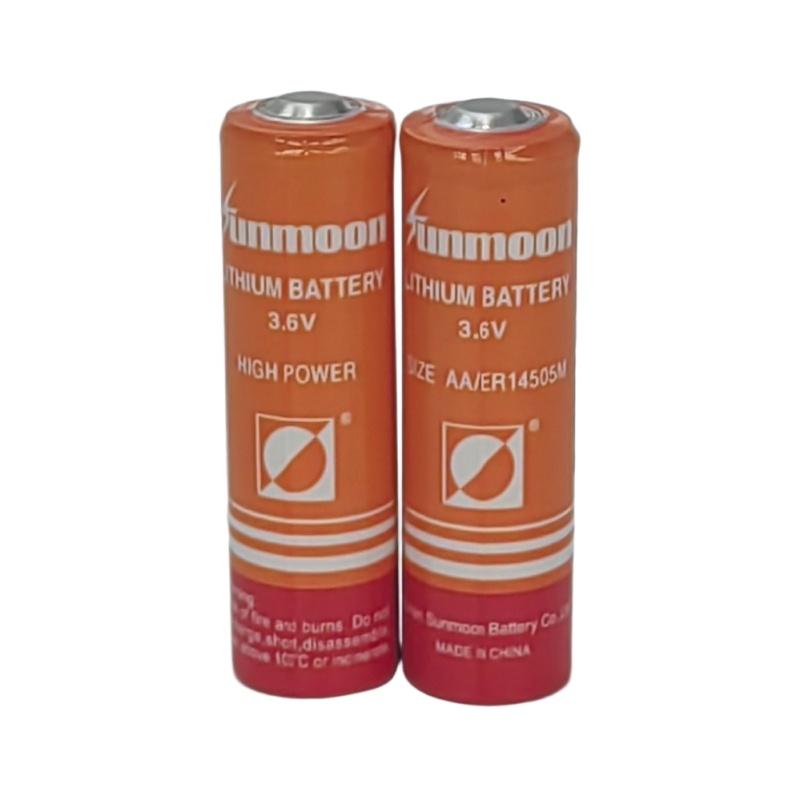

ER14505M 3.6V 2100mAh Li-SOCl2 Spiral Type Lithium Thionyl Chloride Battery Non-Rechargeable Lithium Cell features high energy density and is suitable for high-power continuous discharge and pulse discharge.
Description
High energy density over 430wh/kg
Open circuit voltage ≥ 3.65V, and operating voltage ranging from 3.3~3.6V
Wide operating temperature range:-55℃~+85℃
Long storage life reaching 10 years [under normal room temperature]

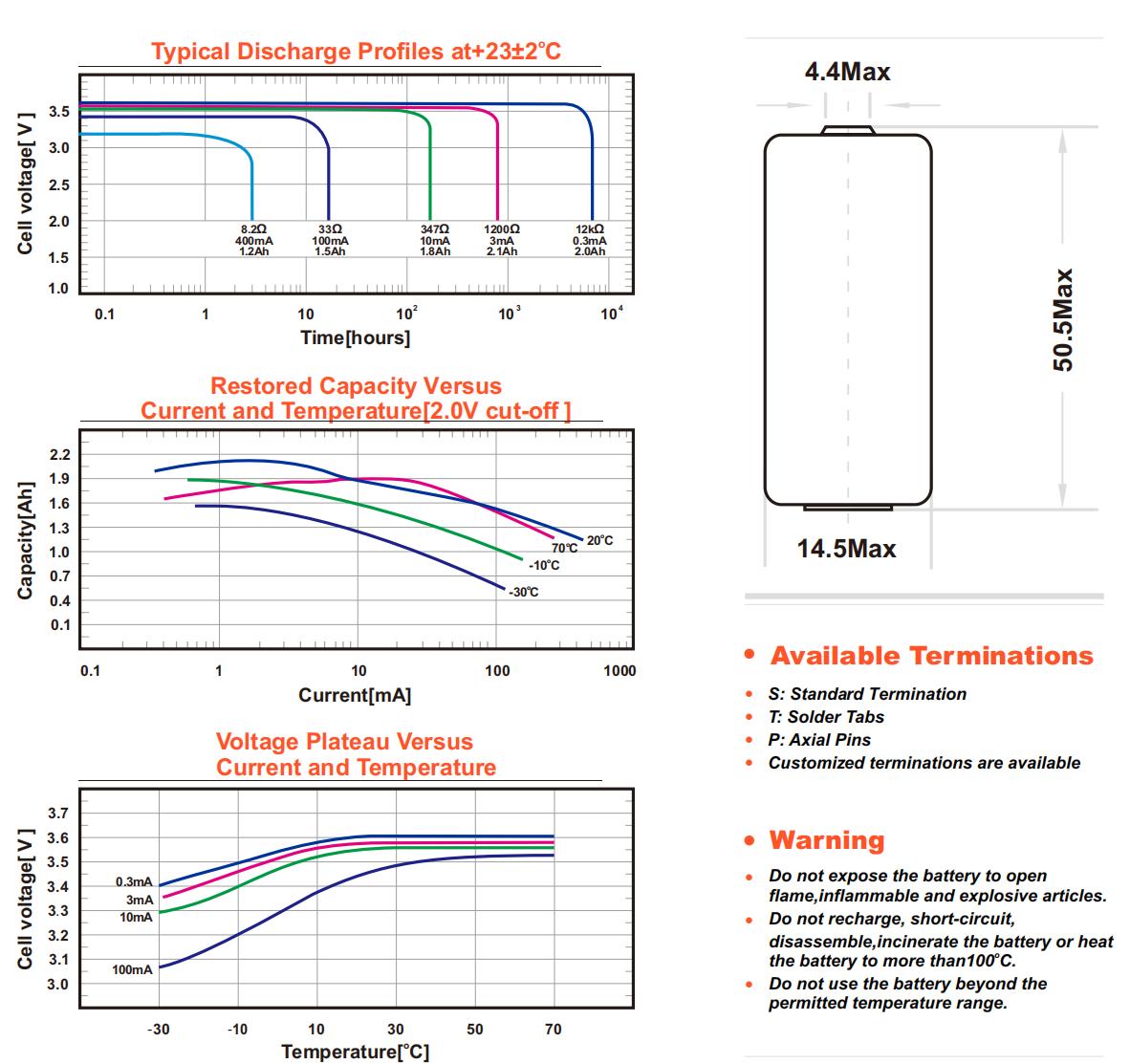

This series batteries are suitable for high power continuous discharge and pulse discharge
| Item | Specifications |
| Product Model | ER14505M |
| Product type | LI/SOCl₂ |
| Battery charging | No |
| Nominal voltage | 3.6V |
| Maximum Continuous Current | 300mA |
| Nominal Capacity | 2100mah |
| Maximum Pulse Current | 1000mA |
| Weight | 20g |
| Operating Temperature | -55℃~+85℃ |
| Discharge cut-off voltage | 2V |
| Maximum Profile Size | φ14.5 X50.5mm |
| Rated Discharge Current | 3mA |
loT / Alarms and Security Systems / Utility Meters/AMR&AMI / Automotive Telematics / Storage and Tracking Devices / Military Equipment / R&D Instrument / Sensor / Oil Drilling
