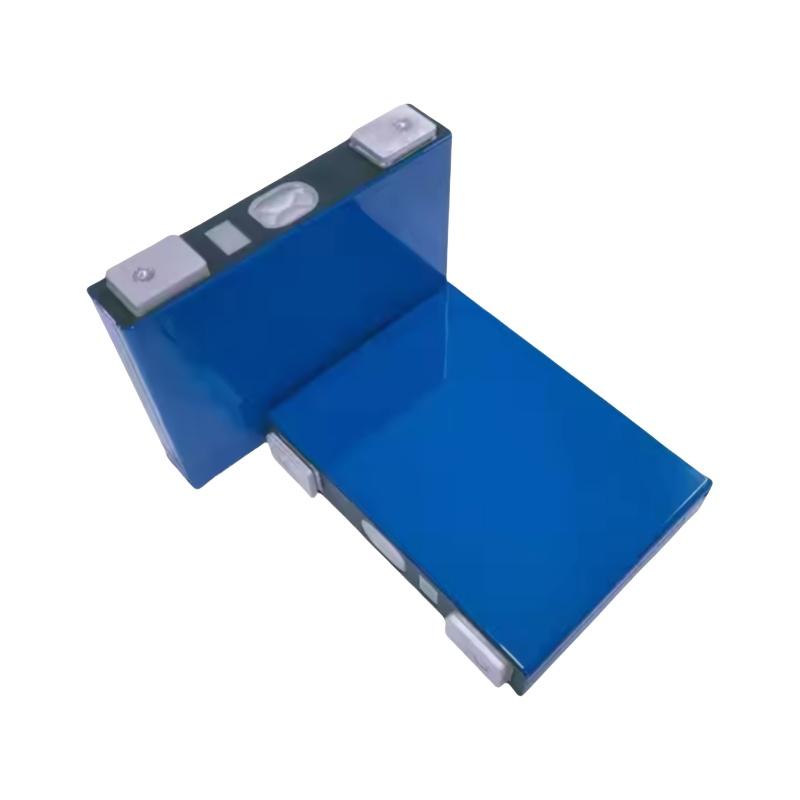

SVOLT 3.7V 62.5Ah Ternary Lithium Battery Rechargeable NMC Lithium-ion Cell

  • SVOLT 3.7V 62.5Ah Ternary Lithium Battery
  • SVOLT 3.7V 62.5Ah Ternary Lithium Battery
  • SVOLT 3.7V 62.5Ah Ternary Lithium Battery

Details

SVOLT 3.7V 62.5Ah Ternary Lithium Prismatic Battery Rechargeable NMC Lithium-ion Cell is widely applied in LEV, UPS, e-bike, motorcycle,etc.

Description

SVOLT 3.7V 62.5Ah Brand New Grade A Prismatic Ternary Lithium NMC Battery Cell For LEV, e-bike, motorcycle, etc.

Our batteries are sourced directly from SVOLT, ensuring they are Grade A, brand new, and have the guaranteed capacity.

For more information on SVOLT 3.7V 62.5Ah Ternary Lithium Battery, please contact us.

Specification

Item

Specification

Capacity

≥62.5Ah(25℃ Discharging current of 62.5A (1C)

Discharging cut-off voltage of 2.8V)

Discharge Energy

≥226Wh

Energy Density

≥219Wh/Kg

Operating Voltage

2.8-4.2V(T>5℃)

2.5-4.2V(-20℃<T≤5℃)

2.1-4.2V(T≤-20℃)

Internal Resistance(1KHz)

≤0.50mΩ; 25℃ fresh cell SOC=40%, AC 1KHz

Average Internal Resistance

(1KHz)

0.40±0.10mΩ; 25℃ fresh cell SOC=40%, AC 1KHz

Voltage of Cell Shipment

3.677±0.005V; 25℃ 48%SOC

Capacity of Shipment

≥62.5Ah(25℃ Discharging current of 62.5A (1C)

Discharging cut-off voltage of 2.8V)

Operating Temperature

Charge: -20℃~55℃

Discharge: -30℃~55℃

Cycle Life

≥2000 cycles(25℃ 1C/1C 100%DOD)

Recommended SOC

10%-95%

Cell Weight

1.030±0.030 Kg(The weight of the film is included)

Cell Dimension (mm)

(148.3±0.3)*(26.72±0.22)*(108.9±0.3)mm

Dimension

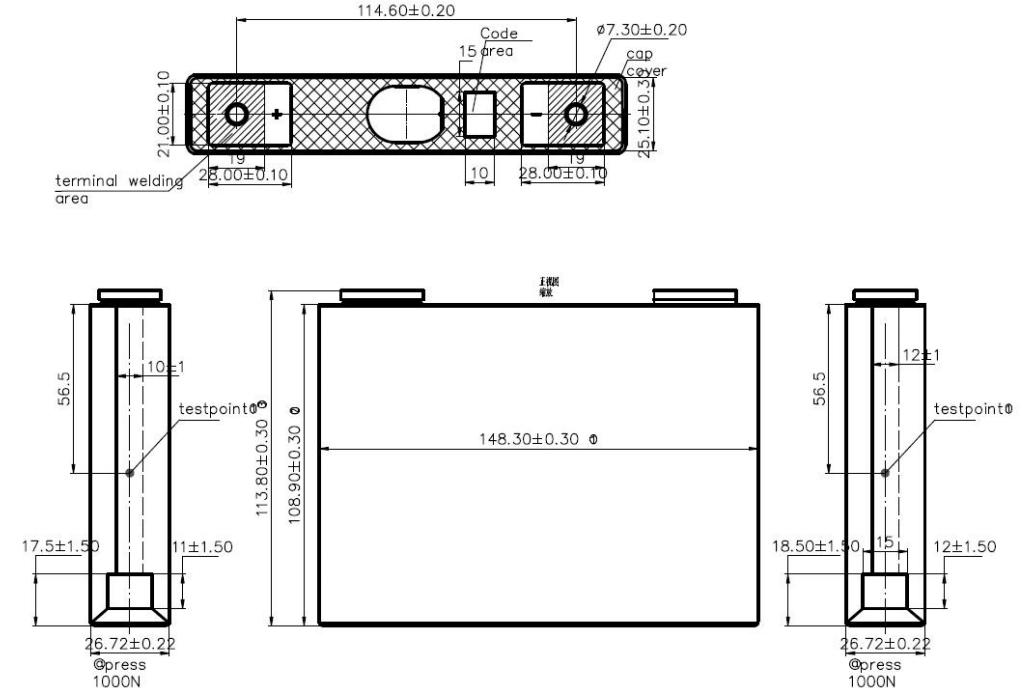

Dimension of SVOLT 3.7V 62.5Ah Ternary Lithium Battery

SVOLT 3.7V 62.5Ah Ternary Lithium Battery

Safety Precautions

DO NOT short circuit the cell

DO NOT overcharge the cell

DO NOT immerse the cell into the water

Avoid excessive physical shock or vibration

DO NOT put the cell into fire or exposed to high temperature environment

DO NOT use plastics to enclose the cell or use plastics for electrical connection

Connect the electrodes in accordance with the instructions, and reverse charge is prohibited

Application

Application of SVOLT 3.7V 62.5Ah Ternary Lithium Battery
