Details
Svolt 3.6V 5000mAh Rechargeable Battery 21700 NMC Cylindrical Lithium Ion Cells features high capacity, lightweight, low internal resistance and etc.
Description
Svolt 3.6V 5000mAh Rechargeable Battery 21700 NMC Cells features high capacity, lightweight, low internal resistance and etc.
Item | Specification |
Nominal Capacity | 5000 mAh@0.2C |
Nominal Voltage | 3.60V |
Charge voltage | 4.20V |
Discharge cut-off voltage | 2.50V |
Max charge current | 1C（4900mA; not for cycle life) |
Max discharge current | 3C（14700mA; not for cycle life) |
Storage temperature | 1 year: -20~25℃ 3 months:-20~45℃ 1 month: -20~60℃ |
Humidity range | 0~60% RH (non-condensing) |
Operating Temperature | Charge: 0~45℃ Discharge: -20~60℃ |
Internal resistance | 14±3mΩ (AC Impedance, 1000 Hz) |
Weight | 69±2g |

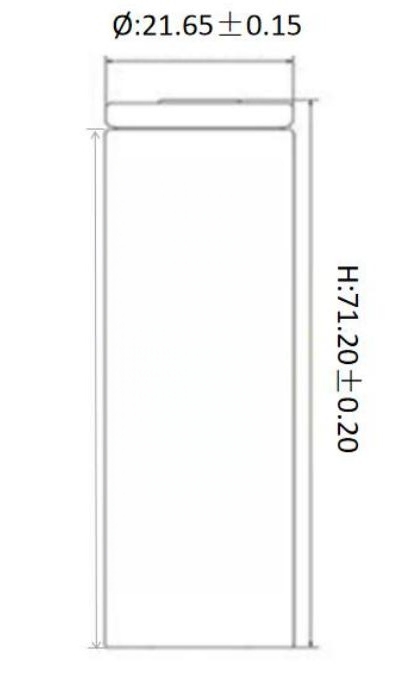

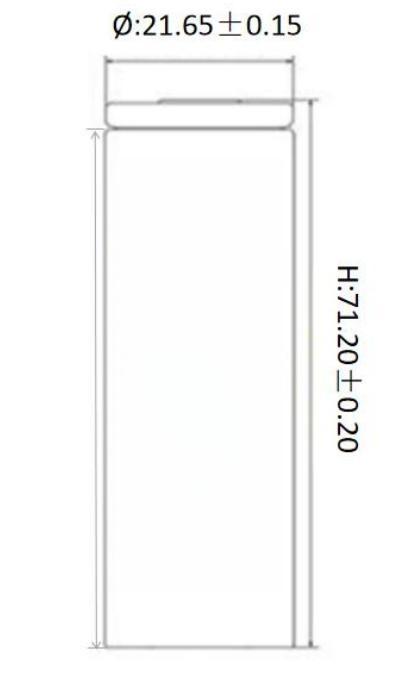

Cell Dimension | Height: 71.20±0.20mm Diameter: 21.65±0.15mm |
High capacity and stable discharge voltage.
Longer working time and high performance.
Lightweight and compact size.
Good discharge performance and low internal resistance.
No memory effect
Good discharge capability under high loads and high temperature resistance.
Environmentally friendly and non-polluting.
100% genuine original lithium-ion rechargeable battery.
Built-in explosion-proof protection and circuit protection.
With explosion-proof valve: In the event of high temperature, short circuit, or other abnormal conditions, internal pressure will rupture the explosion-proof valve to prevent fires and explosions.
Do not use and leave the cell near a heat source such as fire or heater.
Do not use or leave the cell under the blazing sun (or in heated car by sunshine).
Do not use or leave the battery at very high temperature conditions
Do not short circuit, over-charge or over-discharge the cell.
Don’t immerse the battery in water and seawater
Don’t reverse the positive and negative terminals
Do not disassemble or modify the cell.
Do not transport or store the battery together with metal objects such as necklaces, hairpins, coins, etc
Make sure the cell is not with conspicuous damage or deformation.
Don’t connect the cell to an electrical outlet directly.
Mixed use of batteries of different types is not allowed.
Keep the battery away from babies.
Do not directly solder the battery and pierce the battery with a nail or other sharp object
Do not strike, throw or trample the battery.
Do not use cells in strong electrostatic and magnetic occasions
