Description

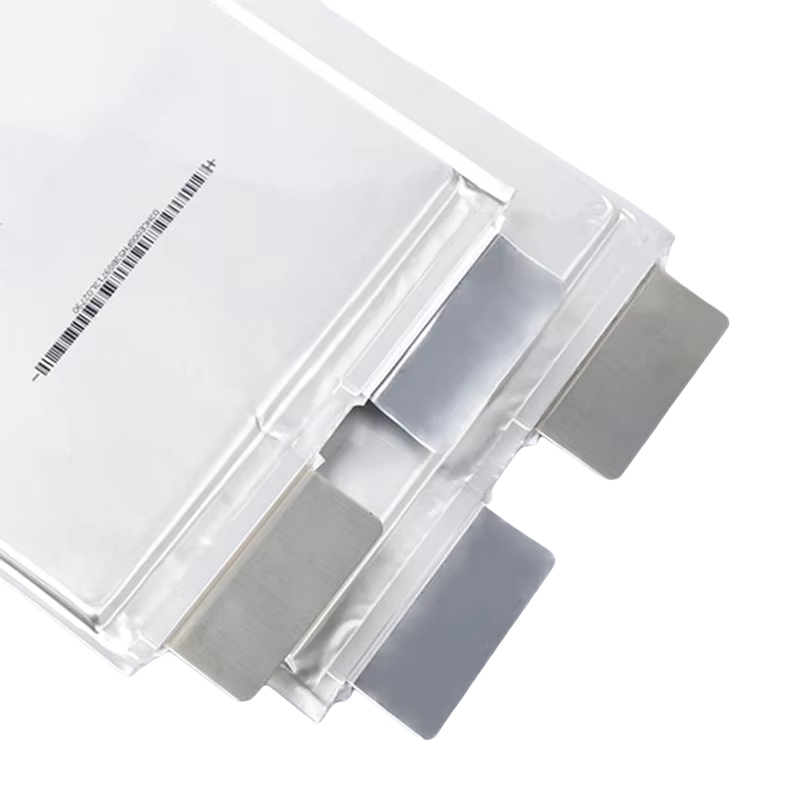

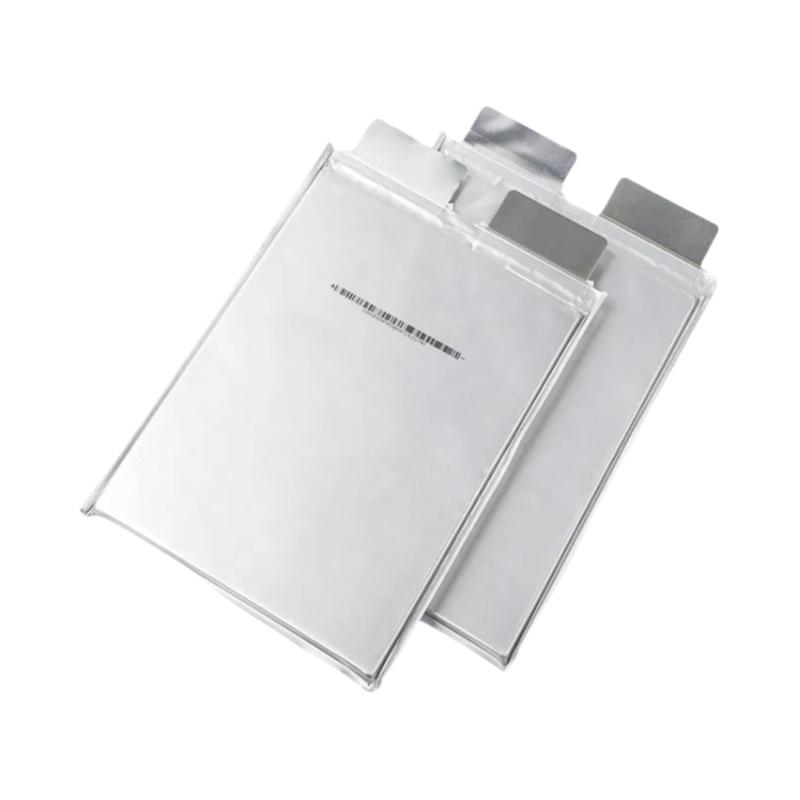

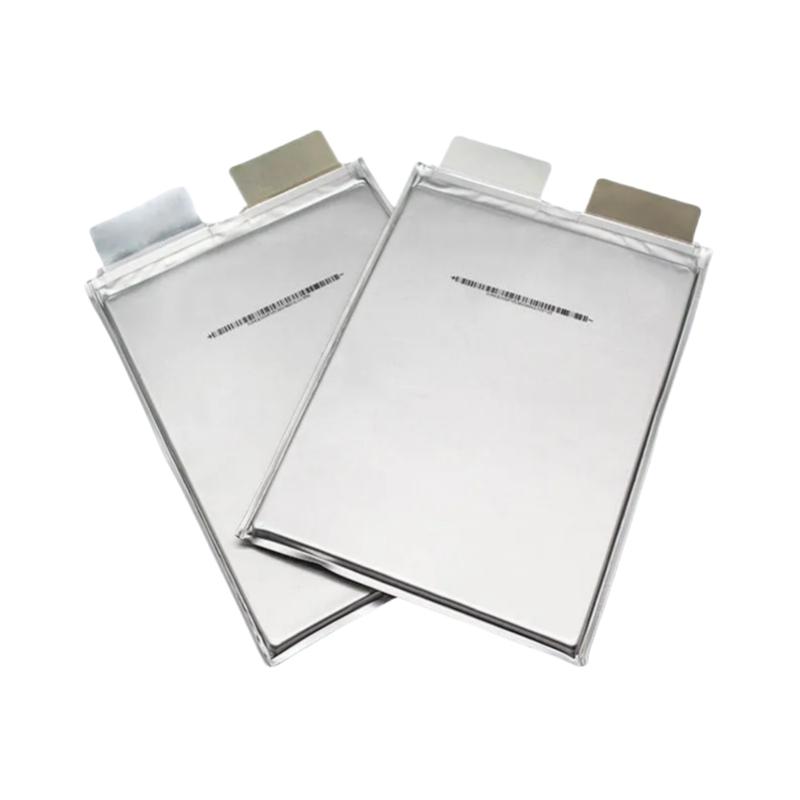

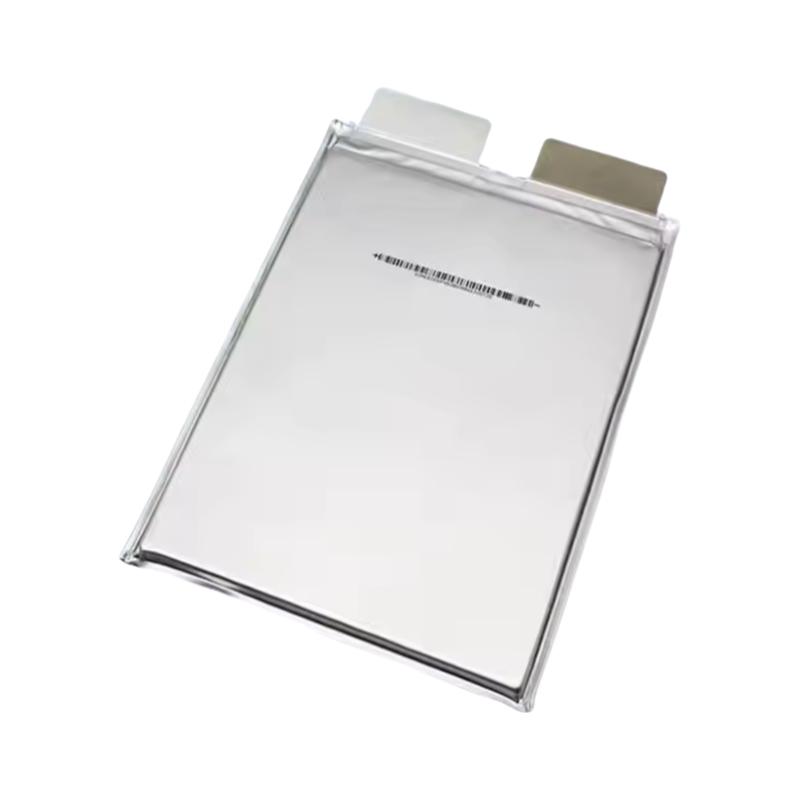

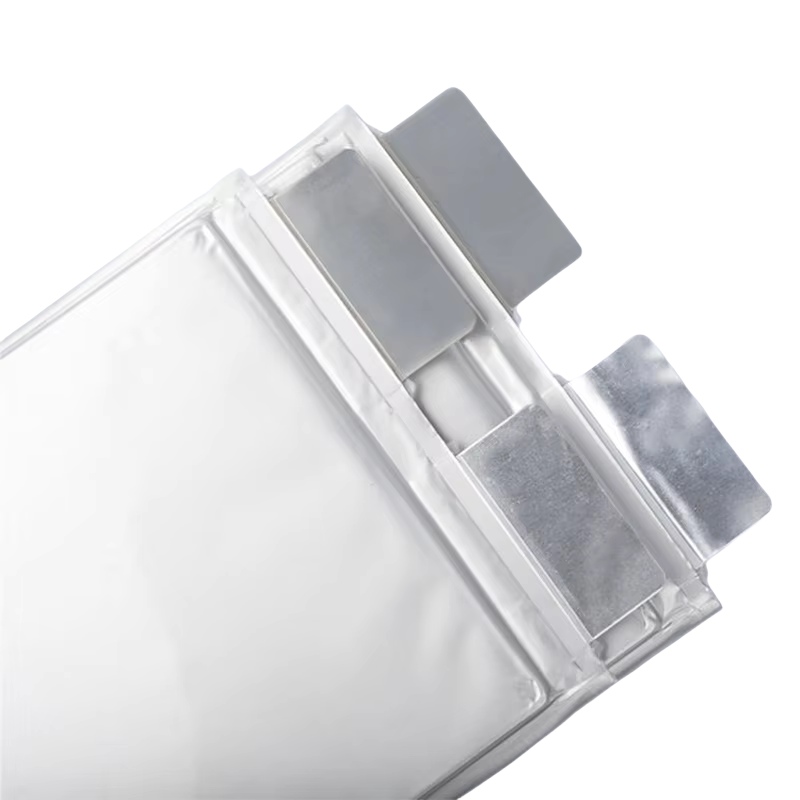

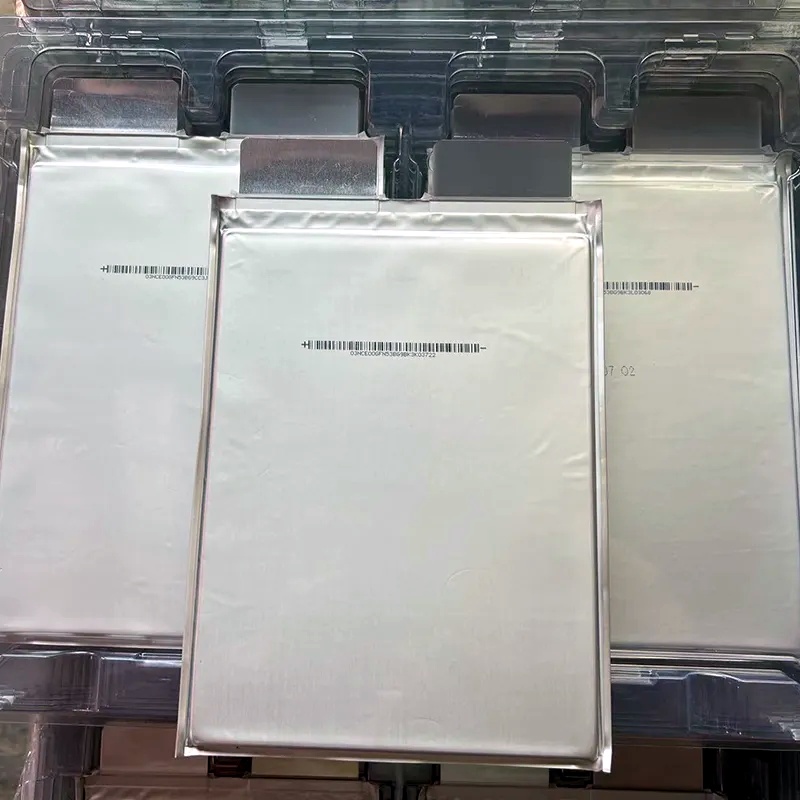

Grade A Brand New Farasis Energy 3.7V 58ah Lithium Rechargeable Battery features low IR, high capacity, excellent rate performance and etc. It is widely used in forklift, tricycle, two wheeler, motor and etc. For more information on Farasis 3.7V 58ah NMC Pouch Cell, please contact us.
Low IR & High capacity
Excellent rate performance
Explosion-proof & No leakage
Light weight with small size
Widely application
Manufacturer Automated production,good consistency
Item | Specifications |
Standard Capacity | 58.0Ah @1/3C@3.0~4.3V @25℃ |
Operating Voltage Range | 2.75~4.35V; 25℃ ≤ T ≤ 55℃ 2.50~4.35V; 10℃ ≤ T < 25℃ 2.30~4.35V; 0℃ ≤ T < 10℃ 2.10~4.35V; -30℃ ≤ T< 0℃ |
Operating Temperature | Charge: -20~55℃ Discharge: -30~55℃ |
Nominal Voltage | 3.75V @1/3C@2.75~4.35V @25℃ |
ACIR (1KHz) | ≤1.0mΩ @55%SOC@25℃ |
DCIR (1C 10s) | ≤2.3mΩ @55%SOC@25℃ |
Cell Weight | 833±15g |
Cell Size | Thickness: 10±0.25mm Width: 161±1mm Height: 231±1mm |
Standard Discharging Current | 1C@25℃ |
Maximum Continuous Discharging Current | 3C@25℃ |
Cycle life | ≥1500 @SC/1C@3.0~4.3V @25℃ ≥800 @SC/1C@3.0~4.3V @45℃(Accelerated) |
Do not immerse cells into water.
Do not short circuit cell terminals
Reverse charging is strictly prohibited.
Do not overcharge a cell
Protect cells from mechanical shock, impact and pressure.
The usage of the cells without a BMS or similar System is strictly prohibited.
Do not use it in the place of strong static electricity and strong magnetic field
Do not service cells and electrical connections within plastic package of cell.
Do not drop cells into fire or expose them to any high temperature environment
