Details

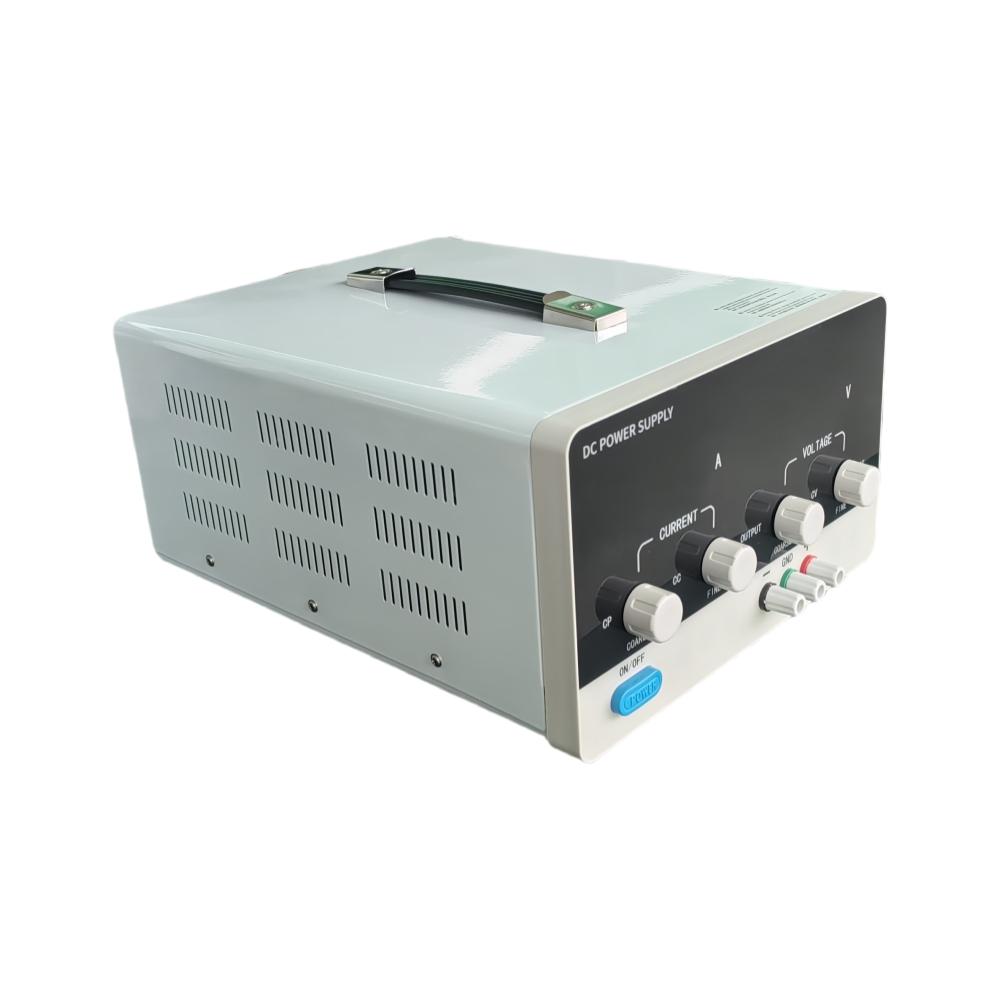

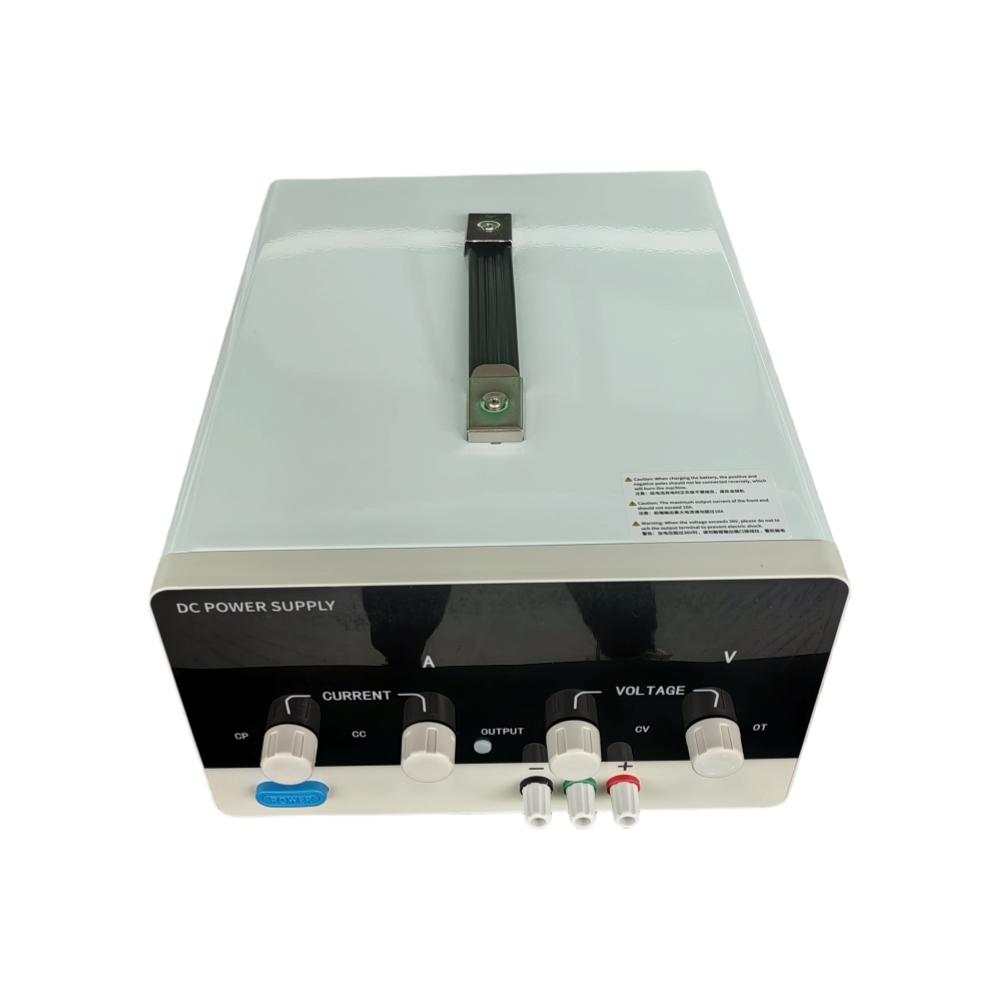

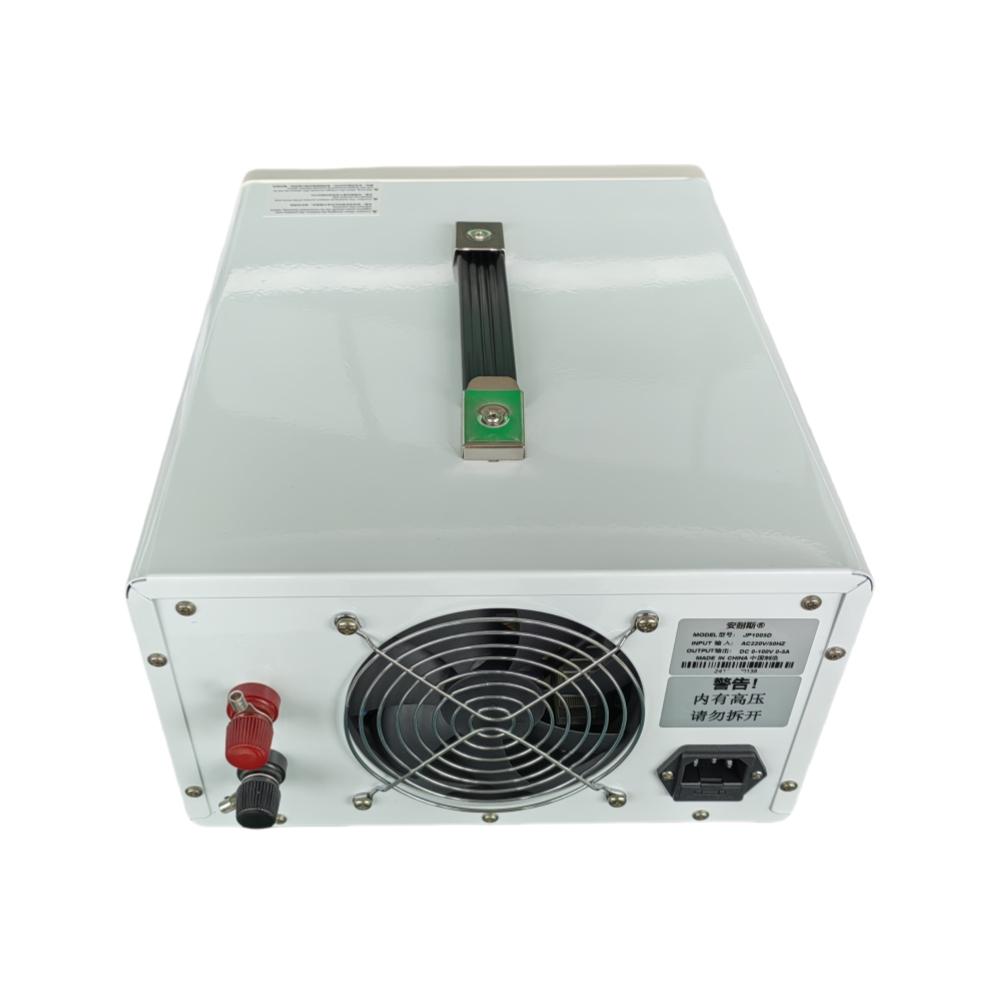

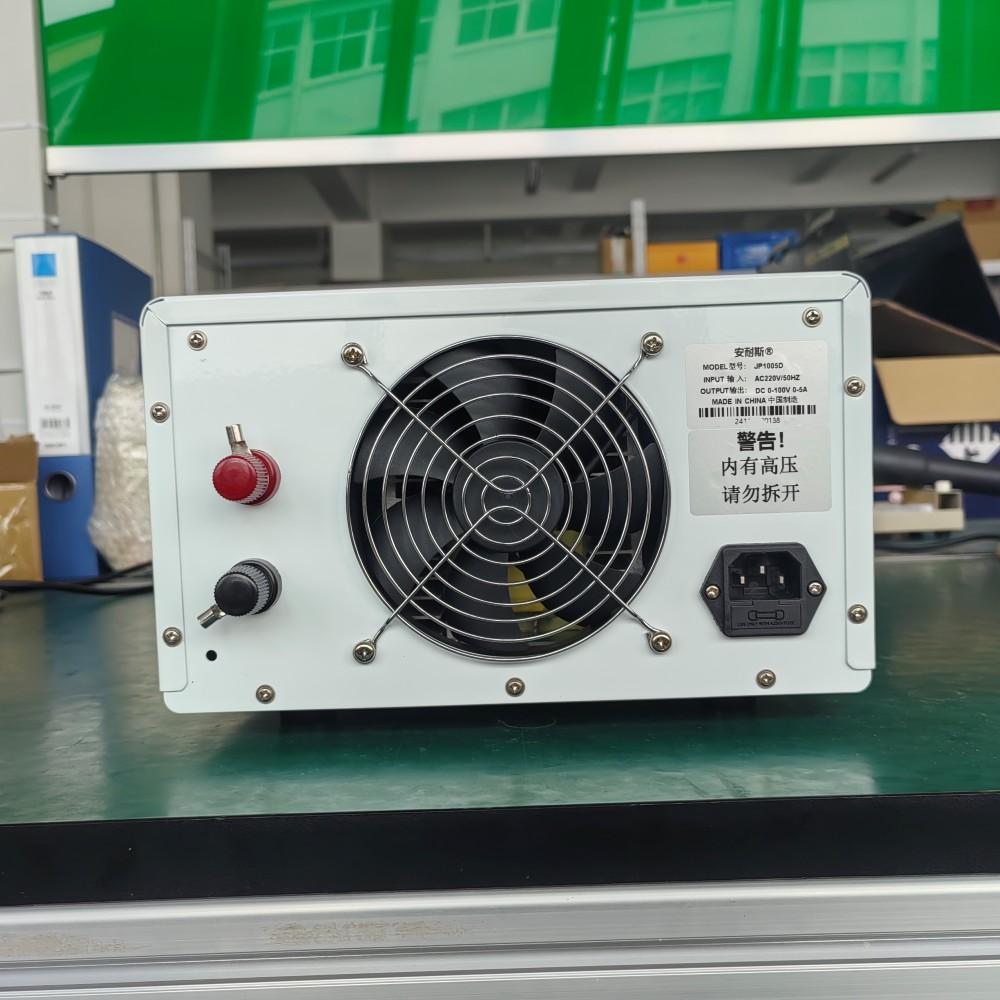

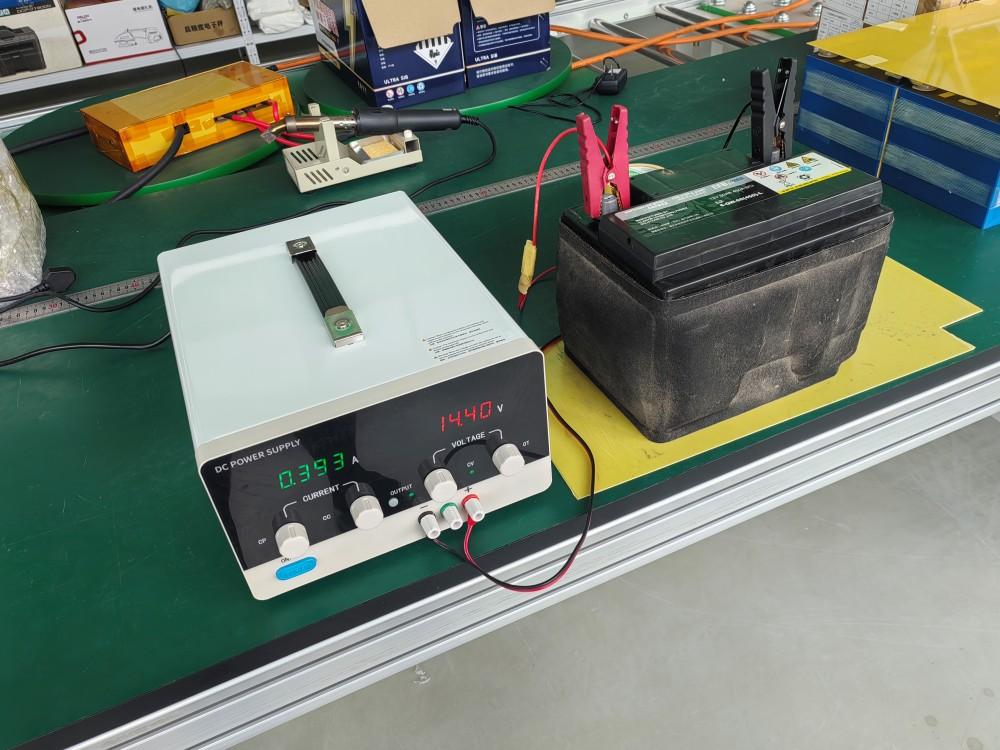

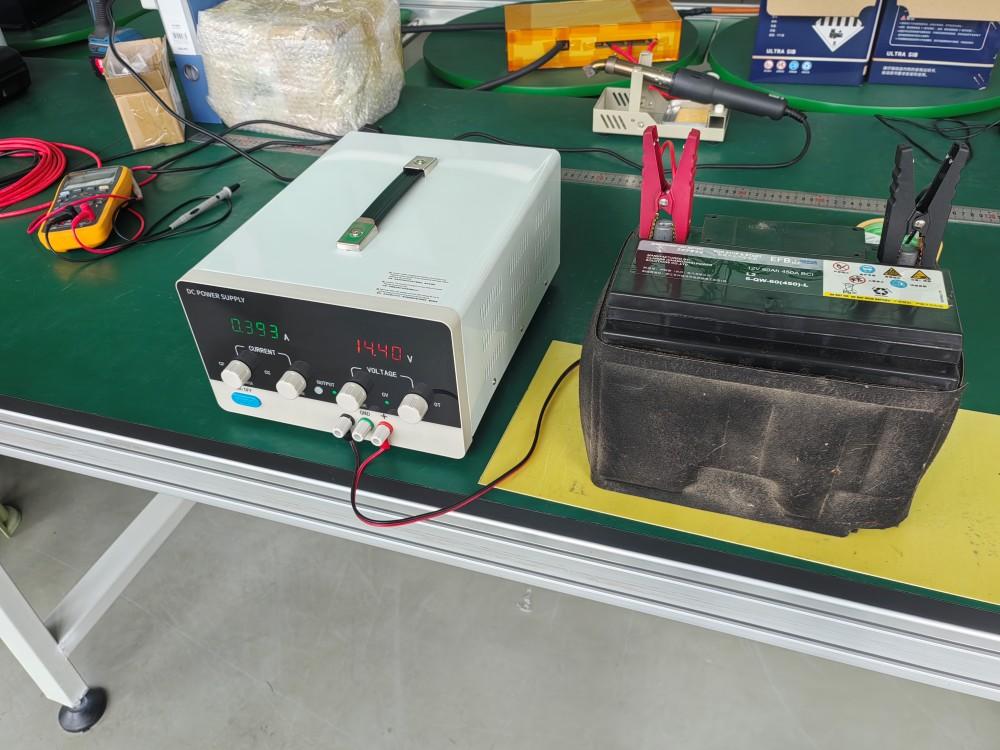

JP1005D 5A 100V Adjustable DC Power Supply features high efficiency, precision, stability, energy saving and etc.
Description
JP1005D 5A 100V Adjustable DC Power Supply employs a PWM high-frequency switching power supply technology with imported IGBT modules. Featuring high efficiency, precision, and stability, it optimizes over the efficiency of linear and silicon rectifier power supplies, delivering superior energy-saving performance. It is also known as Adjustable Switching Power Supply, Adjustable DC Voltage Regulator, High-Power DC Voltage Regulator, Adjustable DC Voltage Regulator, DC Power Supply, or High-Power DC Power Supply.
This Adjustable DC power supply features continuous adjustable voltage and current values from zero to rated levels, with automatic constant-voltage/constant-current conversion. Users can freely select parameters within the rated range while setting protection thresholds. Both voltage and current readings are displayed via LED digital tubes. Primarily used in research institutions, laboratories, electronic production lines requiring precise power testing, and all application scenarios requiring DC power. For more information on the DC Power Supply, please contact BESS.
| Item | Specification |
| Model | JP1005D |
| Output current adjustment range | 0~5A |
| Output voltage adjustment range | 0~100V |
| Total power of equipment | 500W |
| Input and output | Input: AC single phase 220V±10% 50Hz±10%Output mode: DC voltage stabilization/current stabilizationOutput maximum voltage current value 100V 5A |
| Voltage stabilization accuracy | Source effect: ≤0.1% of the rated value (only due to the rate of change of output voltage caused by a 5% to + 10% change in input source voltage)Time drift: ≤ 0.1% of the rated value (only due to the output voltage change rate caused by the continuous operation time of the power supply is greater than 8 hours)Warm drift: ≤ 0.5% of rated value /℃ (only due to the rate of change of output voltage caused by ambient temperature changes within the operating temperature range of the power supply)Load effect 0.3% rated value ±2 characters (only due to the rate of change of output voltage caused by the change of output current from zero to rated value) |
| Steady flow accuracy | Source effect: ≤0.1% of rated value (only due to the rate of change of output current caused by a variation in input source voltage-5% to + 10%)Time drift: ≤ 0.1% of the rated value (only due to the output current rate of change caused by the continuous operation time of the power supply greater than 8 hours)Warm drift: ≤ 0.5% of rated value /℃ (only due to the rate of change of output current caused by ambient temperature changes within the operating temperature range of the power supply)Load effect 0.3% rated value ±2 characters (only due to the rate of change of output current caused by the change of output voltage from zero to rated value) |
| Dynamic characteristics | Transient response time ≤100mS (measured at 50%~100% rated output voltage) |
| Instant load drop | ≤0.5% of the rated value (measured at 80%~100% rated output voltage, time ≤200mS) |
| Unloading impact | ≤0.5% of the rated value (measured at 80%~100% rated output voltage, time ≤500mS) |
| Protection mode | Automatic protection of pressure limit, current limit, over temperature and phase loss |
| Output voltage and current display resolution | 0.1V; 0.01A |
| Error of whole machine voltage and current meter | ≤±0.2%±1 character (measurement range 5%~50% of rated value)≤±0.2%±1 character (measuring range 50%~100% rated value) |
| Environmental conditions | Where to use: only indoorsTemperature: -20℃~65℃Air humidity: ≤90% |
| Size(WHD) | 250×155×330mm |
| Weight | 4-5kg |
| Note: All values are typical and may exceed this value under different loads or other circumstances.Accuracy is measured at the load voltage detection state. Under the condition of temperature error and component aging, there may be deviation between the actual value and the rated value. | |

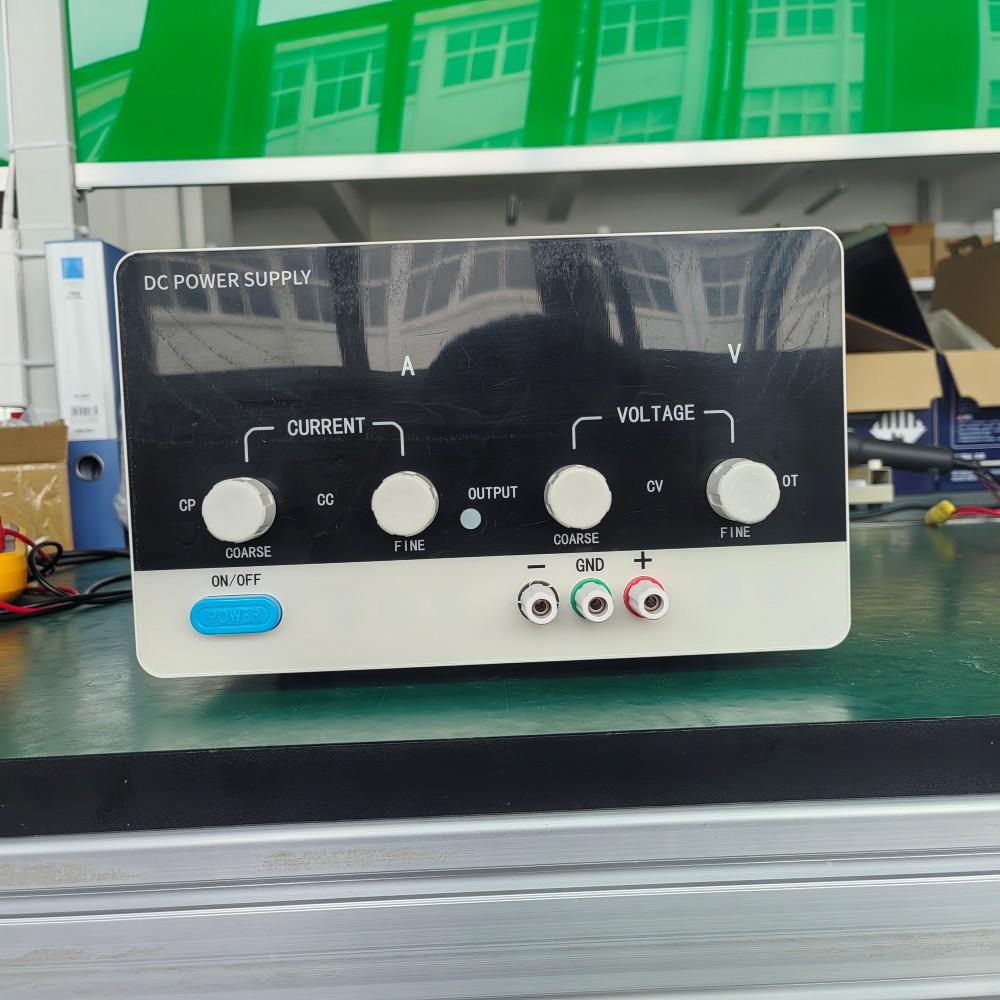

1. Display: output voltage and current LED display
2. Appearance: adopt desktop, tower or standard size, can be combined and placed on various work surfaces and racks
3. Advantages: small size, light weight, energy saving and high efficiency
4. Constant voltage and constant current: output CC/CV constant voltage and constant current automatically switch, voltage and current values are continuously linearly adjusted;
5. protection function: overvoltage protection, overcurrent protection, overtemperature protection, undervoltage protection, overload protection;
6. Short circuit characteristics: short circuit for a long time under working condition;
7. External compensation: This machine can select external compensation to reduce the voltage drop caused by the long output circuit; (optional)
8. Overvoltage protection value: The output overvoltage protection value can be adjusted, and the output is cut off and locked after protection, and restored after restarting;
9. Communication function: optional special data interface, 485 or 232 interface, data connection and control with other equipment, or connection with PLC. (optional)
10. Remote control function: can select 0-5V,0-10V or 4-20mA PLC analog signal to control the output voltage and current of the power supply; (optional) can select 5V level on/off function
11. Sampling function: optional output voltage and current 0-5V,0-10V or 4-20mA analog voltage signal sampling; (optional)
12. Electronic commutation, manual commutation; (optional)
1. Motor: electric vehicle motor, electric vehicle controller, DC motor test aging debugging, etc
2. Electrical equipment: LED/LCD test and aging, energy-saving bulb test and aging, lamp test, tungsten filament vaporization, etc
3, automobile: starter, automobile air conditioning, motor controller, car lights, cigarette lighter, automobile audio and video testing and aging
4. Electronic devices: capacitors, resistors, relays, transistors, sensors, etc
5, display: display screen, liquid screen, touch screen, car DVD, mobile phone display, etc
6. Electrochemical: electrolysis, electroplating, anodizing, non-ferrous metals, sewage treatment, etc
7. Military aviation: aircraft start-up maintenance, power supply for military equipment, etc
8. Geophysical exploration: power supply for mineral and petroleum equipment, etc
9. Power supply: aging of inverter products, maintenance and testing of frequency converter, etc
10. Electric tools: contact aging, coil test, circuit breaker tripping test, etc
11. Other DC power supply is required.
