Details

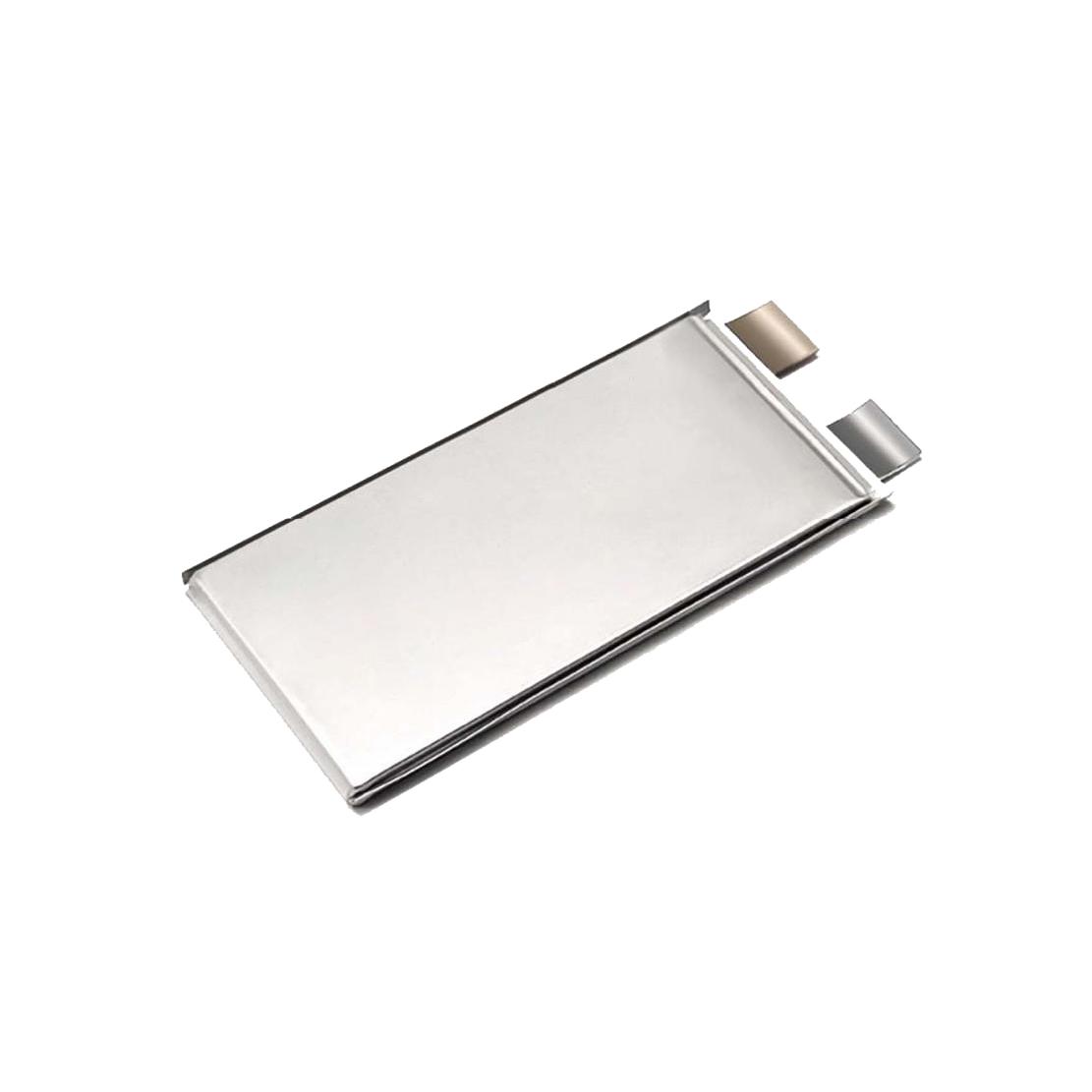

3.6V 35Ah pouch lithium semi solid state battery cell with more than 320wh/kg energy density for High-end drones and Intelligent robots
Description
High energy density
High safety
Low cost
Longer lifespan
Longer range
| Item | Specification |
| Rated Capacity | 35Ah (0.33C) |
| Nominal Voltage | 3.60V |
| AC Internal Resistance | ≤1.3mΩ (50%SOC) |
| Charging Voltage | 4.20V |
| Cut-off Voltage | 2.5V |
| Standard Charging | Charge at 0.33C (11.6A) constant current (CC) to 4.20V, then constant voltage (CV) charging until the cut-off current of 0.02C (0.70A) |
| Maximum Charging Current | 1C (35A) |
| Standard Discharging | Discharge at 0.33C (11.6A) constant current (CC) to 2.5V |
| Multi-rate Discharging | Discharge at 3C (105.0A) constant current (CC) to 2.5V |
| High Multi-rate Discharging | 5C (175A) (Sustainable discharge for 60s at ≥50%SOC) |
| Ultra-high Multi-rate Discharging | 7C (245A) (Sustainable discharge for 10s at ≥50%SOC) |
| Cycle Life | 1.0C/3C normal temperature cycle ≥ 800 times 0.5C/1C normal temperature cycle ≥ 1000 times |
| Operating Temperature | Charging: 0℃~45℃ Discharging: -20℃~55℃ |
| Storage Temperature | Short-term storage (1 month): -20℃~45℃ Long-term storage (6 months): -10℃~35℃ |
| Storage Humidity | Short-term storage (1 month): RH: ≤90% Long-term storage (6 months): RH: ≤70% |
| Energy Density | Gravimetric energy density: 320±10Wh/kg (0.33C) Volumetric energy density: ≥670Wh/L (0.33C, thickness in delivery state) |
| Weight | 395±10g |
