24V 36V 48V 72V 12Ah-120Ah Lithium LiFePO4 Battery Pack for electric scooter, electric wheelchair, e-bike, electric motorcycle, etc.
Description
This series of LFP battery packs is professionally developed for light electric vehicles. It features outstanding safety, long cycle life, stable discharge performance, high energy density and low self-discharge rate. With standard size, reasonable weight and reliable charge-discharge parameters, it is an ideal power supply solution for various light electric vehicles. Our company can accept customization of various types of battery packs. If you need lithium lifepo4 battery packs, please contact us directly.

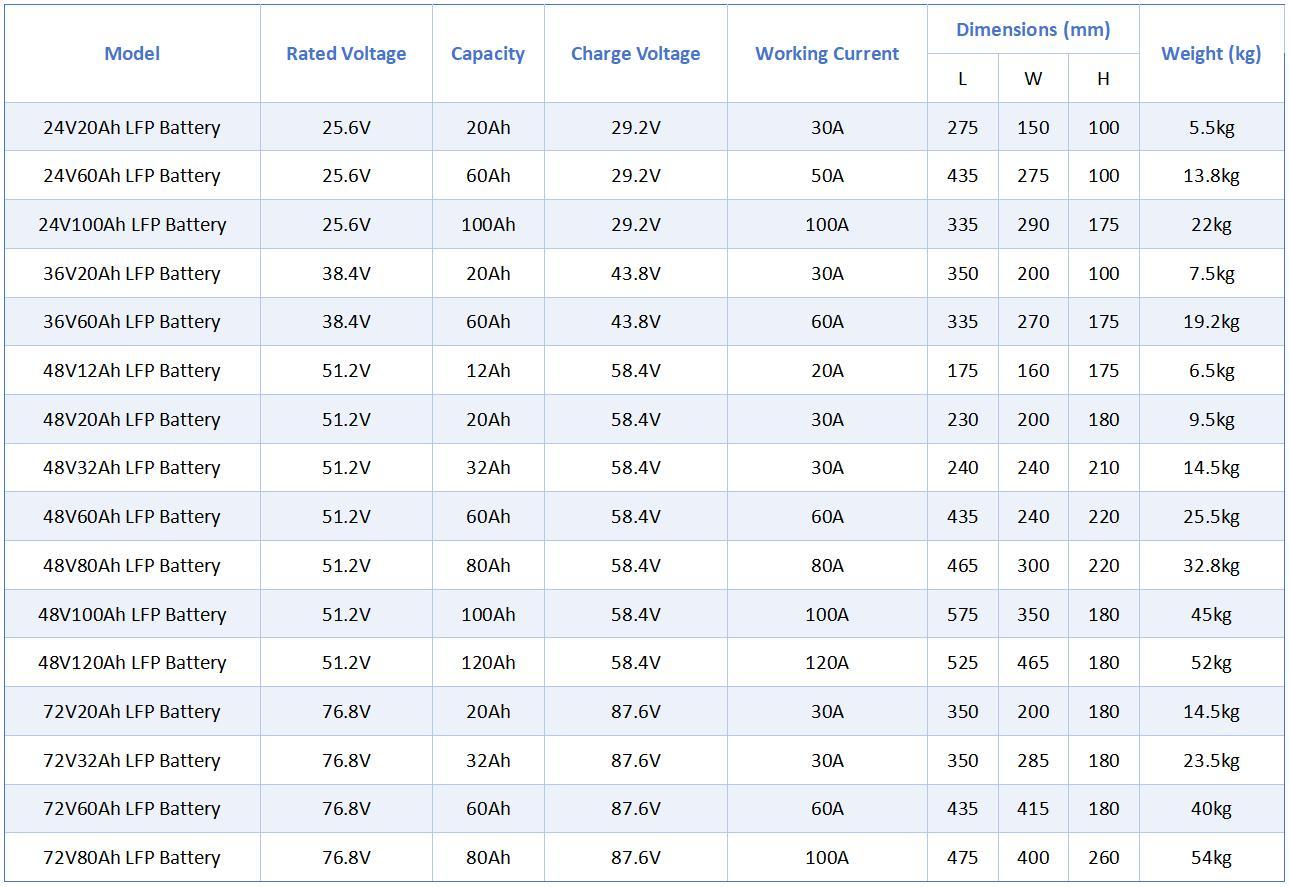

| Model | Rated Voltage | Capacity | Charge Voltage | Working Current | Dimensions (mm) L | Dimensions (mm) W | Dimensions (mm) H | Weight (kg) |
| 24V20Ah LFP Battery | 25.6V | 20Ah | 29.2V | 30A | 275 | 150 | 100 | 5.5kg |
| 24V60Ah LFP Battery | 25.6V | 60Ah | 29.2V | 50A | 435 | 275 | 100 | 13.8kg |
| 24V100Ah LFP Battery | 25.6V | 100Ah | 29.2V | 100A | 335 | 290 | 175 | 22kg |
| 36V20Ah LFP Battery | 38.4V | 20Ah | 43.8V | 30A | 350 | 200 | 100 | 7.5kg |
| 36V60Ah LFP Battery | 38.4V | 60Ah | 43.8V | 60A | 335 | 270 | 175 | 19.2kg |
| 48V12Ah LFP Battery | 51.2V | 12Ah | 58.4V | 20A | 175 | 160 | 175 | 6.5kg |
| 48V20Ah LFP Battery | 51.2V | 20Ah | 58.4V | 30A | 230 | 200 | 180 | 9.5kg |
| 48V32Ah LFP Battery | 51.2V | 32Ah | 58.4V | 30A | 240 | 240 | 210 | 14.5kg |
| 48V60Ah LFP Battery | 51.2V | 60Ah | 58.4V | 60A | 435 | 240 | 220 | 25.5kg |
| 48V80Ah LFP Battery | 51.2V | 80Ah | 58.4V | 80A | 465 | 300 | 220 | 32.8kg |
| 48V100Ah LFP Battery | 51.2V | 100Ah | 58.4V | 100A | 575 | 350 | 180 | 45kg |

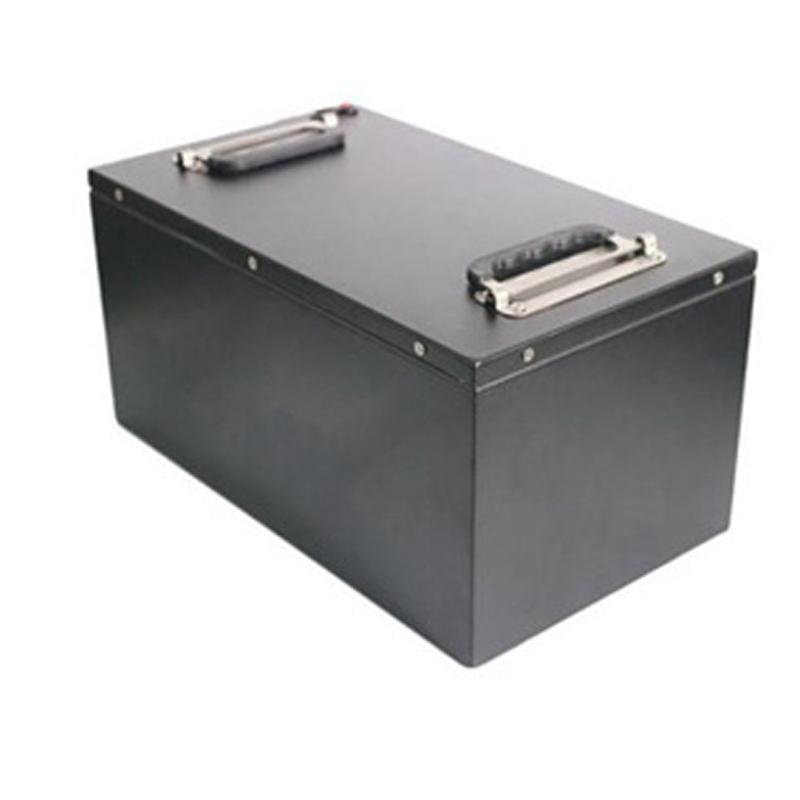

| 48V120Ah LFP Battery | 51.2V | 120Ah | 58.4V | 120A | 525 | 465 | 180 | 52kg |
| 72V20Ah LFP Battery | 76.8V | 20Ah | 87.6V | 30A | 350 | 200 | 180 | 14.5kg |
| 72V32Ah LFP Battery | 76.8V | 32Ah | 87.6V | 30A | 350 | 285 | 180 | 23.5kg |
| 72V60Ah LFP Battery | 76.8V | 60Ah | 87.6V | 60A | 435 | 415 | 180 | 40kg |

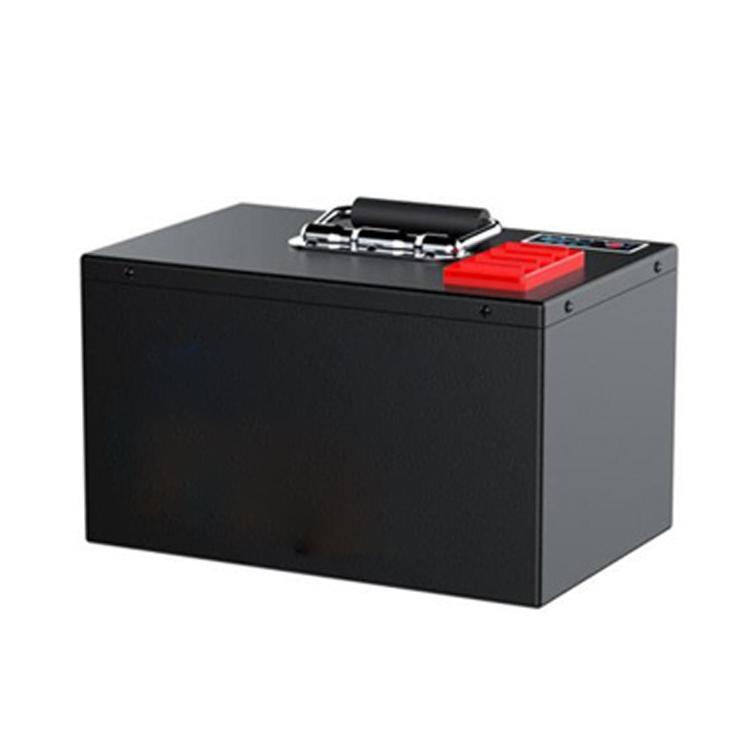

| 72V80Ah LFP Battery | 76.8V | 80Ah | 87.6V | 100A | 475 | 400 | 260 | 54kg |
electric scooter, electric wheelchair, e-bike, electric motorcycle, etc.
