Details

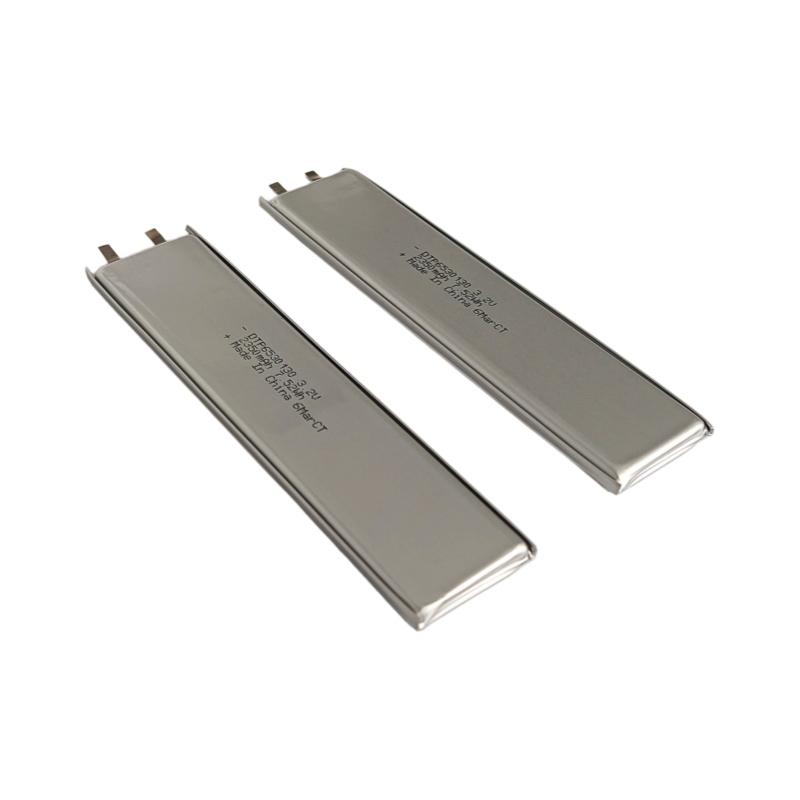

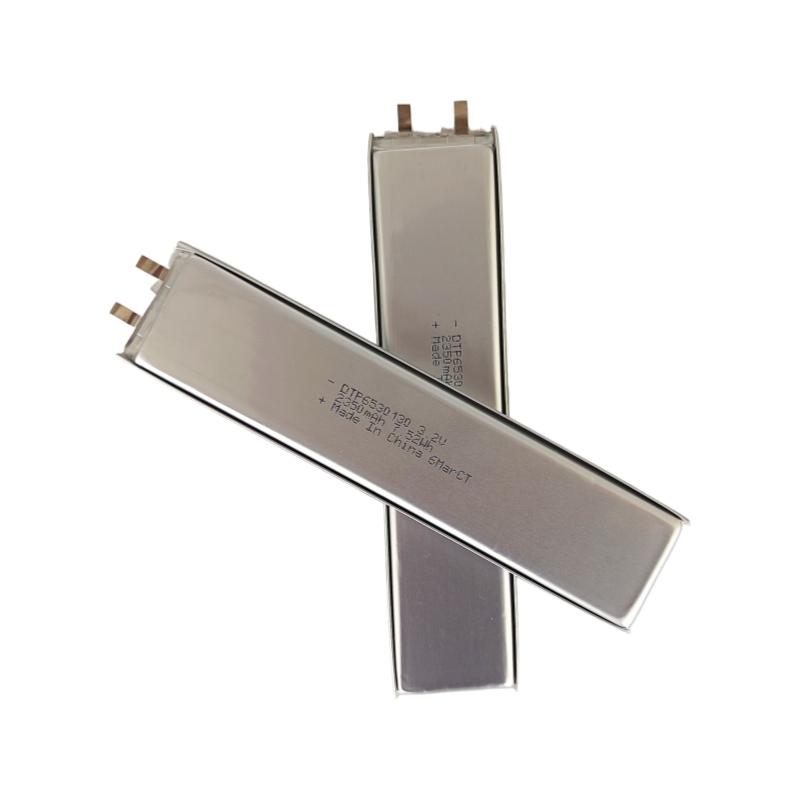

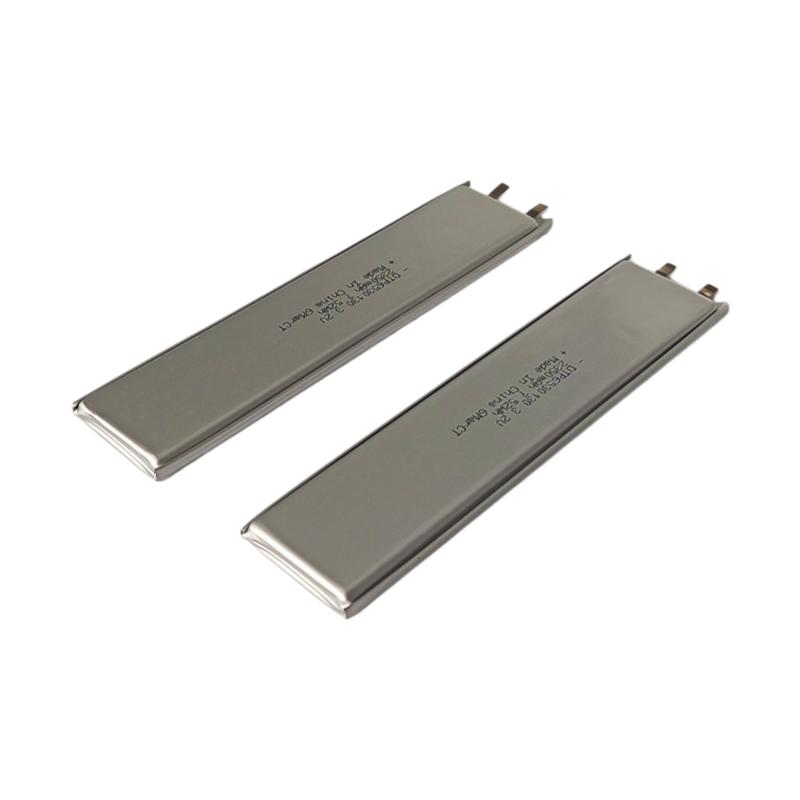

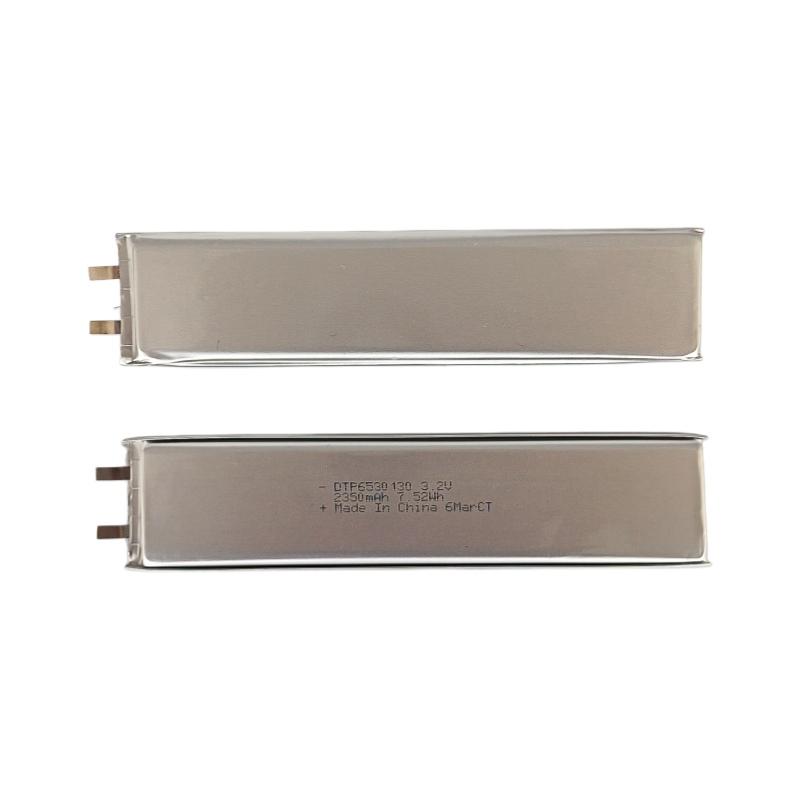

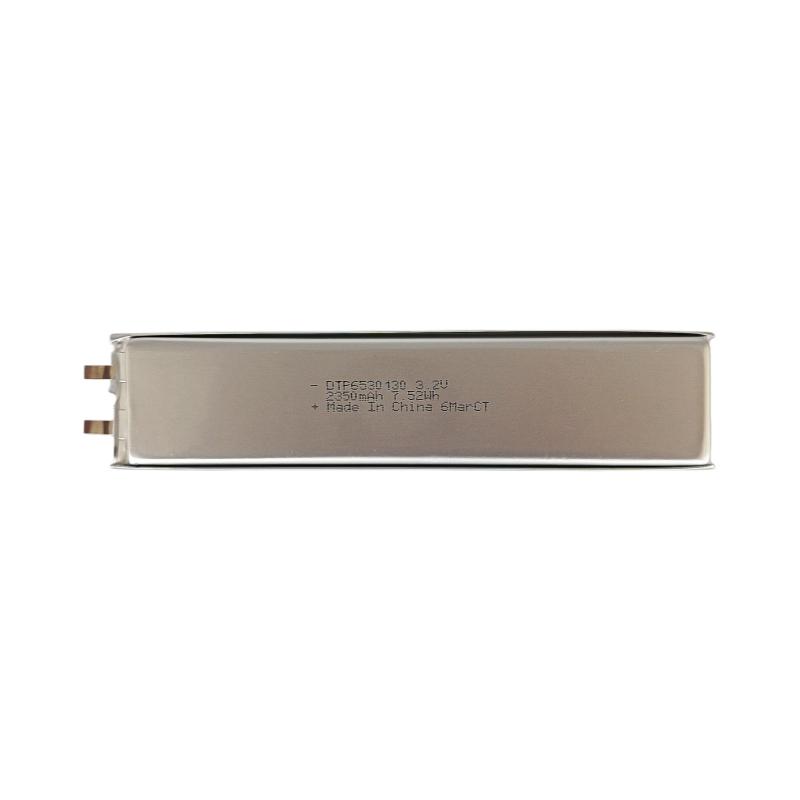

3.2V 2350mAh Li polymer battery cell features high energy density, low self-discharge, long cycle life, etc.
Description
High-Quality Cells: Pre-tested before shipping, ensuring consistent performance.
Long Cycle Life: [1000] cycles, ≥80% capacity retention.
Wide Operating Range: Charges 10°C to 45°C, discharges -20°C to 60°C.
Excellent Customer Support: Professional team for assistance and technical guidance.
Superior Performance: High energy density, longer runtime, low self-discharge, extended shelf life.
Durable & Reliable: Full protection (overcharge/over-discharge/short-circuit)
Customizable & Compatible: Custom voltage/capacity/dimensions, plug-and-play, easy installation, OEM/ODM supported.
Cost-Effective & Sustainable: Low TCO, minimal maintenance, recyclable components, Premium quality, competitive price.
| Item | Characteristics |
| Rated Capacity | 2350mAh |
| Minimum Capacity | 2350mAh |
| Nominal Voltage | 3.80V |
| Charge Limited Voltage | 4.35V |
| Discharge Cut-off Voltage | 3.00V |
| End-of-charge Current | 0.01C |
| Standard Charge | Charge with 0.2C(470mA) up to Limited Voltage, Charge with limited Voltage up to end-of-charge current. |
| Standard Discharge | Using 0.2C(470mA) constant current discharge to the Discharge Cut-off Voltage. |
| Maximum Continuous Charge Current | 0.5C (1175mA) |
| Maximum Continuous Discharge Current | 1C (2350mA) |
| Operating Temperature Range | Charge 0 ~ 45℃ |
| Operating Temperature Range | Discharge − 10 ~ 60℃ |
| Storage Temperature Range | -20 ~ 60℃ |
| Operating And Storage Humidity Range | 65±20% RH |
| Weight | Less than 47.0g |
- Before using the cell, be sure to thoroughly read the user’s manual and handling instructions.
- Charge the cell with a specified charger in accordance with the product specifications, using the CC/CV charging method. Reverse charging is strictly prohibited. Connecting the cell in reverse will not charge it and will degrade its charge-discharge performance and safety features, which may lead to overheating and leakage.
- Store batteries out of the reach of children to prevent accidental ingestion.
- If the cell is to be used by young children, their guardians must provide clear instructions on its proper handling.
- Batteries have a limited service life. If the operating time of the equipment powered by the cell becomes significantly shorter than usual, the cell has reached the end of its life. Replace it with a new one of the same type.
- When not using the cell for an extended period, remove it from the equipment and store it in a cool, low-humidity environment.
- When charging, using, or storing the cell pack, keep it away from objects or materials that may generate static electricity.
- If the terminals of the cell become dirty, wipe them with a dry cloth before use.
- Store the cells within the temperature range specified in the product specifications. After full discharge, we recommend charging them to 3.9~4.0V if they will not be used for an extended period.
- Do not exceed the following temperature ranges:
- Charging temperature range: 0℃ to 45℃
- Discharging temperature range: -10℃ to 60℃ (when the equipment is in use)
- Strictly prohibit putting the cell into a microwave oven, dryer, or high-pressure container.
- Strictly prohibit using the cell with dry cells or other primary batteries, or with new and old batteries, or batteries of a different model, type, or brand.
- Stop charging the cell if charging is not completed within the specified time.
- Stop using the cell if abnormal heat, odor, discoloration, deformation, or any other abnormal condition is detected during use, charging, or storage.
- Keep the cell away from fire immediately if leakage or a foul odor is detected.
- If leaking liquid comes into contact with your skin or clothes, rinse thoroughly with fresh water immediately.
- If liquid leaking from the cell gets into your eyes, do not rub them. Rinse thoroughly with clean water and seek medical attention immediately.
