Many buyers compare lithium battery specifications side by side without noticing a crucial detail: the capacity figure printed on the label rarely matches what your device actually receives. Understanding the difference between nominal and rated capacity can spare you from expensive mismatches — whether you’re powering medical instruments, robotic platforms, or industrial systems. This guide unpacks both values, explains what influences real-world performance, and shows you how to pick a battery that genuinely meets your energy demands.

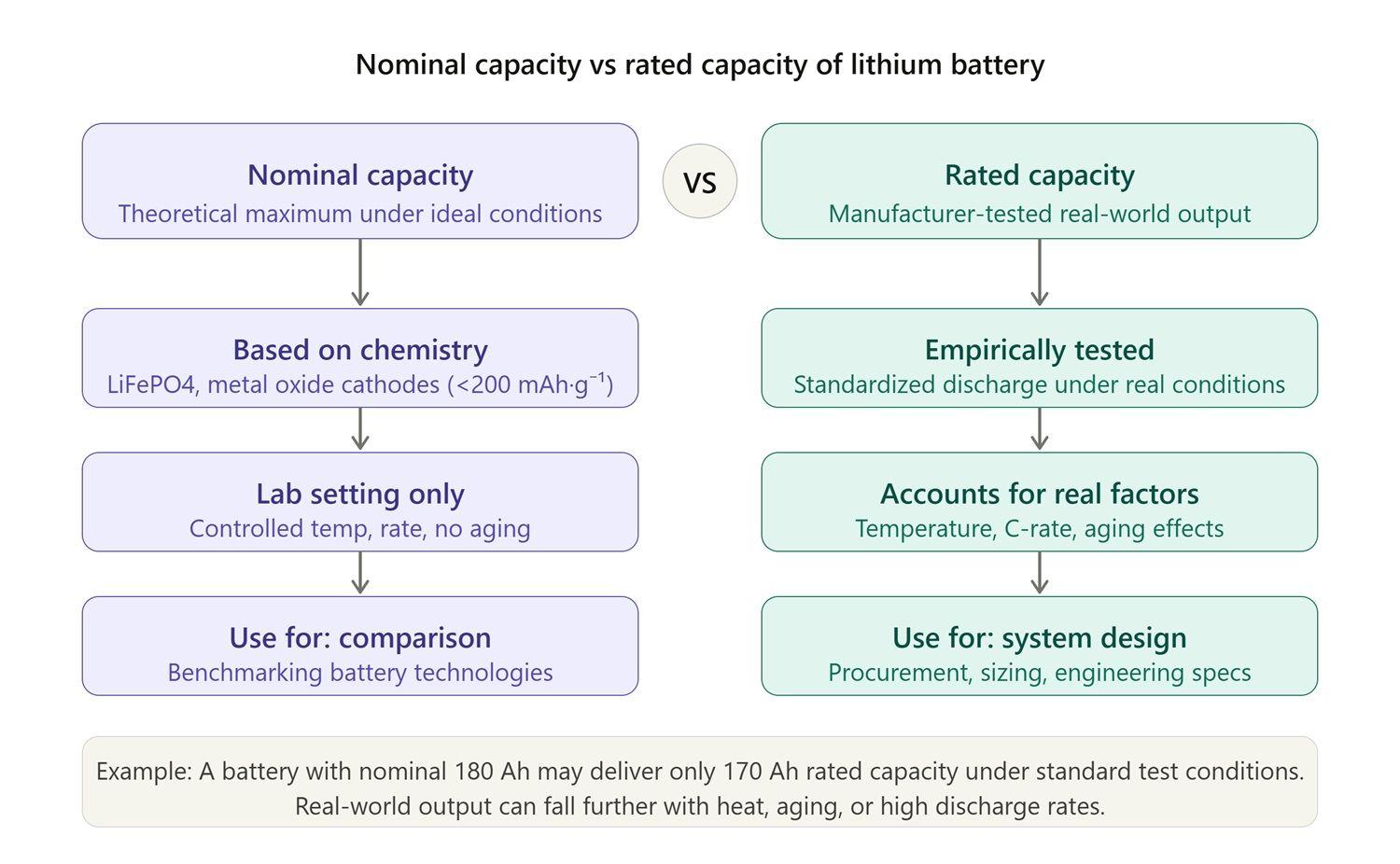

Nominal capacity represents the theoretical maximum energy a lithium battery can deliver under perfect, laboratory-controlled conditions. Engineers derive this number from the electrochemistry of the active materials — such as lithium metal oxide or lithium iron phosphate (LiFePO₄) cathodes — which typically yield less than 200 mAh·g⁻¹.
Think of nominal capacity as a lab benchmark, not a field measurement. A cell labeled 180 Ah might achieve that value in a climate-controlled test environment, but temperature swings, discharge rates, and aging all shave away at that ceiling once the battery is deployed. An analysis spanning 169 lithium-ion cell experiments confirmed that sustained operation at 35 °C, 40 °C, and 45 °C measurably degrades effective output. Advanced validation using LightGBM and linear interpolation reached an optimal RMSE of 0.010, revealing just how far real performance can wander from theoretical ideals.
Nominal capacity is most valuable when you compare battery chemistries or evaluate emerging technologies — not for forecasting the energy your system will draw day to day.
Rated capacity is the figure a manufacturer guarantees under standardized test conditions. Unlike nominal capacity, it accounts for real-world variables: specified temperature ranges, defined discharge rates, and expected aging effects. Manufacturers establish this number through controlled discharge testing before the battery leaves the factory.
For instance, a lithium-ion cell with a nominal capacity of 180 Ah might carry a rated capacity of 170 Ah — already reflecting the losses that occur under normal operating conditions.
Rated capacity gives you a practical, actionable specification. For consumer electronics, security installations, or industrial machinery, this is the number that drives reliable system design. When you see rated capacity on a datasheet, you’re looking at what the battery will deliver in the field — not in a sanitized laboratory scenario.
Nominal and rated capacities rely on different measurement approaches, each with its own trade-offs:
- Direct Measurement: Engineers fully cycle the cell under controlled conditions and integrate the charge transferred. Variations in C-rate and temperature can create inconsistencies between test runs.
- Analysis-Based Methods: Mathematical models estimate capacity indirectly. Systematic errors can creep in through the assumptions built into the model.
- State-of-Charge (SOC) Methods: These techniques infer capacity from the battery’s estimated charge level. Any inaccuracy in voltage or current sensors propagates directly into the final capacity figure.
- Data-Driven Methods: Machine learning algorithms trained on cycling data can predict capacity with increasing fidelity, though overfitting remains a risk if the training dataset is too narrow.
Each method fits different needs. Direct measurement suits certification, while data-driven models excel at predictive maintenance for batteries already operating in the field.
| Aspect | Nominal Capacity | Rated Capacity |
| What it describes | Theoretical maximum energy output | Manufacturer-verified output under standardized real-world conditions |
| How it is determined | Derived from material chemistry and theoretical models | Measured through empirical, controlled discharge testing |
| Real-world relevance | Low | High |
| Best used for | Comparing battery technologies | Sizing systems and making procurement decisions |
The gap between these two values widens as batteries age. Calendar aging in lithium cells follows Arrhenius-form kinetics — research shows that capacity-loss projections calculated this way align with National Renewable Energy Laboratory data, deviating by only 0.9–1.4% after five years.
Performance Efficiency
Rated capacity directly dictates how much energy reaches your system. Engineers monitor health indicators (HIs) — such as median discharge voltage and current decay time — to track how efficiently a battery utilizes its rated capacity over time. Pearson’s and Spearman’s rank correlation coefficients between these indicators and actual capacity regularly exceed 0.8, confirming their diagnostic reliability. Advanced techniques like dual Gaussian Process Regression (GPR) now forecast the remaining useful life of large-capacity lithium-ion packs with high precision, helping operators schedule service before a critical drop in capacity occurs.
Lifespan and End-of-Life Thresholds
Most manufacturers define end of life (EOL) as the point where usable capacity falls to 70–80% of the original rated capacity. Temperature dramatically accelerates this decline: cells cycled continuously at 45 °C may reach EOL in fewer than 1,000 cycles, whereas those maintained at lower temperatures can sustain over 1,500 cycles while still retaining more than 80% capacity. Real-world data backs this up: at 40 °C, a battery may hold above 80% capacity after 860 full cycles but drop to 70% by cycle 1,530. These thresholds matter enormously in applications where replacing a battery is costly or disrupts operations.
Choosing the right battery comes down to matching rated capacity to your actual application demands. Here’s a practical framework:
1. Specify your energy requirements precisely. Medical devices demand tight tolerances; industrial robots may tolerate wider variation. Know your minimum acceptable capacity before comparing products.
2. Track key health indicators over time. Median discharge voltage and current decay time correlate strongly with actual capacity (Spearman coefficients above 0.99 in documented studies). Integrate these metrics into your battery management system.
3. Factor in your thermal environment. If your application regularly operates above 35 °C, expect accelerated capacity fade. Size your battery with a buffer that accounts for this degradation.
4. Read datasheets critically. Focus on rated capacity, cycle life at your operating temperature, and EOL thresholds — not just the headline nominal number.
5. Explore custom battery solutions for demanding use cases. Off-the-shelf specs rarely match the exact voltage, capacity, and form factor needs of specialized equipment. Custom configurations eliminate that compromise.
The difference between nominal and rated capacity is far from a technical footnote — it shapes every decision about battery performance, system reliability, and total cost of ownership. Nominal capacity tells you the theoretical ceiling; rated capacity tells you what you’ll actually get. To bridge the gap between spec sheet and real-world results, you must account for temperature, discharge rates, and aging. For critical applications — from medical instruments to industrial automation — always size to rated capacity, build in a thermal buffer, and choose suppliers who publish transparent lifecycle data.
How do nominal and rated capacity differ?
Nominal capacity is a theoretical maximum derived from a battery’s chemistry under ideal conditions. Rated capacity is the manufacturer-verified figure from standardized real-world tests — it is always lower and far more practical for system design.
Why does actual capacity often fall below rated capacity?
Real-world factors reduce effective output below the rated figure: elevated temperatures, high discharge rates, and cumulative aging all degrade performance. Rated capacity itself assumes standard conditions that may not perfectly match your deployment environment.
How many cycles before a lithium battery reaches end of life?
Cycle life depends heavily on temperature and usage stress. At 40 °C, a battery may sustain over 80% of its rated capacity for roughly 860 full cycles and drop to 70% around 1,530 cycles. Hotter conditions shorten this timeline substantially.
Can you restore lost rated capacity?
No — capacity loss from aging is largely irreversible. You can slow the decline by maintaining moderate storage temperatures, using gentle charge/discharge rates, and avoiding deep cycling, but you cannot reverse it.
Which capacity figure should I use for system sizing?
Always design around rated capacity. Nominal capacity overstates real-world delivery, whereas rated capacity reflects what the battery will provide under the conditions your application creates.
