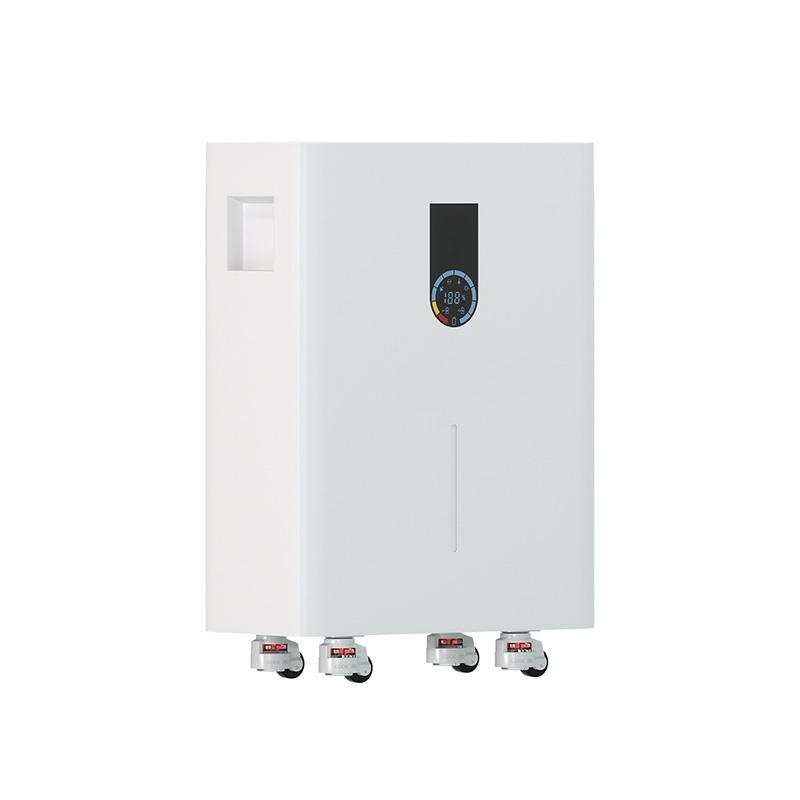

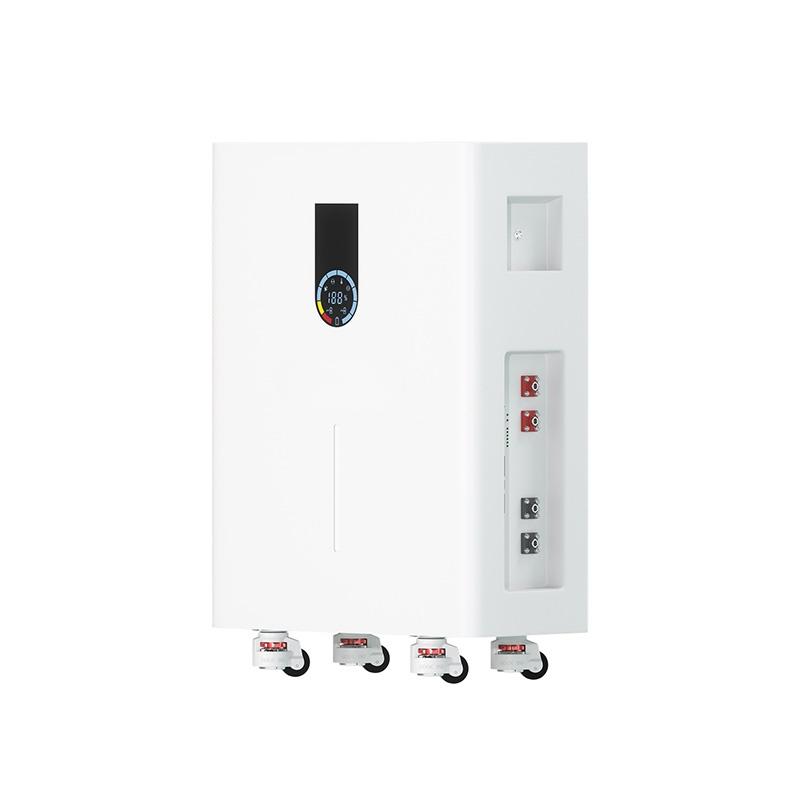

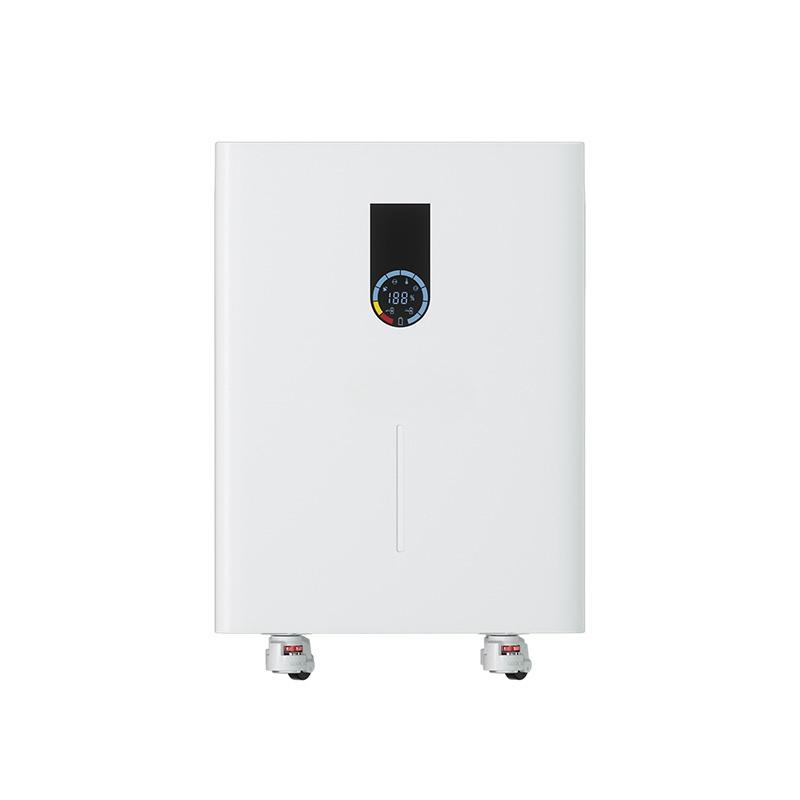

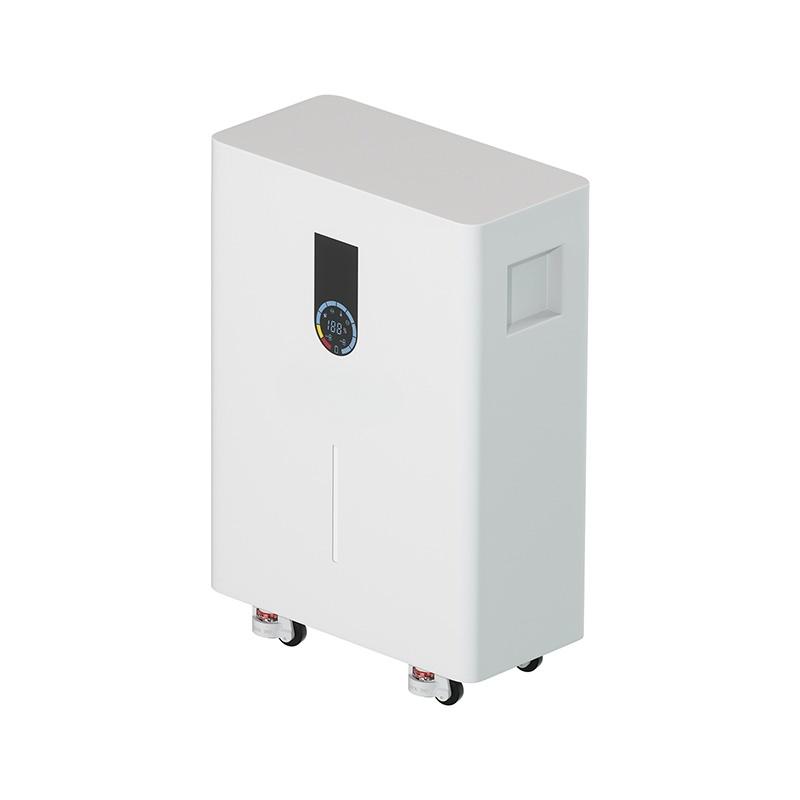

51.2V 300Ah/342Ah/600Ah Vertical Household Residential Home LiFePO4 Energy Storage Battery

  • 51.2V 300Ah/342Ah/600Ah Vertical Household Residential LiFePO4 Energy Storage Battery
  • 51.2V 300Ah/342Ah/600Ah Vertical Household Residential LiFePO4 Energy Storage Battery
  • 51.2V 300Ah/342Ah/600Ah Vertical Household Residential LiFePO4 Energy Storage Battery
  • 51.2V 300Ah/342Ah/600Ah Vertical Household Residential LiFePO4 Energy Storage Battery

Details

51.2V 300Ah/342Ah/600Ah Vertical Household Residential LiFePO4 Energy Storage Battery can move freely and conveniently,high-performance BMS protection and management battery system,with a wider range of use and longer lifespan than traditional battery

Description

The 51.2V 300Ah/342Ah/600Ah vertical residential household energy storage lithium battery, a long-lived lithium iron phosphate battery, vertical energy storage battery can move freely and conveniently, high-performance BMS protection and management battery system, with a wider range of use and longer lifespan than traditional batteries.

This battery BMS supports simultaneous communication and docking with multiple inverter brands.

Features

LiFePo4 cell class A

Support 15pcs In Parallel

Vertical Design With Wheels Is Easier To Move

Compatible With Multiple Inverter Brands

6000 cycle times DOD80%

BT/WIFI is optional

Ip67 Optional

Parameters

ModelSPV-51.2V-300AhSPV-51.2V-342AhSPV-51.2V-600Ah
Standard Voltage51.2V
Standard Capacity300Ah342Ah600Ah
Standard Energy15.36kWh17.5kWh30.7kWh
Working Voltage43.2-57.6V
Standard Charge Current150A150A300A
Standard Discharge Current200A
Suggested DOD80%
Cycle Life>6000 cycles
IP RatingIP21( IP67 optional)
Operating temperature for discharge-20℃ ~60℃
Operating temperature for charge0℃ ~45℃
Max Parallel15pcs
CommunicationRS232/ CAN/ RS485(WI FI/ BT optional)
DisplayLCD
Warranty5 years
CertificateUN38. 3/ MSDS/ CE/ ROHS/ FCC
N.W./unit(kg)120128250
G.W./ unit(kg)139147284
Product Size/unit(mm)810*550*270810*550*2701150*800*270
Meas/unit(mm)880*633*422880*633*4221210*885*470

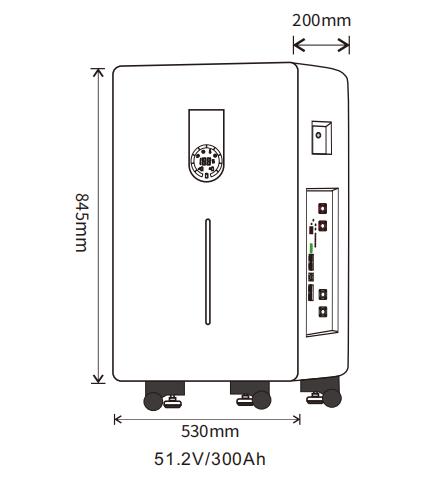

Product Drawing

Product drawing of 51.2V 300Ah Vertical Household Residential LiFePO4 Energy Storage Battery

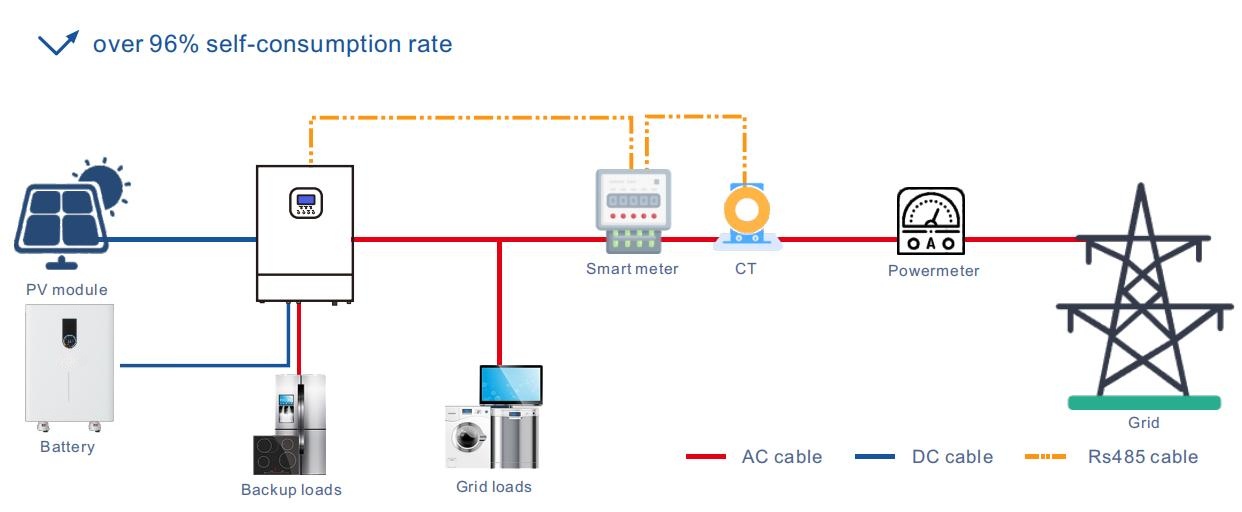

Product Connection Diagram

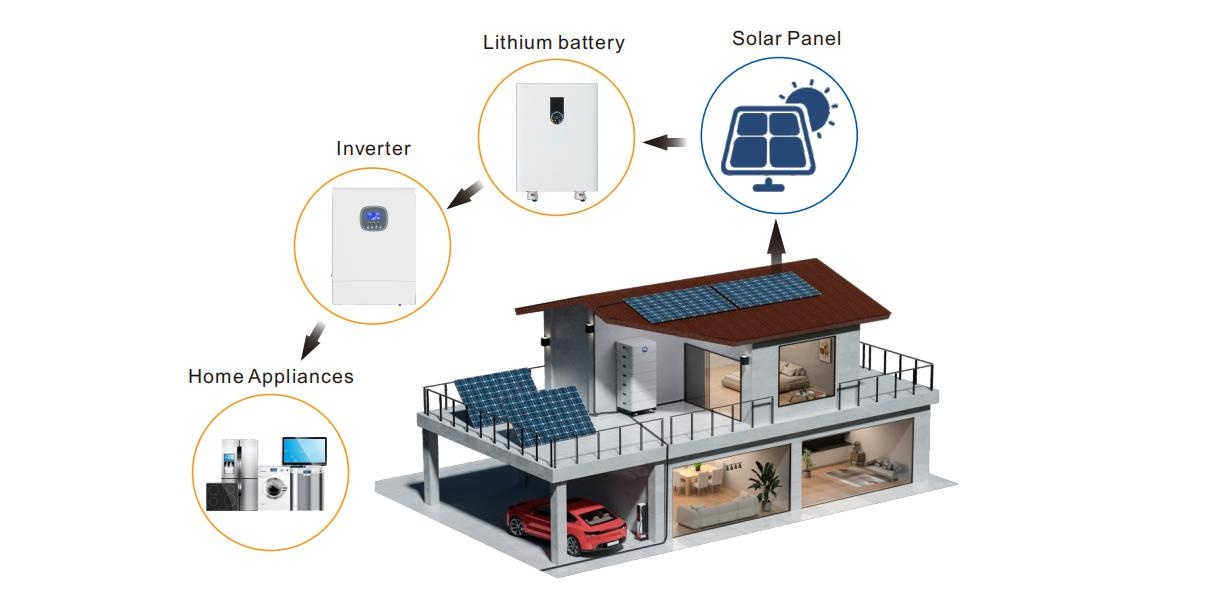

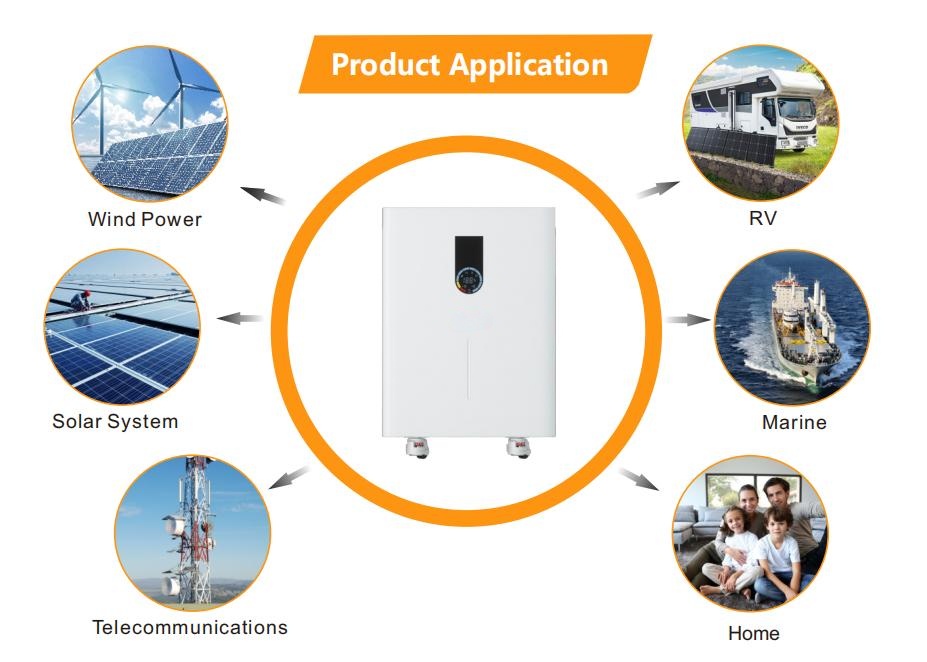

Product Application
