Details
Samsung 18650 li ion battery 3200mah 3.65v inr18650 32e cell is applied in e-bike, e-scooter, LED flashlight and etc.
Description

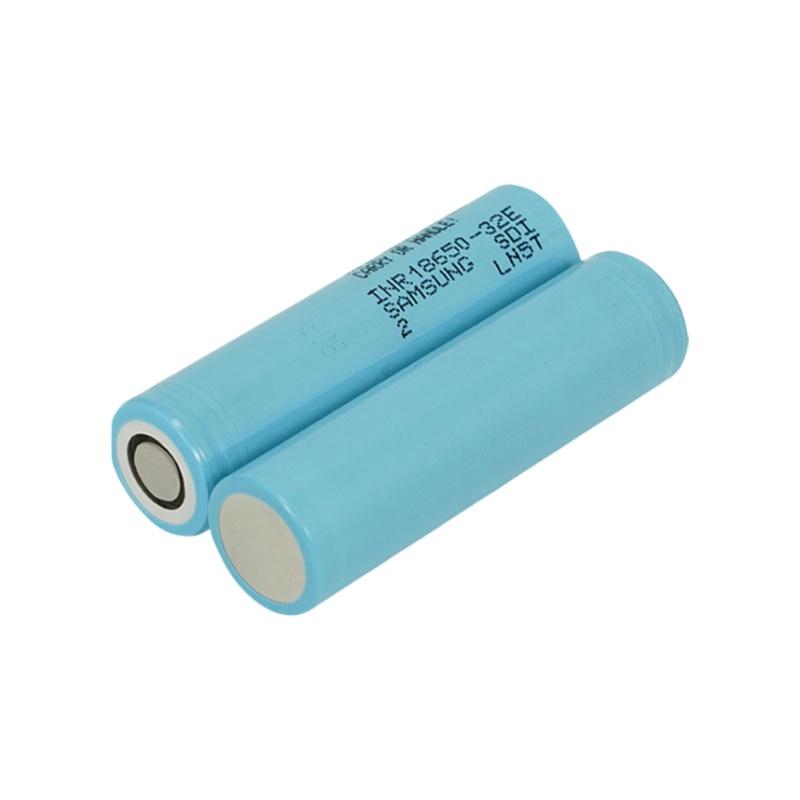

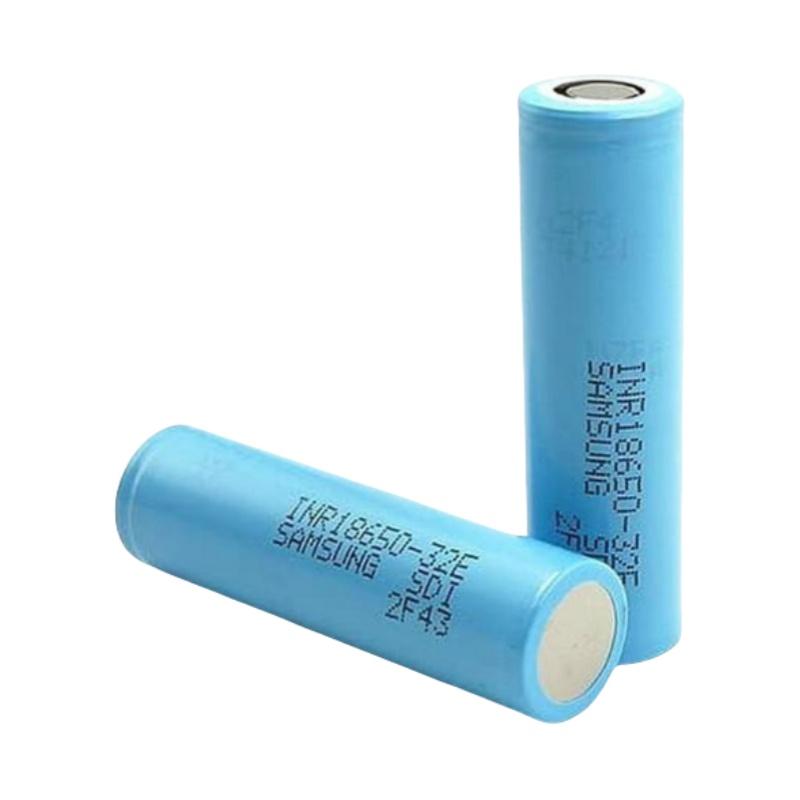

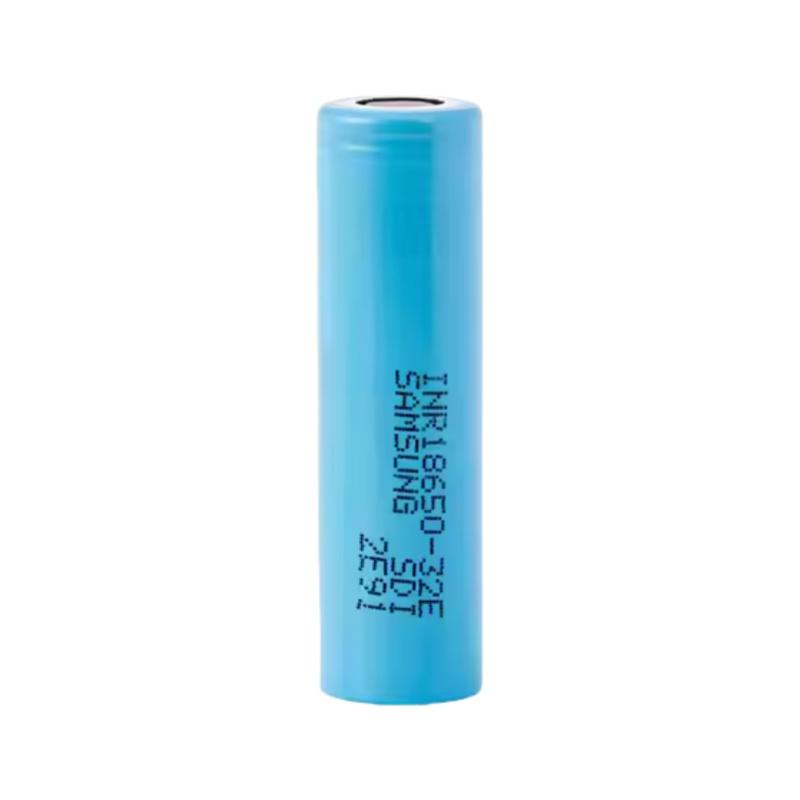

The Samsung INR18650 32E is a lithium-ion rechargeable cell with a with a capacity of 3200mAh and a nominal voltage of 3.65V. It is applied in e-bike, e-scooter, LED flashlight and etc. For more information on Samsung INR18650 32E, please contact us!
Item | Specification |
Model | INR18650-32E |
Typical Capacity | 3,200mAh (0.2C, 2.50V discharge) |
Charging Voltage | 4.2V |
Nominal Voltage | 3.65V (0.2C discharge) |
Charging Method | CC-CV (constant voltage with limited current) |
Charging Current | Standard charge: 960mA |
Charging Time | Standard charge: 5hours |
Max. Charge Current | 3,200mA (not for cycle life) |
Max. Discharge Current | 6,400mA (for continuous discharge) 9,600mA (not for continuous discharge) |
Discharge Cut-off Voltage | 2.50V |
Initial Internal Impedance | ≤35mΩ(AC 1kHz) |
Cell Weight | 50g max |

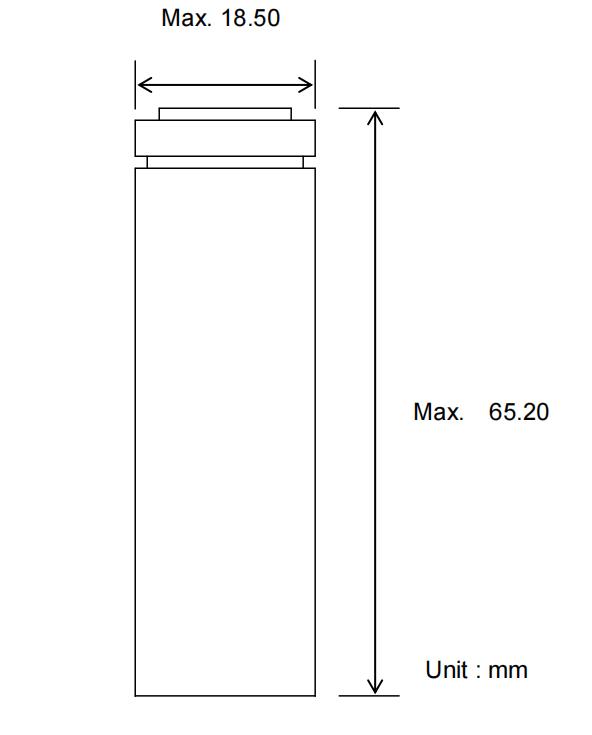

Cell Dimension | Height: 65.2mm max Diameter(max.): Φ18.50 mm |
Operating Temperature (Cell Surface Temperature) | Charge: 0 to 45°C Discharge: -20 to 60°C |
Storage Temperature | 1 year: -20~25°C 3 months: -20~45°C 1 month: -20~60°C |
Don't charge the battery by an electric outlet directly or a cigarette lighter charger.
Don't leave the battery near the fire or a heated source.
Don't throw the battery into the fire.
Don't charge the battery reversely.
Don't leave, charge or use the battery in a car or similar place where inside of temperature may be over 60℃ .
Don't immerse, throw, wet the battery in water / seawater.
Don't fold the battery cased with laminated film such as pouch and Polymer.
Don't store the battery in a pocket or a bag together with metallic objects such as keys, necklaces, hairpins, coins, or screws.
Don't short circuit (+) and (-) terminals with metallic object intentionally.
Don't pierce the battery with a sharp object such as a needle, screw drivers.
Don't heat partial area of the battery with heated objects such as soldering iron.
Don't hit with heavy objects such as a hammer, weight.
Don't step on the battery and throw or drop the battery on the hard floor to avoid mechanical hock.
Don't disassemble the battery or modify the battery design including electric circuit.
Don't solder on the battery directly.
Don't use seriously scarred or deformed battery.
Don't put the battery into a microwave oven, dryer ,or high-pressure container.
Don't use or assemble the battery with other makers' batteries, different types and/or models of batteries
Don't use or assemble old and new batteries together.
