Details

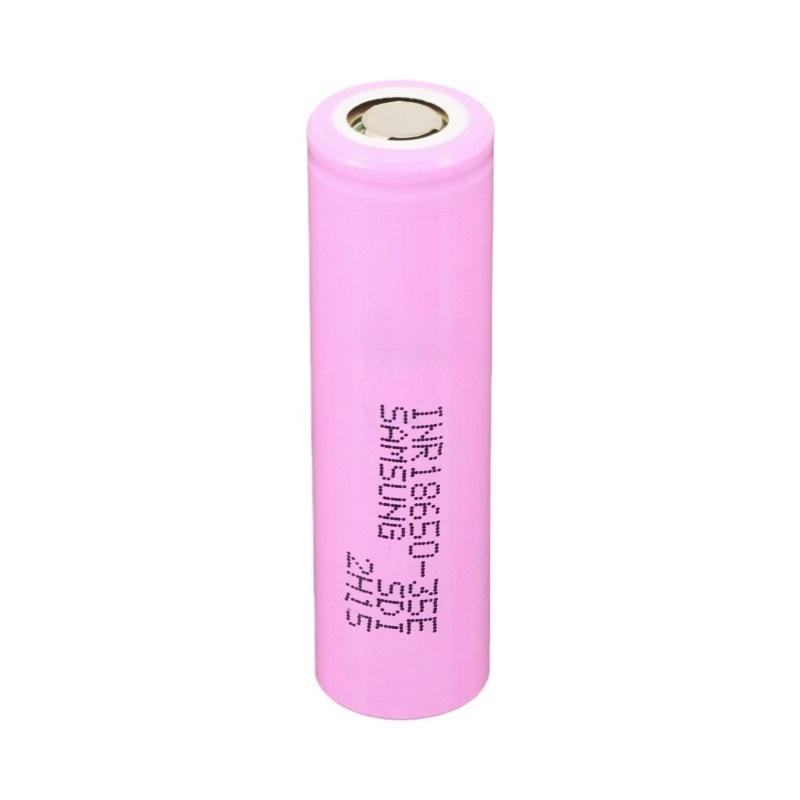

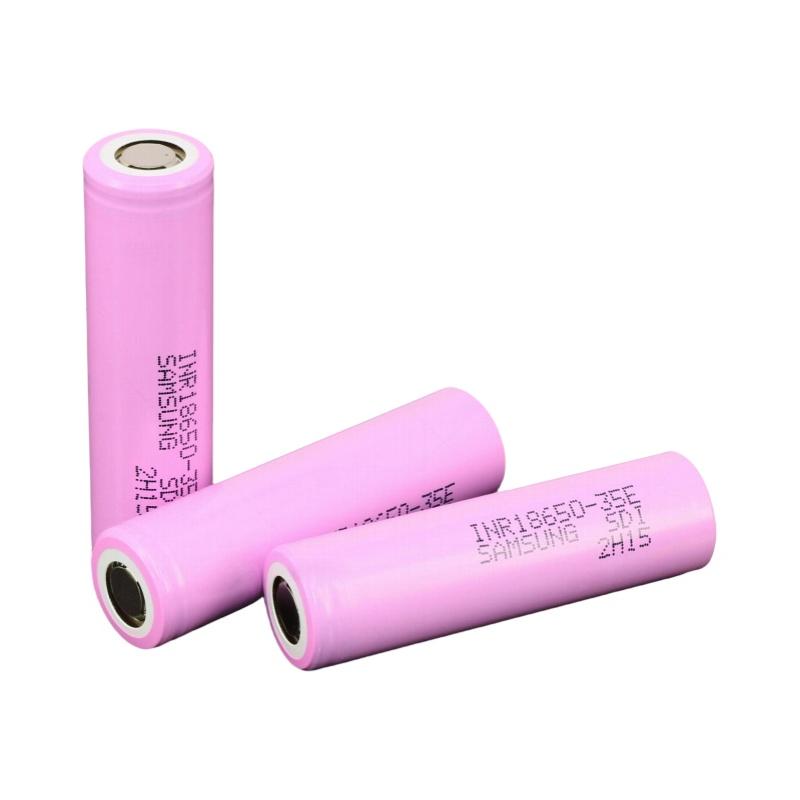

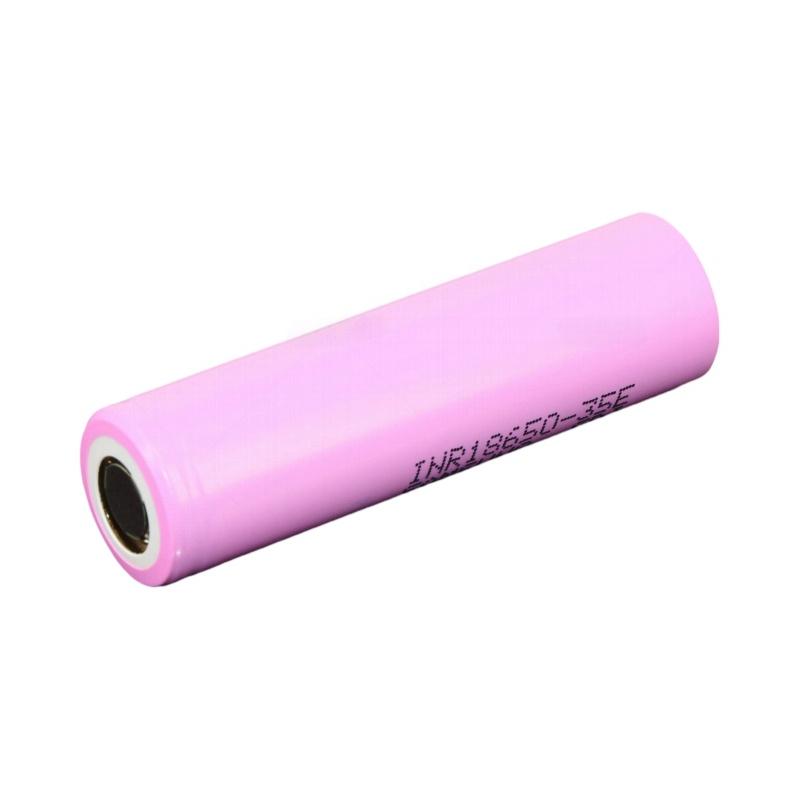

Samsung 18650 Battery 3500mAh 3.6V INR18650-35E Lithium Ion Rechargeable Cell is widely applied in EV, e-bike, e-scooter and etc.
Description
The Samsung INR18650-35E lithium ion rechargeable cell, with a capacity of 3500mAh and a maximum continuous discharge current of 8A. It is widely applied in EV, e-bike, e-scooter and etc. Its high capacity ensures extended operation time, while stable current performance makes it suitable for demanding use. Brand new Samsung cells guarantee quality, durability, and safe operation.
Portable IT
Power-Tool
Medical
E-Bike, E-Scooter
EV/LEV
ESS/UPS
Item | Specification |
Model | INR18650-35E |
Nominal Capacity | 3500mAh |
Charging Voltage | 4.2V |
Nominal Voltage | 3.60V |
Charging Method | CC-CV (constant voltage with limited current) |
Charging Current | Standard charge: 1700mA For cycle life: 1020mA |
Charging Time | Standard charge: 4hours |
Max. Charge Current | 2,000mA (not for cycle life) |
Max. Discharge Current | 8,000mA (for continuous discharge) 13,000mA (not for continuous discharge) |
Discharge Cut-off Voltage | 2.65V |
Cell Weight | 50g max |

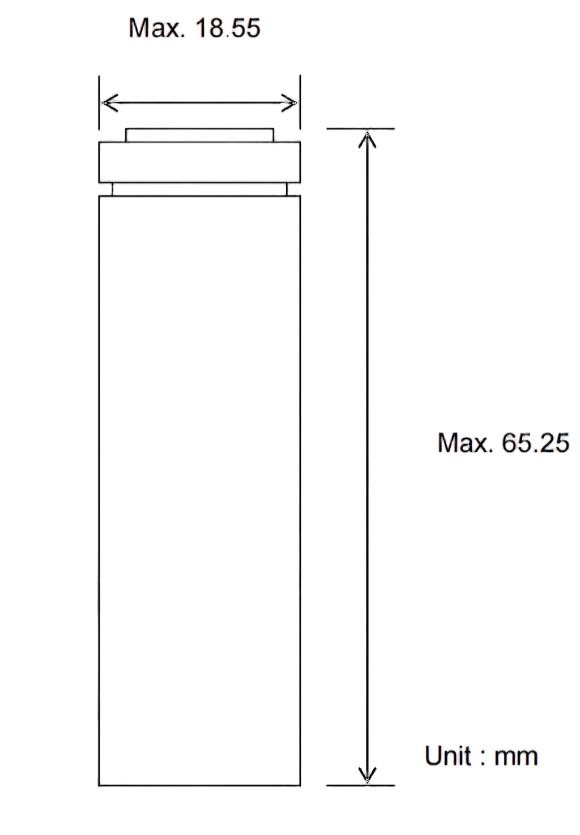

Cell Dimension | Height: Max.65.25 mm Diameter: Max.Φ18.55 mm |
Operating Temperature (Cell Surface Temperature) | Charge: 0 to 45°C Discharge: -10 to 60°C |
Storage Temperature | 1 year: -20~25°C 3 months: -20~45°C 1 month: -20~60°C |
Initial Internal Impedance | ≤35mΩ（AC 1kHz） |
Don't charge the battery by an electric outlet directly or a cigarette lighter charger.
Don't leave the battery near the fire or a heated source.
Don't throw the battery into the fire.
Don't charge the battery reversely.
Don't leave, charge or use the battery in a car or similar place where inside of temperature may be over 60℃ .
Don't immerse, throw, wet the battery in water / seawater.
Don't fold the battery cased with laminated film such as pouch and Polymer.
Don't store the battery in a pocket or a bag together with metallic objects such as keys, necklaces, hairpins, coins, or screws.
Don't short circuit (+) and (-) terminals with metallic object intentionally.
Don't pierce the battery with a sharp object such as a needle, screw drivers.
Don't heat partial area of the battery with heated objects such as soldering iron.
Don't hit with heavy objects such as a hammer, weight.
Don't step on the battery and throw or drop the battery on the hard floor to avoid mechanical hock.
Don't disassemble the battery or modify the battery design including electric circuit.
Don't solder on the battery directly.
Don't use seriously scarred or deformed battery.
Don't put the battery into a microwave oven, dryer ,or high-pressure container.
Don't use or assemble the battery with other makers' batteries, different types and/or models of batteries
Don't use or assemble old and new batteries together.
