Details

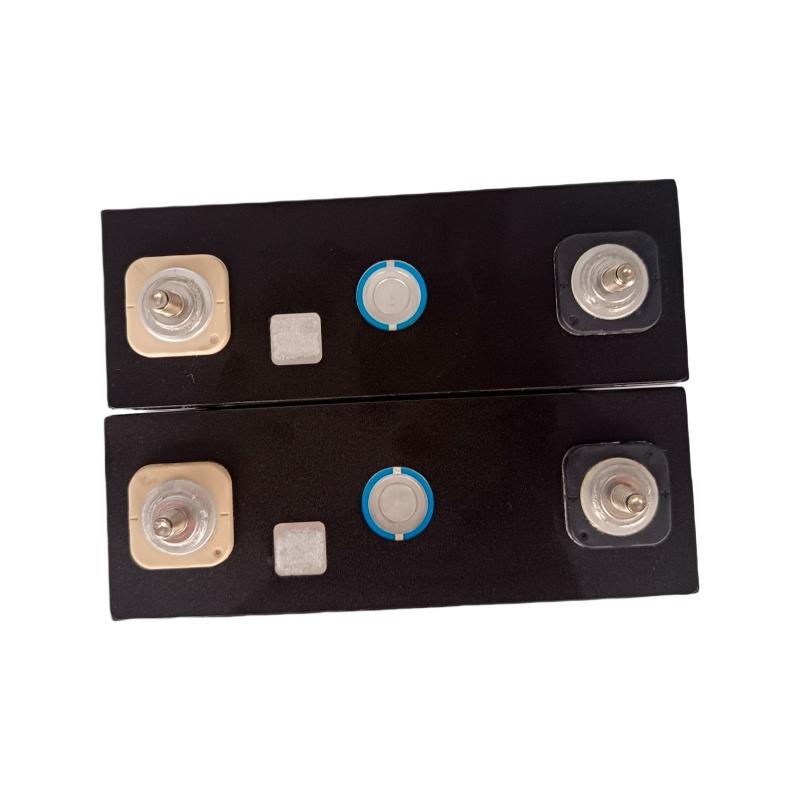

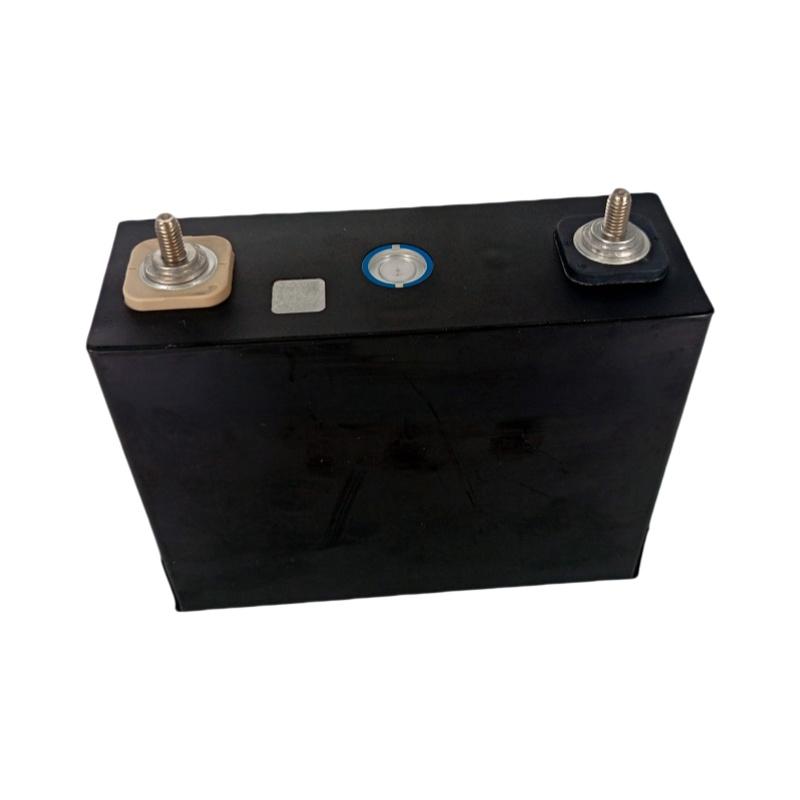

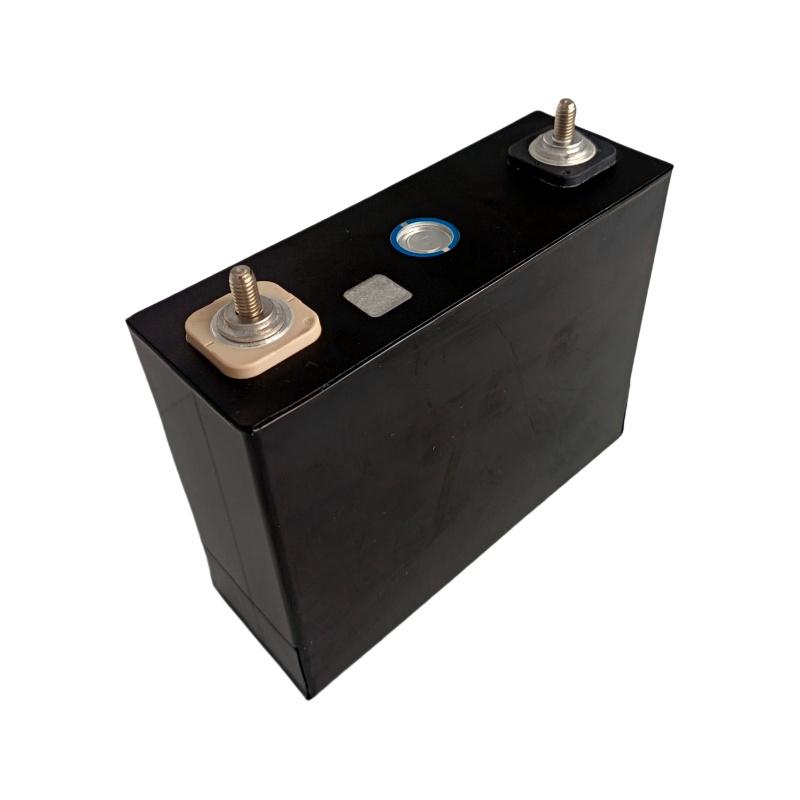

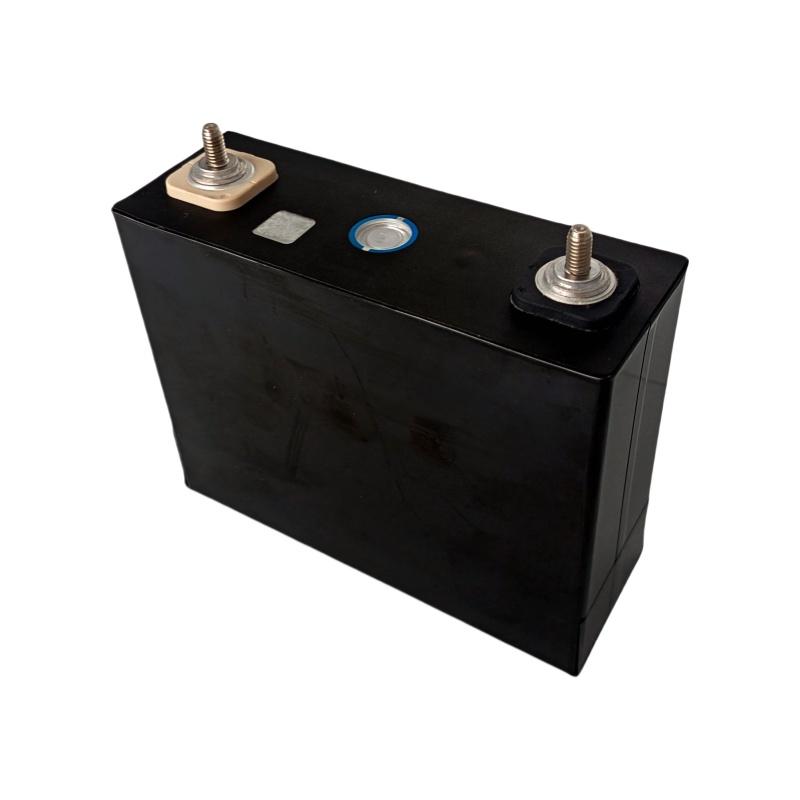

3v 80ah sodium ion prismatic battery cell for sale is mainly applied in electric vehicle.
Description
This sodium ion battery is a rechargeable battery with a with a capacity of 80Ah and a nominal voltage of 3V. It is mainly applied in electric vehicle. For more information about the 3V 80Ah sodium ion battery, please contact us.
| Item | Specification |
| Nominal Capacity | 80Ah（Charge 0.2C and discharge 0.2C to 2.0V） |
| Nominal Voltage | 3V |
| Max. Voltage | 4V |
| Standard Charging Current | 14.8A(CC,CV,25±2℃) |
| Standard Charging Cut-off Current | 3.7A |
| Standard Discharge Current | 14.8A(CC,25±2℃) |
| Standard Discharge Cut-off Voltage | 2.0V |
| AC Internal Resistance | 0.25-0.45mΩ(Communication at 1KHz conditions, BOL) |
| DC Internal Resistance | ≤1.7mΩ(25℃,50%SOC, 1C discharge 10S) |
| Working Temperature | Charge: 0~55℃Discharge: -40~55℃ |
| Storage Temperature | -45℃~60℃ |
| Weight | 1915±30g |

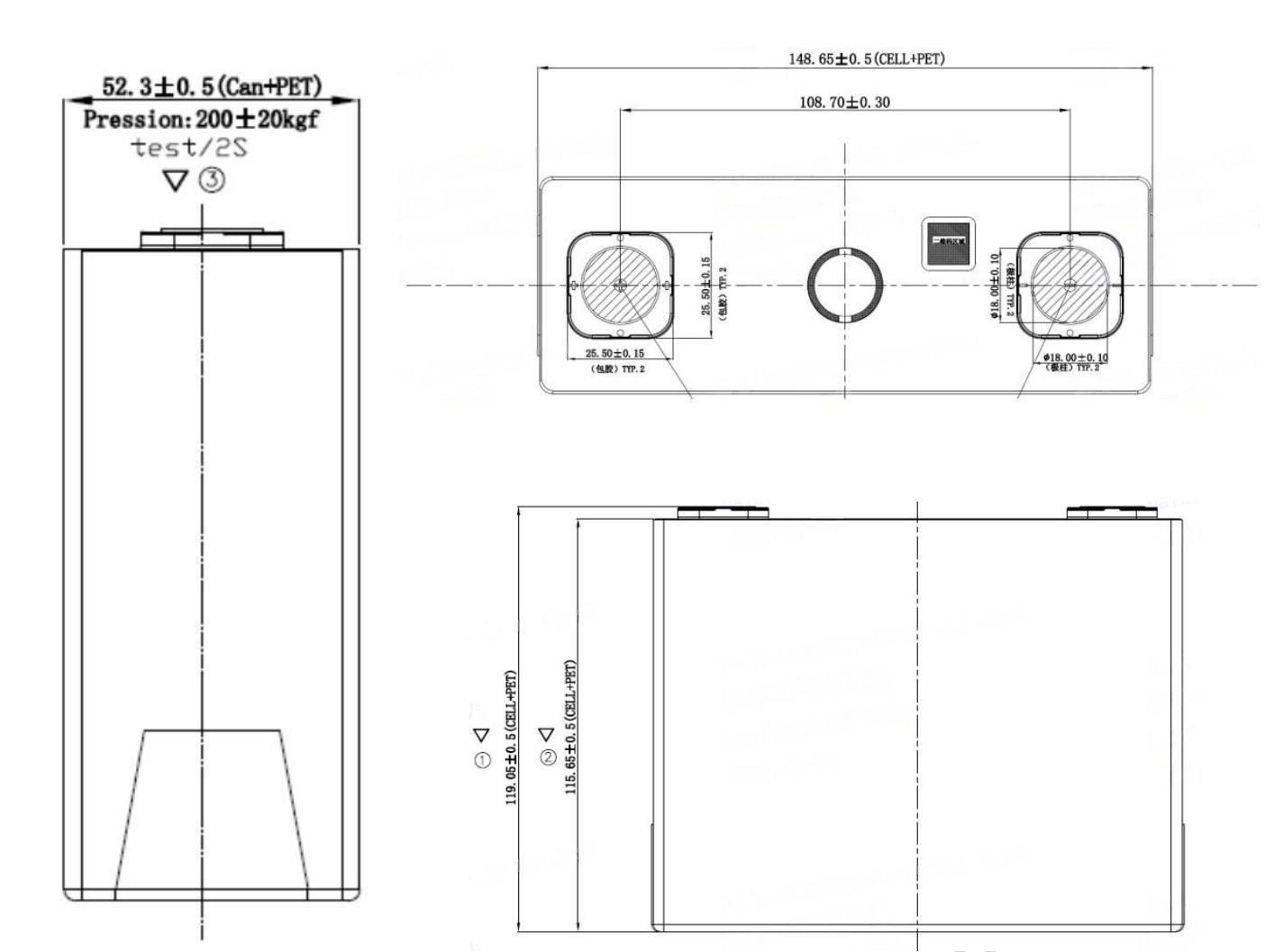

| Dimension(T*W*H) | 52.30*148.65*115.65mm (excluding pole column) |
Do not use different charging devices.
Do not exceed the maximum charging rate.
Do not disassemble or modify the battery.
Do not throw or hit the battery.
Do not use sharp objects to puncture the battery (e.g., nails, knives, pencils, drill).
It cannot be mixed with other batteries.
Do not solder the battery directly.
The battery should not be loaded during manufacturing.
Do not package old and new batteries together.
Do not expose the battery to high temperatures (e.g., fire).
Do not put the battery in a microwave oven or high pressure container.
Do not invert the battery.
Do not contact the positive and negative poles with metal materials (e.g., metal, wire).
Do not allow water or seawater to submerge or wet the battery.
Do not bend the battery without permission from the battery manufacturer
