The 18650 battery is one of the most widely used lithium-ion cells in the world. You'll find it inside e-bikes, power tools, laptop battery packs, flashlights, drones, and even some electric vehicles. But browse any online store and you'll see dozens of listings offering different voltages, capacities, and labels — often with no clear explanation of what those numbers actually mean.
This guide breaks down every essential 18650 battery spec in plain English. Whether you're a DIY builder, an electronics engineer, or simply replacing a cell in a flashlight, you'll know exactly what to look for.
The name "18650" isn't a model number — it's a size code. Each digit tells you something about the cell's physical dimensions:
| Digits | Meaning | Value |
| 18 | Diameter (mm) | 18 mm |
| 65 | Height / Length (mm) | 65 mm |
| 0 | Cell shape | Cylindrical |
So a standard 18650 cell measures 18 mm wide and 65 mm tall.
Important: Protected cells include a small safety circuit board on the bottom, which can add 2–3 mm to the overall length, pushing them to 67–68 mm. Always check the specs if your device has a tight battery compartment.
| Specification | Typical Value | Notes |
| Nominal Voltage | 3.6V – 3.7V | Average working voltage |
| Max Charge Voltage | 4.2V | Never exceed — fire risk |
| Discharge Cut-off | 2.5V – 3.0V | Going below this can damage the cell |
| Capacity Range | 1500 – 3600mAh | Higher isn’t always better |
| Max Discharge Current | 5A – 36A+ | Depends on chemistry and model |
| Weight | 45 – 50g approx | Varies by manufacturer |
| Cycle Life | 300 – 1000+ cycles | Depends heavily on usage conditions |
| Dimensions | 18 mm (D) × 65 mm (H) | Protected cells: up to 68 mm long |
This is the number one source of confusion for new buyers. You'll often see three different voltage numbers for the same cell. Here's what they actually mean:
| Voltage | Name | What It Means |
| 4.2V | Full Charge Voltage | Battery is 100% charged. Never go above this. |
| 3.6V / 3.7V | Nominal Voltage | The average voltage during a full discharge. This is what's printed on the label. |
| 2.5V – 3.0V | Cut-off Voltage | The empty state. Most BMS units cut power here to prevent damage. |
Think of it like a car's fuel tank: 4.2V is a full tank, 2.5V is empty, and 3.6V is the average fuel level during a typical drive. That average is your nominal voltage.
Capacity tells you how much energy the cell can store, measured in milliampere-hours (mAh). More capacity means longer runtime before the next charge.
| Capacity Range | Category | Typical Applications |
| 1500 – 2000mAh | Low capacity | Compact devices, lower-drain use |
| 2000 – 2600mAh | Standard | Power tools, flashlights |
| 2600 – 3000mAh | High capacity | E-bikes, DIY battery packs |
| 3000 – 3600mAh | Ultra-high | Long-runtime devices, EVs |
Fake Capacity Warning: If you see a listing claiming 5000 mAh, 6000 mAh, or 9900 mAh for an 18650 cell, it's fake. The physical limit for current 18650 chemistry is around 3600 mAh. Anything above that is false advertising. Stick to Grade A cells from verified brands.
Most people focus on capacity and ignore the C-rating — and that's a mistake, especially for high-drain applications like power tools or drones.
The C-rating tells you how fast a cell can safely discharge relative to its capacity. A 1C discharge means the full capacity is drained in one hour. A 10C discharge drains it ten times faster.
Example: A 3000 mAh cell rated at 10C can safely deliver 30A of continuous current. Pushing a cell beyond its rated C-rating leads to heat buildup, shortened lifespan, or in extreme cases, cell failure.
| Use Case | Typical C-Rating Needed | Why |
| Flashlights / Low-drain devices | 1C – 3C | Slow, steady current draw |
| Power banks / Laptops | 1C – 2C | Low discharge, long runtime is the priority |
| Power tools / E-bikes | 5C – 15C | High burst current required |
| Drones / Performance packs | 15C – 30C+ | Extreme peak discharge needed |
Rule of thumb: For high-power applications, don't just grab the highest mAh cell. Pick one with the correct C-rating for your load. A high-capacity cell with a low C-rating will overheat and degrade quickly under heavy use.
This distinction is critical for both safety and compatibility:
| Feature | Protected | Unprotected |
| Safety circuit (PCB) | Yes — built in | No — must rely on external BMS |
| Length | 67–68 mm | 65 mm (standard) |
| Best for | Flashlights, single-cell devices | DIY packs with external BMS |
| Over-charge protection | Built-in | External BMS required |
| Over-discharge protection | Built-in | External BMS required |
| Short-circuit protection | Built-in | External BMS required |
| Cost | Slightly higher | Lower |
Bottom line: If you're building a battery pack with a BMS, unprotected cells are the standard choice — they're shorter, cheaper, and easier to spot-weld. If you're using a cell in a standalone device, go with a protected cell.
Beyond voltage and capacity, the physical shape of the positive terminal matters — especially when fitting cells into devices or building packs.
| Type | Appearance | Best For |
| Flat Top | Positive end is nearly flat (slightly raised) | Spot-welded battery packs, series/parallel configurations |
| Button Top | Positive end has a protruding nipple, like a AA battery | Flashlights, devices requiring direct spring contact |
Important: Some devices specifically require button tops to make proper contact with their spring connectors. Flat tops may not complete the circuit in those cases. Always check your device documentation before ordering.
For DIY battery pack builders: Flat top cells are the standard choice since you spot-weld them directly to nickel strips, eliminating the need for spring contact.
What is the maximum real capacity of an 18650 battery?
As of 2025–2026, the maximum verified capacity for a genuine 18650 cell is approximately 3600 mAh. Any listing claiming 5000 mAh or higher is selling fake or mislabeled cells. Always buy from verified suppliers with Grade A inventory.
How can I spot a fake 18650 cell?
Watch for these red flags: capacity claims above 3600 mAh, unusually light weight (genuine cells weigh 45–50 g), no brand markings or datasheet, and suspiciously low prices. Reputable suppliers provide test data and brand-verified stock.
How long do 18650 batteries last?
A high-quality 18650 cell typically delivers 300–500 cycles under standard conditions before dropping to 80% of its original capacity. High-performance cells like the Ampace JP30 can reach 1000+ cycles under optimal charge and discharge conditions.
Can I use AA batteries instead of 18650 cells?
No. AA batteries operate at 1.5V and measure approximately 14 mm × 50 mm. An 18650 runs at 3.6–3.7V and is significantly larger at 18 mm × 65 mm. They are not interchangeable in any device.
Are 18650 cells suitable for DIY home energy storage?

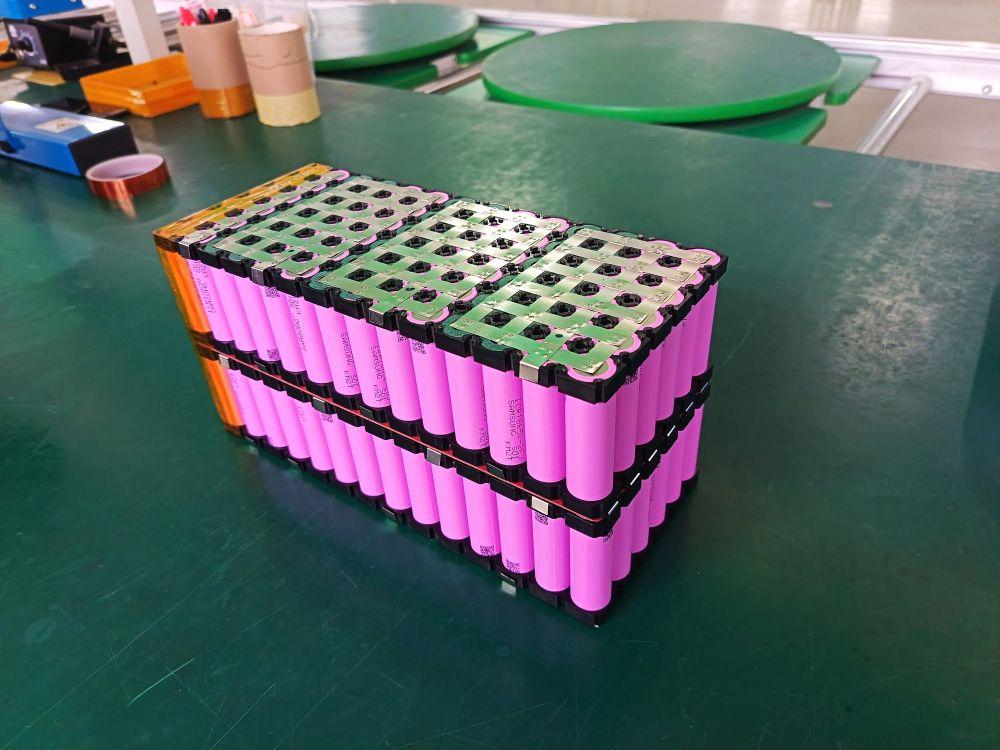

Yes, but proper planning is essential. 18650 cells are widely used in DIY powerwall builds and solar storage systems. You'll need to combine many cells in series and parallel configurations, along with a quality BMS to handle balancing, over-charge, and over-discharge protection. For large-scale storage, prismatic LiFePO4 cells are often a more practical choice due to their larger individual capacity and simpler assembly.
