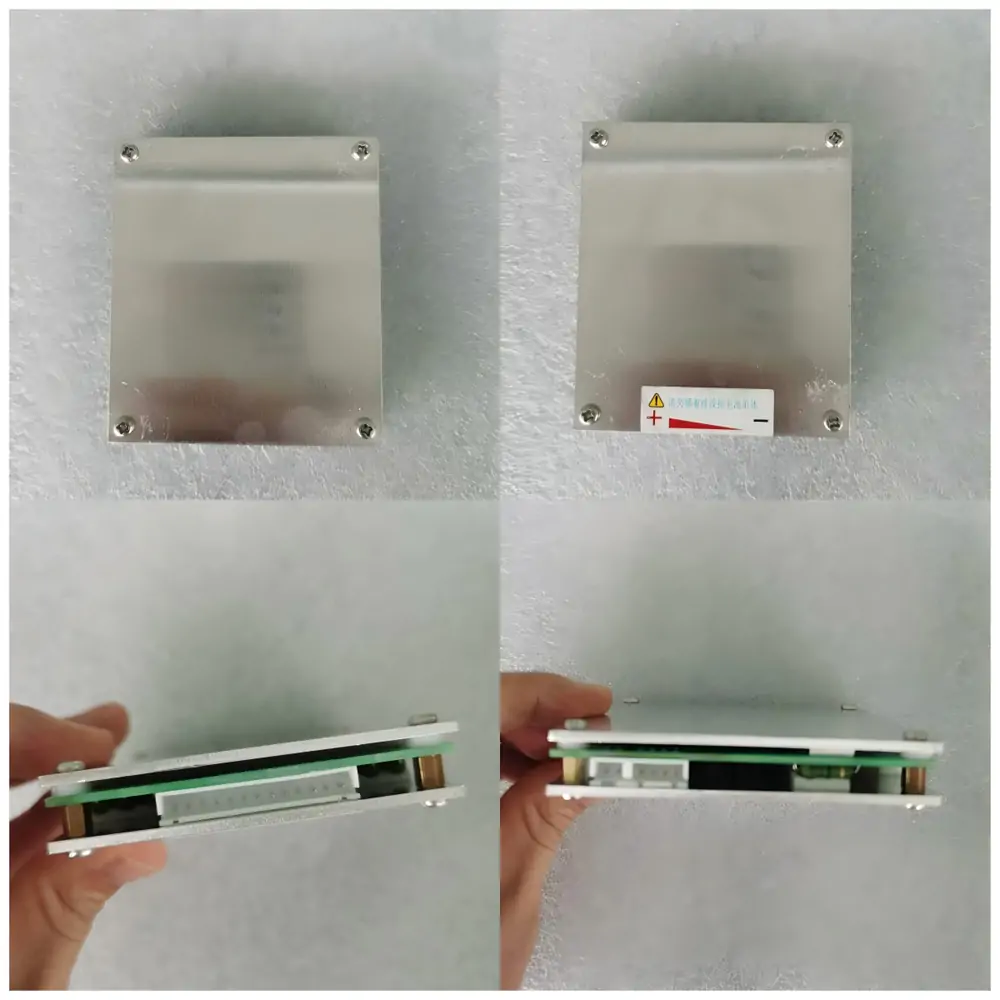

Recently, our customer ordered two sets of 4S–192S BMS from us and asked us to ship them to Europe. A 4S–192S BMS consists of one master BMS and 16 slave BMS units. One master BMS can control 16 slave BMS units.
The system provides cell overcharge protection, cell over-discharge protection, overcurrent protection, high-temperature protection, low-temperature protection, cell voltage difference protection, and battery failure protection.

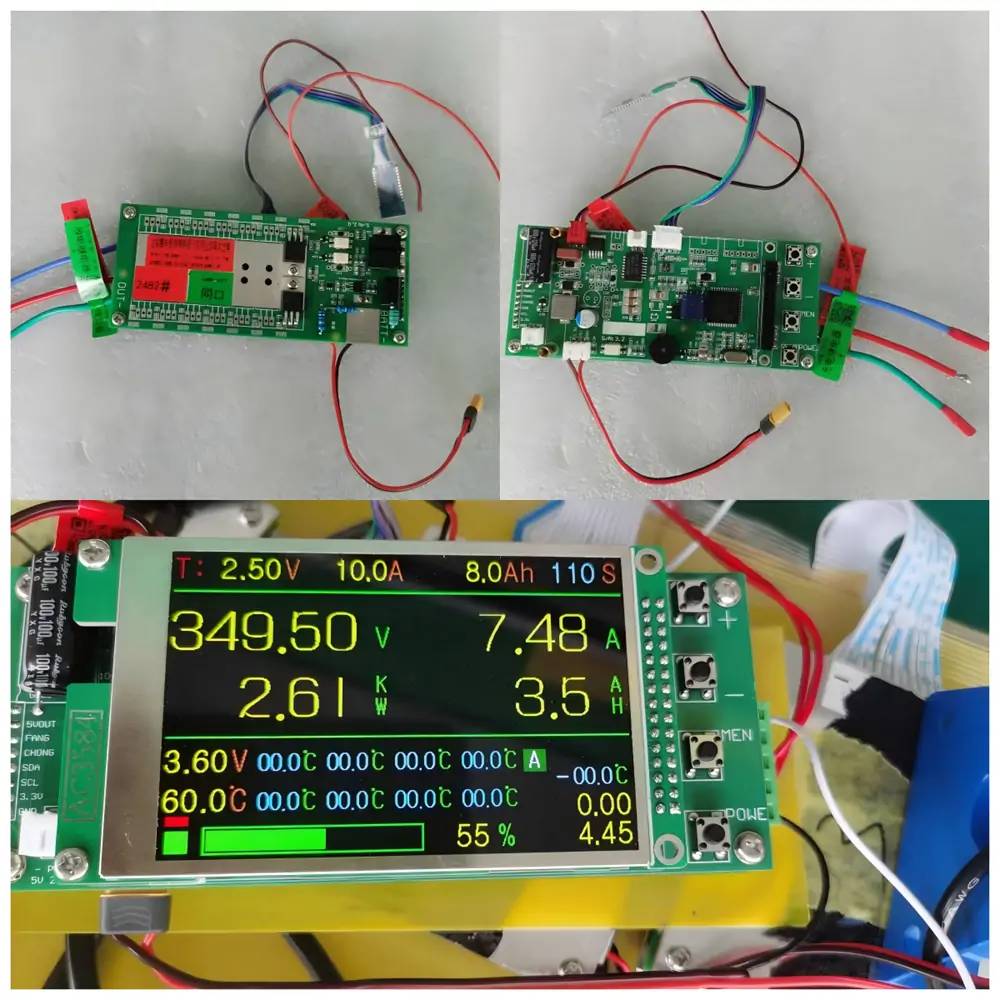

The master BMS is equipped with status indicator lights to show the system operating status without relying on the screen.
The BMS has a 3.5-inch IPS color display with an ultra-wide viewing angle, making the operating status clear at a glance.
Two relay configurations are available: common port and separate port. They use different control software, so the port type must be confirmed before purchase.
It supports RS232 TTL and CAN communication. An Android mobile app can monitor status and configure parameters of the master BMS via Bluetooth.

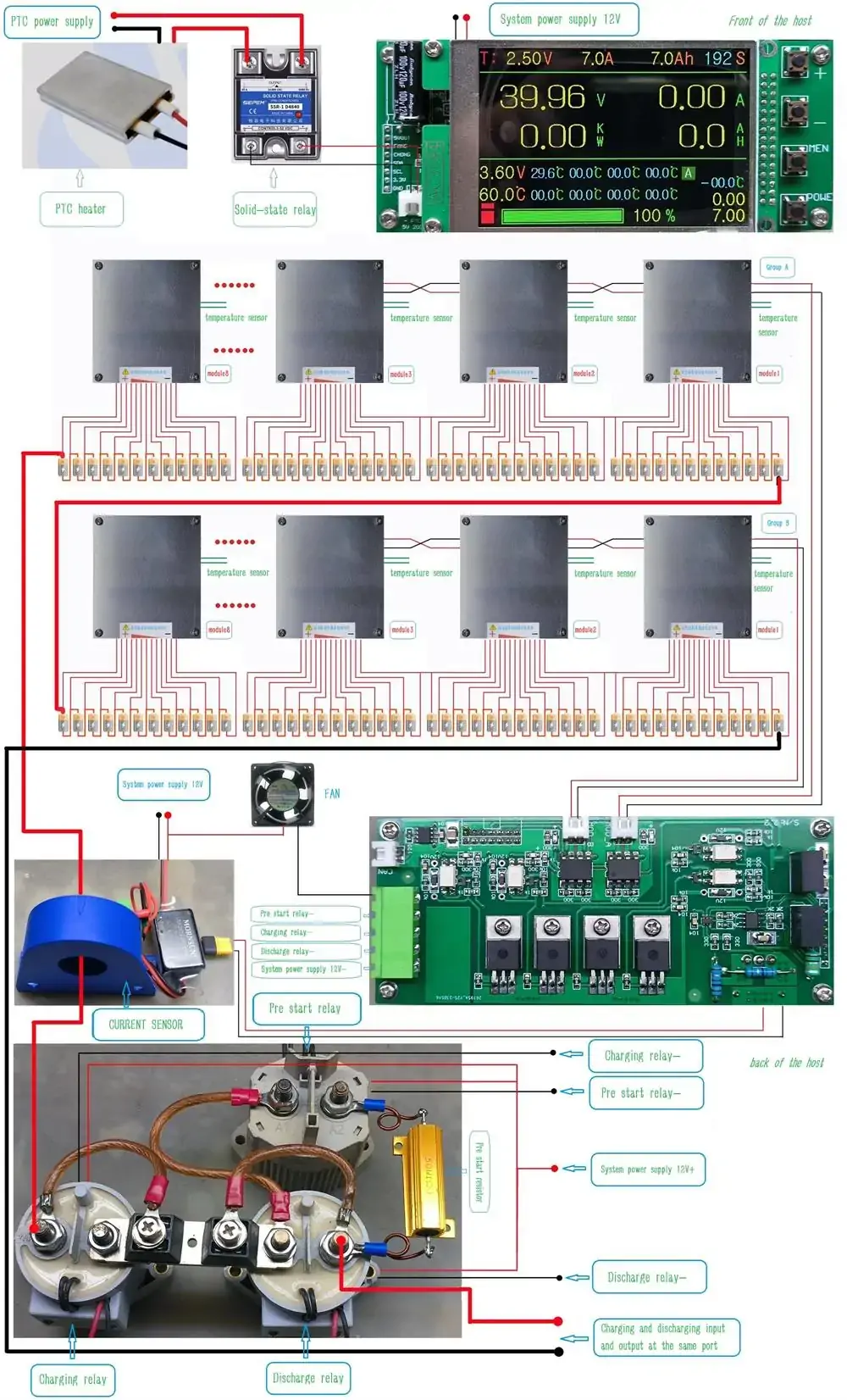

Please see the picture below for the wiring connection of the 192S common-port configuration.
For more functions and information, please feel free to contact us.
We packed the BMS in cartons with sponge protection.
The BMS units have been shipped by air with special packaging, and our customer should receive them by the end of this week.
