Battery Energy Storage Systems (BESS) are a crucial component of the global transition towards a sustainable energy future. As renewable energy sources become increasingly prevalent, the need for efficient and reliable energy storage solutions has never been more critical. This short guide will delve into the details of battery energy storage system design, covering aspects from fundamental components to advanced considerations for optimal performance and integration with renewable energy sources. Follow us on the journey to BESS!

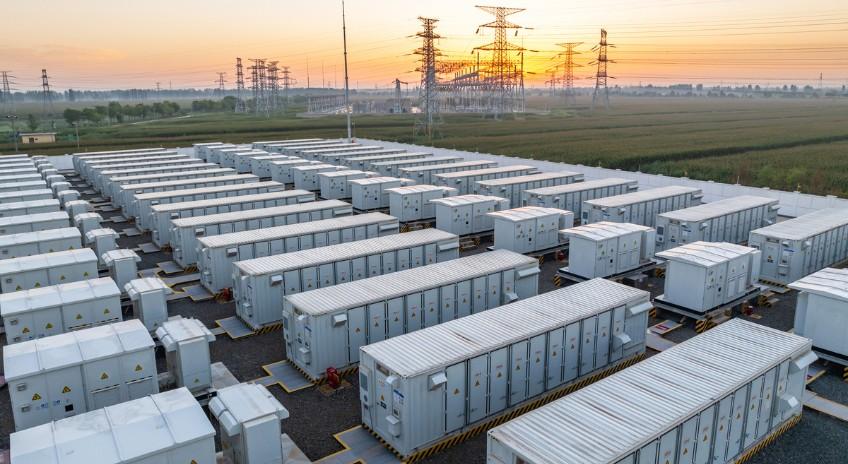

A battery energy storage system is a complex arrangement of components designed to store electrical energy in chemical form and convert it back to electricity when needed. The battery pack design must be performance- and efficiency-oriented, as these storage systems are vital in managing the intermittent nature of renewable energy generation and providing grid support to ensure a stable power supply.
Battery Modules: The heart of any BESS, battery modules store electrical energy in chemical form. The choice of battery technology is crucial and depends on factors such as energy density, power density, cycle life, and cost.
Power Conversion System (PCS): This component converts the direct current (DC) from the batteries to alternating current (AC) for grid connection or use in electrical systems, and vice versa for charging.
Energy Management System (EMS): The EMS oversees the operation of the entire BESS, optimizing energy flow, monitoring performance, and ensuring safe operation.
Battery Management System (BMS): Working closely with the EMS, the BMS monitors and controls individual battery cells or modules, ensuring optimal operating temperatures and preventing overcharging or deep discharging.
Thermal Management System: This system maintains the batteries within their optimal operating temperature range, which is crucial for performance and longevity.
Safety Systems: Including fire suppression systems and various protection devices, these components ensure the safe operation of the BESS.
Grid Connection Equipment: For grid-tied systems, this includes transformers and switchgear necessary for connecting to the power grid.
Choosing the right battery technology is fundamental to the success of a BESS. Several options are available, each with its own strengths and weaknesses:
Lithium-Ion Batteries: Lithium-ion batteries, particularly lithium iron phosphate (LiFePO4) variants, have become the go-to choice for many BESS applications due to their high energy density, excellent cycle life, and improving cost-effectiveness. They offer a good balance of power and energy.
Lead-Acid Batteries: While less energy-dense than lithium-ion, lead-acid batteries remain a cost-effective option for certain applications, especially where space is not a constraint and lower cycle life is acceptable.
Flow Batteries: Flow batteries, which store energy in liquid electrolytes, offer the advantage of decoupled power and energy ratings, making them suitable for long-duration storage. However, they typically have lower round-trip efficiency.
Other Emerging Technologies: Research is ongoing into various other battery technologies, including sodium-ion, solid-state, and metal-air batteries, which may offer significant advantages in the future.
Designing a BESS involves careful consideration of various factors to ensure it meets specific application needs while operating safely and efficiently.
Defining System Requirements: The first step is to clearly define requirements such as Energy Storage Capacity, Power Rating, Discharge Duration, Cycle Life, Response Time, and Round-Trip Efficiency.
Sizing the Battery System: This involves determining the number of battery modules needed, with the power-to-energy ratio being a crucial consideration.
Designing the Power Conversion System: The PCS must be sized to handle maximum power output and designed for high efficiency, considering factors like AC/DC conversion efficiency and harmonic distortion.
Battery Energy Management System Design: The EMS, as the brain of the system, is responsible for functions like monitoring energy flow, implementing charge/discharge strategies, and interfacing with external systems.
Battery Management System Design: The BMS ensures the safe and optimal operation of battery modules by monitoring cell voltages/temperatures, balancing charge levels, and estimating state of charge and health.
Thermal Management System Design: This system must keep batteries within their optimal temperature range, remove heat, maintain temperature uniformity, and operate efficiently. Fortunately, heat exchanger design can be assisted by both classic simulation and AI technologies.
Safety System Design: Paramount in design, key systems include fire detection/suppression, ventilation, electrical protection, and emergency shutdown.
Grid Connection Design: For grid-tied systems, proper design is crucial, including transformer sizing, switchgear design, grid synchronization, and compliance with standards.
A primary application of BESS is integration with renewables like solar and wind power, helping to manage their intermittent nature.
Solar Power Integration: This involves sizing the BESS to store excess solar energy, designing the EMS to optimize self-consumption, and considering DC-coupled systems for higher efficiency.
Wind Energy Integration: The BESS design should handle the variable nature of wind power, storing energy during high-wind periods. Advanced forecasting in the EMS is beneficial.
BESS can provide valuable grid services:
Frequency Regulation: BESS can respond rapidly to grid frequency deviations. Design requires high power capability and fast response times.
Voltage Support: BESS can help maintain grid voltage within limits; the PCS must be designed accordingly.
Peak Shaving: Discharging during high demand reduces peak grid load. The system must be sized appropriately.
Backup Power: For power outages, BESS can provide backup to critical loads, requiring appropriate capacity and islanding capability.
Effective monitoring and control are essential for reliable BESS operation.
SCADA Systems: Provide overall monitoring, remote control, data logging, and alarm management.
Predictive Maintenance: Involves continuous monitoring and using machine learning to predict issues and schedule maintenance proactively.
The economic viability of a BESS project depends on various factors.
Capital Costs: Initial investment including battery modules, PCS, balance of system components, and installation.
Operating Costs: Ongoing costs like maintenance, replacement, energy losses, and auxiliary power consumption.
Revenue Streams: Potential revenues from energy arbitrage, ancillary services, demand charge reduction, and increased renewable self-consumption.
Lifecycle Cost Analysis: A comprehensive analysis should consider all costs and revenues over the project's lifetime, including disposal.
BESS projects must comply with regulations and environmental considerations.
Grid Codes and Standards: Compliance with standards like IEEE 1547, IEC 62619, and UL 9540 is crucial.
Environmental Impact: Consider the lifecycle carbon footprint, and the recycling/disposal of batteries.
Permitting and Zoning: Obtain necessary permits related to building, electrical, fire safety, and environmental assessments.
As technology advances, several trends are shaping the future of BESS design: advancements in battery chemistry, Vehicle-to-Grid (V2G) integration, the use of AI and Machine Learning for optimization, and the development of modular BESS designs for easier scaling.
Designing a Battery Energy Storage System is a complex task involving numerous factors, from battery technology choice to integration with renewables and the grid. By following the guidelines outlined in this article and staying abreast of technological advancements, engineers and project developers can create BESS that help drive our transition to a clean energy ecosystem. The future of energy is undoubtedly intertwined with the development of advanced battery energy storage systems
