A customer from Germany submitted an inquiry through our company's website, wanting to customize a battery pack according to their needs.
They wanted a potential battery solution for the I-shuttle machine, an internal logistics product.
This was the customer's initial core requirements for the battery pack:
Battery Type: Lithium Iron Phosphate (LFP)
Nominal Voltage: 48V
Capacity: Minimum 1500 Wh
Cycle Life: At least 6000 cycles
Continuous Discharge Current: Minimum 30A
Dimensions: Maximum of 400 x 265 x 180 mm (L x W x H)
Weight: Maximum of 30 kg
IP Rating: Minimum IP54
Momentary Discharge (<100 ms) (optional): Minimum 250A
Charging Current: Minimum 40A
The customer has made very clear requirements for the type, voltage, capacity, size, weight, charge and discharge currents, waterproof level, etc. of the battery pack. This is exactly the information we need from the customer, because it enables us to provide a more accurate battery pack customization plan that better fits the customer's application scenario.
Our company's technicians designed a battery pack based on the requirements provided by the customer.

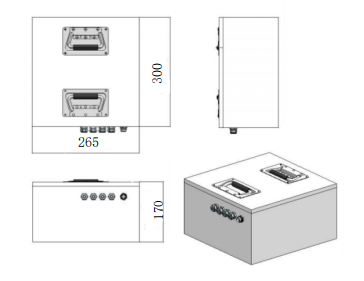

This is the design drawing of the battery pack.
This is a 48V 34Ah lithium iron phosphate battery pack, which uses 4.3Ah lithium iron phosphate cylindrical cells inside, and the series-parallel connection method is 15S8P. The full charge voltage is 54.75V, the maximum continuous charging current is 35A, the maximum continuous discharge current is 50A, it uses CAN communication, weighs about 15 kg, and uses 1.5-mm-thick carbon steel plates.
The battery pack solution designed by the technicians met all the requirements raised by the customer, and the customer was very satisfied with the lithium iron phosphate battery pack.
If you have any battery pack customization needs, please feel free to contact us, and we will provide you with the perfect lithium battery pack solution.
