Recently, we designed 5 different 12V battery packs for surveillance cameras.
It’s made of BYD 4680 3.2V 15Ah LiFePO4 cells in a 4S2P configuration.
Maximum Continuous Charging Current: 30A
Maximum Continuous Discharging Current: 5A
Weight: Approximately 2.9 kg

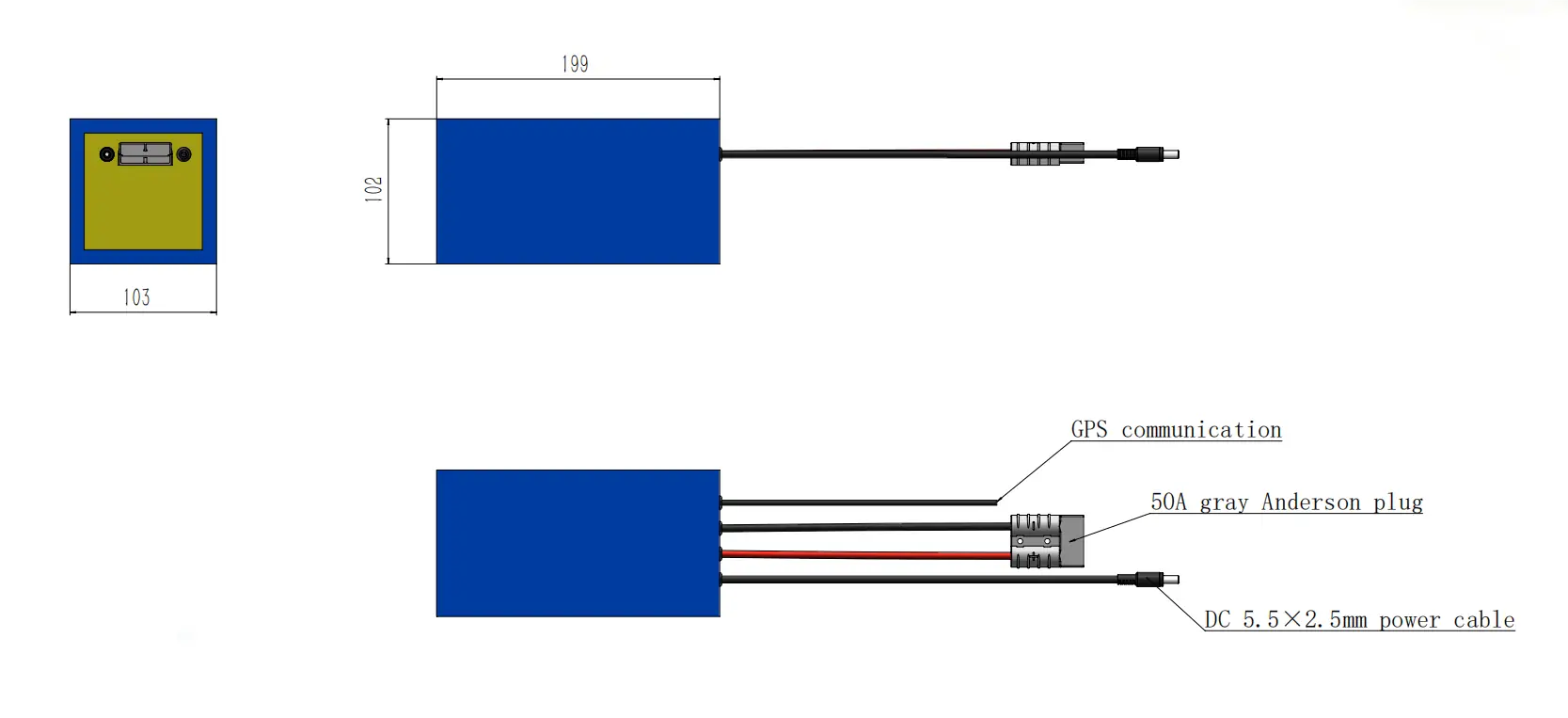

The dimensions are as shown in the drawing below:
It’s made of CALB 3.67V 58Ah NMC cells in a 4S1P configuration.
Maximum Continuous Charging Current: 29A
Maximum Continuous Discharging Current: 5A
Weight: Approximately 4.2 kg
The dimensions are as shown in the drawing below:
It’s made of CALB 3.2V 72Ah LiFePO4 cells in a 4S1P configuration.
Maximum Continuous Charging Current: 36A
Maximum Continuous Discharging Current: 5A
Weight: Approximately 7.8 kg
The dimensions are as shown in the drawing below:
As our customer wanted a different form factor using the CALB 72Ah cells, we designed this flatter and thinner pack for him.
The dimensions are as shown in the drawing below:
It’s made of BYD 3.2V 21.6Ah LiFePO4 pouch cells in a 4S2P configuration.
Maximum Continuous Charging Current: 21.7A
Maximum Continuous Discharging Current: 5A
Weight: Approximately 3.5 kg
The dimensions are as shown in the drawing below:
All the battery packs are designed with GPS. It can help the customer to check the SOC of the battery modules easily, no matter how far away they are.
Our customer was satisfied with the solution and placed an order. Now we are producing the packs.
If you have any requirements, please feel free to contact us.
